Cnc Lathe TSUGAMI B012 AE

Year: 2010 Control system Siemens 810 D Turn table diameter 160 mm Turning lenght 450 mm Sloping bed YES Y axis NO Counterspindle NO Spindle bore 51 mm Milling head NO Driven Tools YES Number of tool positions (driven) 12/6 Bar loader Travel X-axis 160 mm Travel Z-axis 450 mm Spindle speed 1 - 5000 /min. Machine dimensions l x w x h 4228 x 3115 x 2153 mm Machine weight 3800 kg Machine in good condition.It has universal chuck, toolholder for knife, borer and driven tools 2 axial and 2 radial.

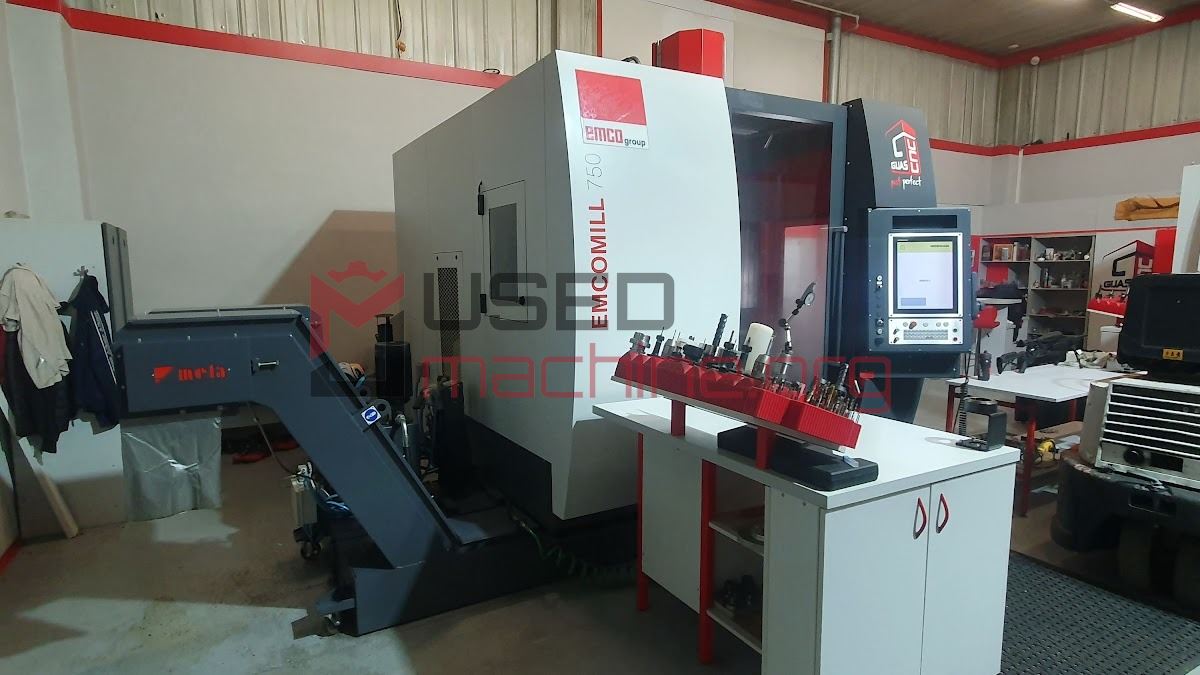

Year: 2019 Control system Heidenhain TNC 620 Clamping area of table 900x650 mm Travel X-axis 750 mm Travel Y-axis 610 mm Travel Z-axis 500 mm Spindle speed 50 - 12000 /min. Number of driven axes 3 Cooling through spindle YES Pressure of cooling 20 bar Spindle taper ISO 40 . Max. load of table 800 kg Tool magazine YES Number of positions in magazine 30 Rapid feed 30 m/min Main motor power 15 kW Machine weight 7900 kg Machine dimensions l x w x h 3350x2770x3060 mm The machine is in very good technical condition. Under power. It can be tested.

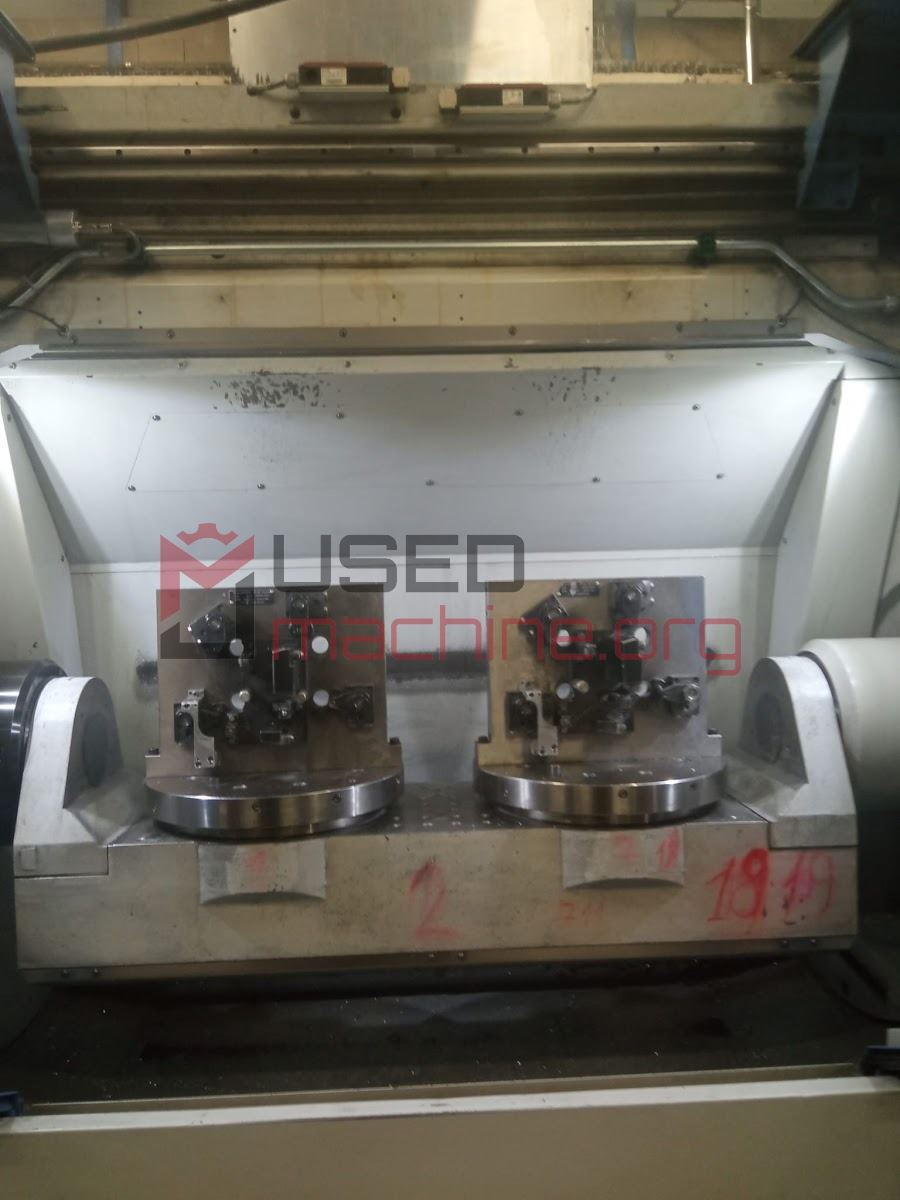

Year: 2015 Control system Siemens Sinumerik 840 D Clamping area of table 2X D 500 mm Travel X-axis 830 mm Travel Y-axis 630 mm Travel Z-axis 630 mm Spindle speed 0 - 20000 /min. Number of driven axes 5 Cooling through spindle NO Spindle taper HSK-A63 . Tool magazine YES Number of positions in magazine 2 x 30 Machine weight 18500 kg Machine dimensions l x w x h 7000x3200x3500 mm

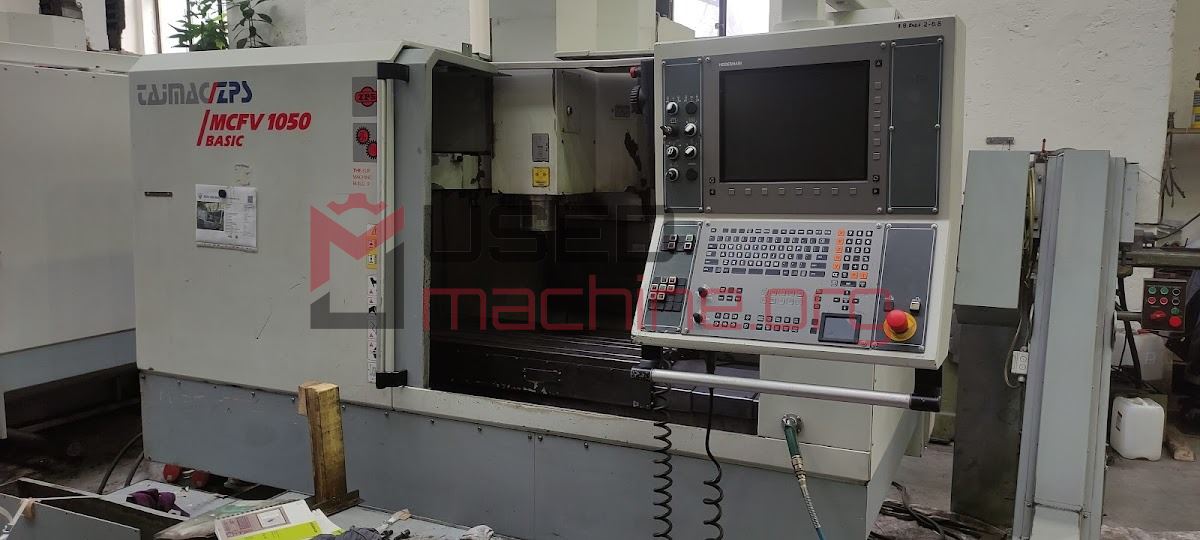

Year: 2007 Clamping area of table 1200 x 510 mm Travel X-axis 1020 mm Travel Y-axis 510 mm Travel Z-axis 525 mm Spindle speed 0 - 10000 /min. Number of driven axes 3 Cooling through spindle YES Spindle taper ISO 40 . Max. load of table 700 kg Number of positions in magazine 20 Main motor power 25 kW Machine dimensions l x w x h 2810 x 1895 x 2940 mm Machine weight 4800 kg Machine under the power.

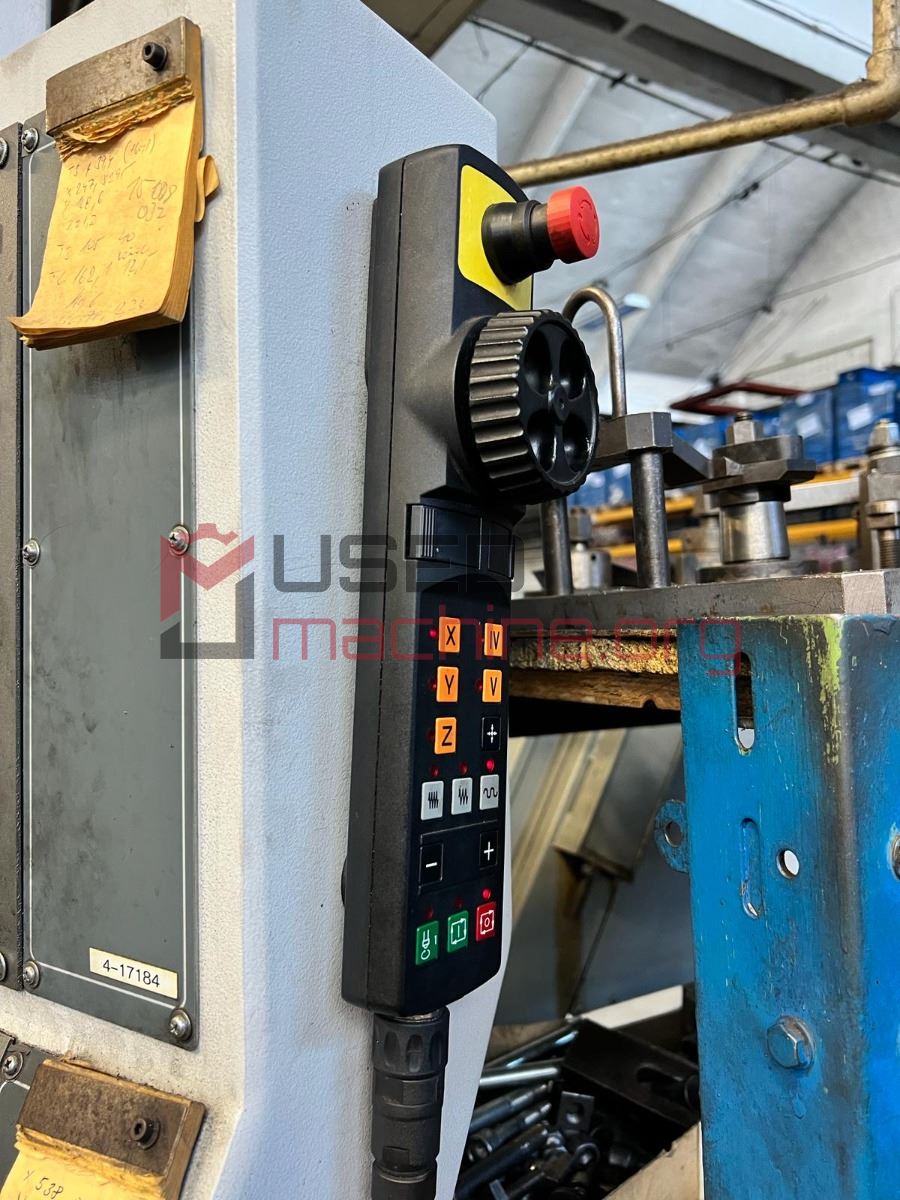

Year: 2007 Clamping area of table 1200 x 510 mm Travel X-axis 1020 mm Travel Y-axis 510 mm Travel Z-axis 525 mm Spindle speed 0 - 10000 /min. Number of driven axes 3 Cooling through spindle YES Spindle taper ISO 40 . Max. load of table 700 kg Number of positions in magazine 20 Main motor power 25 kW Machine dimensions l x w x h 2810 x 1895 x 2940 mm Machine weight 4800 kg Machine under the power in great condition. Chip conveyor. Coolant through the spindle. Probe. Handwheel.

Year: 2010 Control system Heidenhain TNC 530 Clamping area of table 1200x600 mm Travel X-axis 1020 mm Travel Y-axis 610 mm Travel Z-axis 610 mm Spindle speed 10 - 12000 /min. Number of driven axes 3 Cooling through spindle YES Pressure of cooling 20 bar Spindle taper SK 40 . Max. weight of workpiece 500 kg Main motor power 22 kW Rapid feed 40,40,36 m/min Tool magazine YES Number of positions in magazine 30 Machine weight 6970 kg Machine dimensions l x w x h 2920x2820x2860 mm The machine is in good technical condition, under power, after agreement is possible to test it.

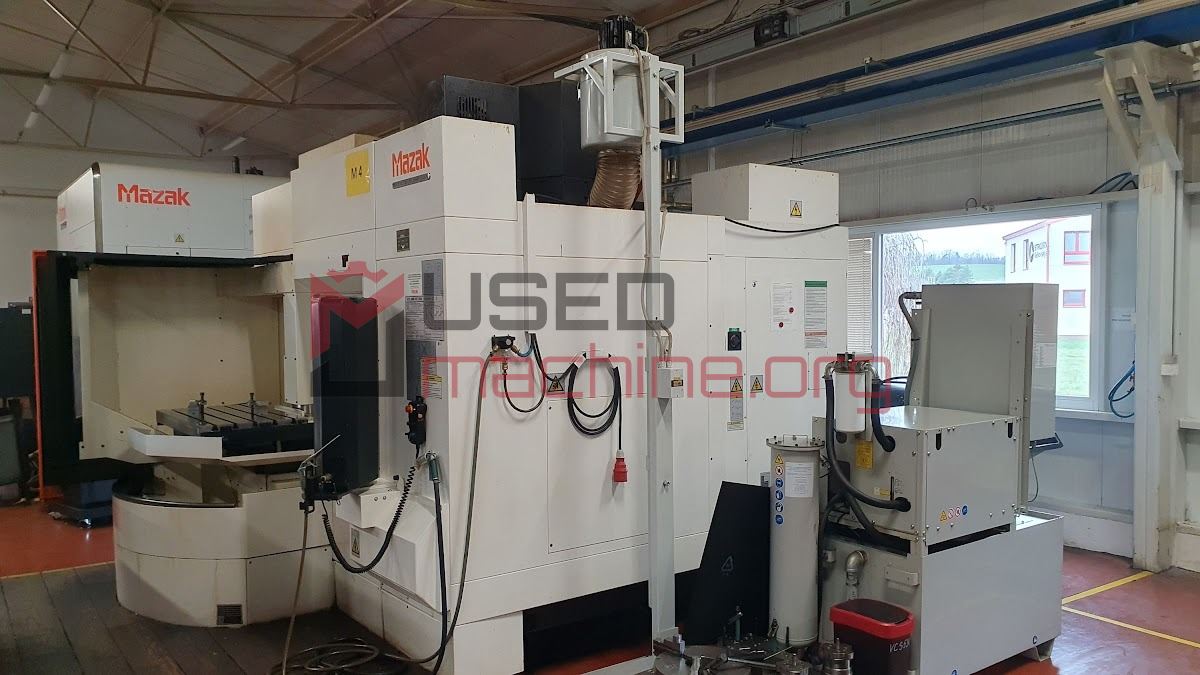

Year: 2015 Control system Mazatrol MATRIX 2 Clamping area of table 1300x550 mm Travel X-axis 1050 mm Travel Y-axis 530 mm Travel Z-axis 510 mm Spindle speed 10 - 12000 /min. Number of driven axes 3 Cooling through spindle YES Pressure of cooling 15 bar Spindle taper ISO 40 . Max. load of table 1200 kg Tool magazine YES Number of positions in magazine 30 Number of pallets 2 Machine weight 7700 kg The machine is in very good technical condition, under power, after agreement is possible to test it.

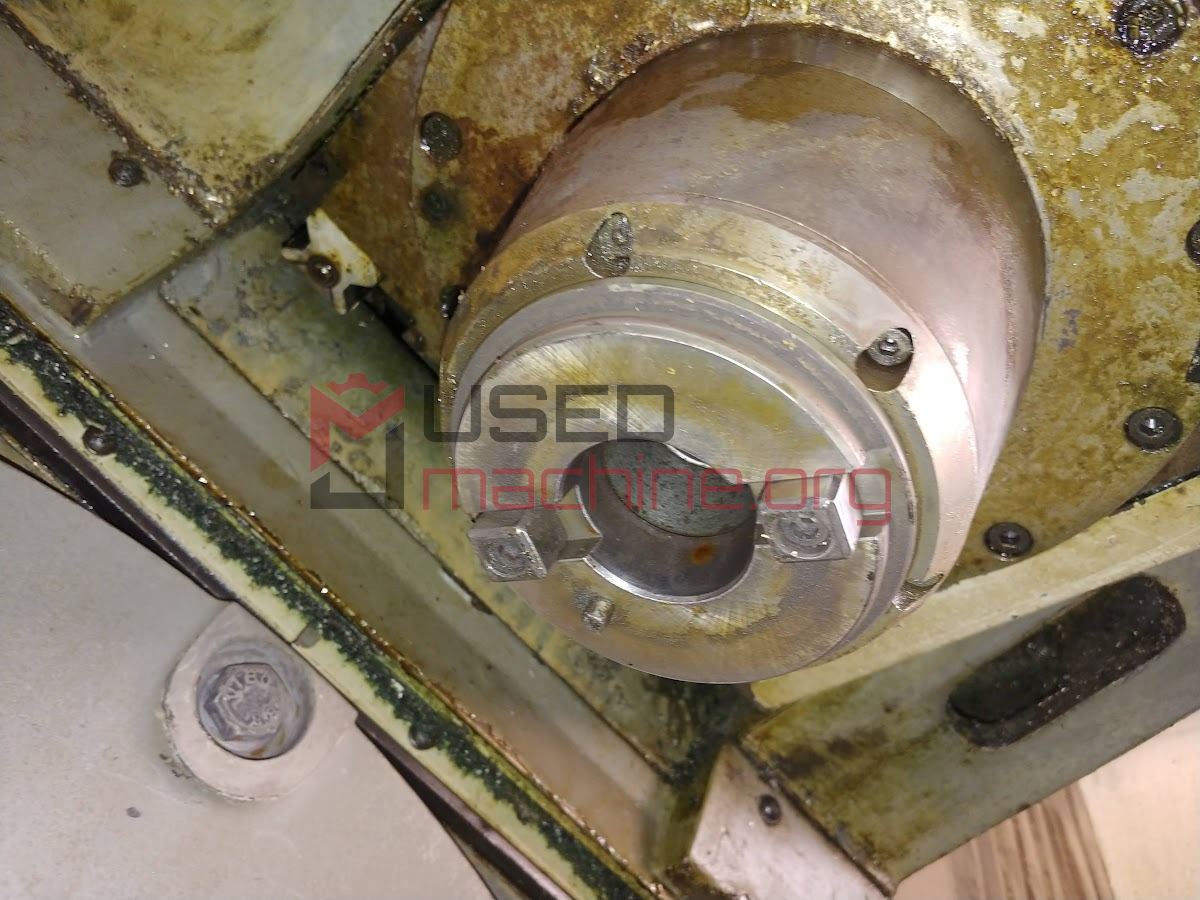

Year: 1999 Control system Heidenhain TNC 426 Clamping area of table 500 x 380 mm Travel X-axis 500 mm Travel Y-axis 420 mm Travel Z-axis 380 mm Spindle speed 0 - 10000 /min. Number of driven axes 5 Cooling through spindle NO Spindle taper SK 40 . Tool magazine YES Number of positions in magazine 16 Machine in good technical condition. Can be tested under power.

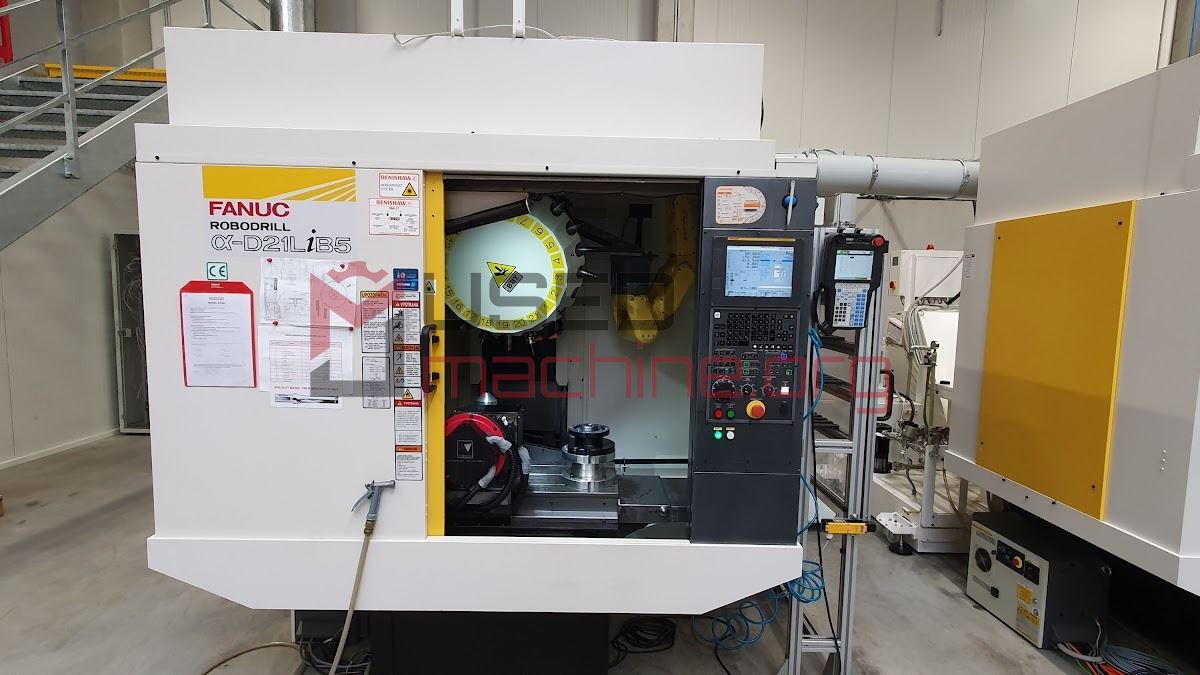

Year: 2017 Control system Fanuc 31i - B5 Clamping area of table 850x410 mm Travel X-axis 700 mm Travel Y-axis 400 mm Travel Z-axis 330 mm Spindle speed 0 - 24000 /min. Number of driven axes 5 Cooling through spindle YES Pressure of cooling 35 bar Spindle taper BBT30 . Rapid feed 54 m/min Main motor power 4,7/14,2 kW Max. load of table 300 kg Machine dimensions l x w x h 2100x2165x2800 mm Machine weight 2300 kg Tool magazine YES Number of positions in magazine 21 The machine is in excelent condition. Possible to test under power

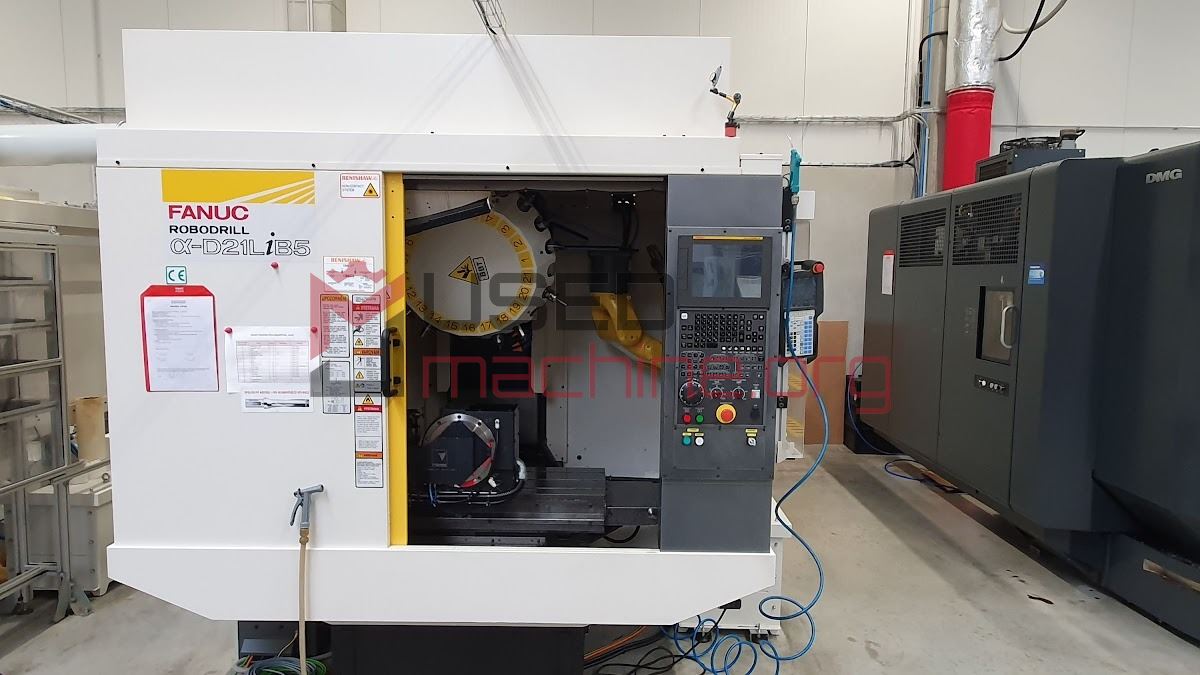

Year: 2018 Control system Fanuc 31i - B5 Clamping area of table 850x410 mm Travel X-axis 700 mm Travel Y-axis 400 mm Travel Z-axis 330 mm Spindle speed 0 - 24000 /min. Number of driven axes 5 Cooling through spindle YES Pressure of cooling 35 bar Spindle taper BBT30 . Rapid feed 54 m/min Main motor power 4,7/14,2 kW Max. load of table 300 kg Machine dimensions l x w x h 2100x2165x2800 mm Machine weight 2300 kg Tool magazine YES Number of positions in magazine 21 The machine is in excelent condition. Possible to test under power.
