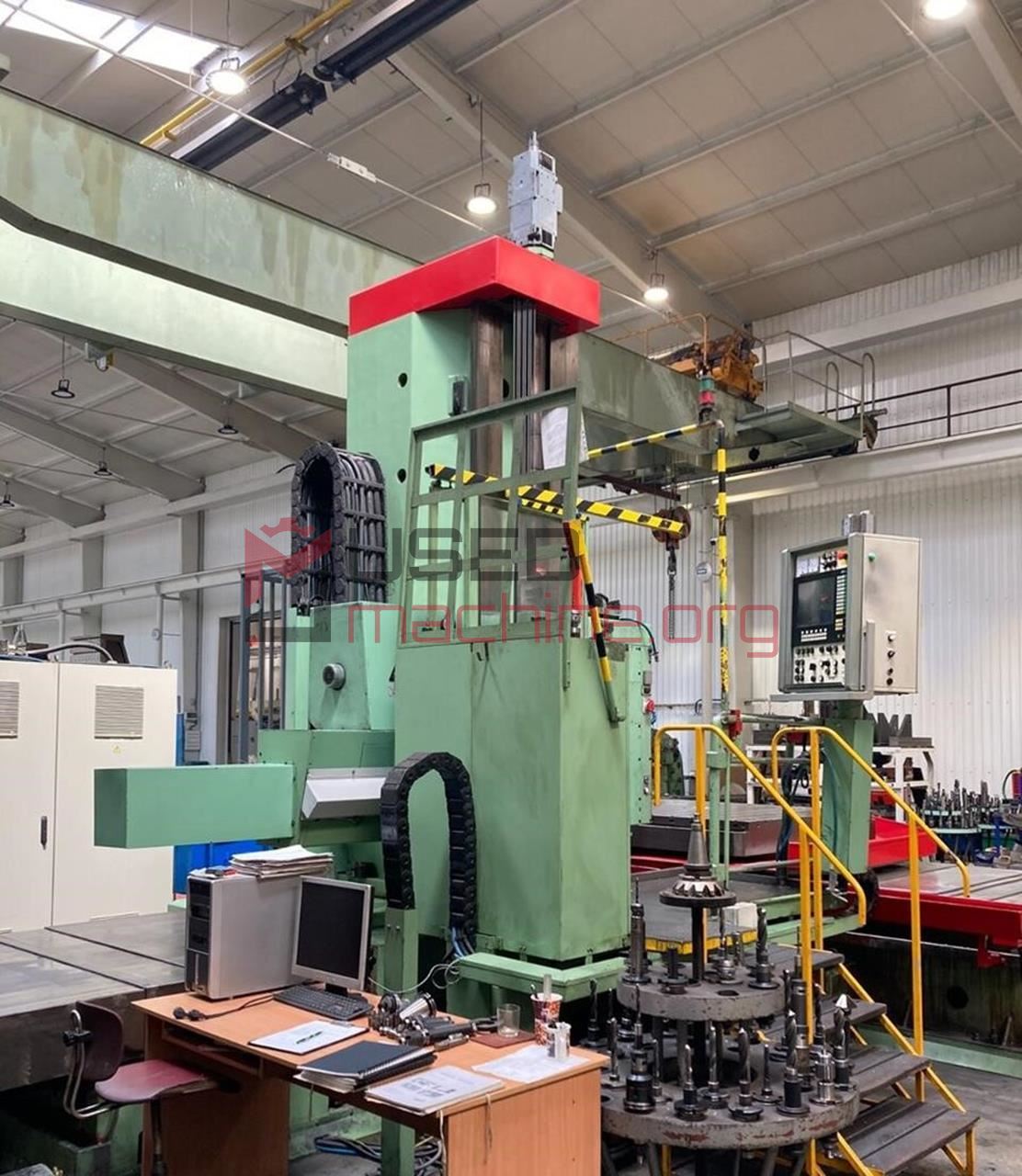

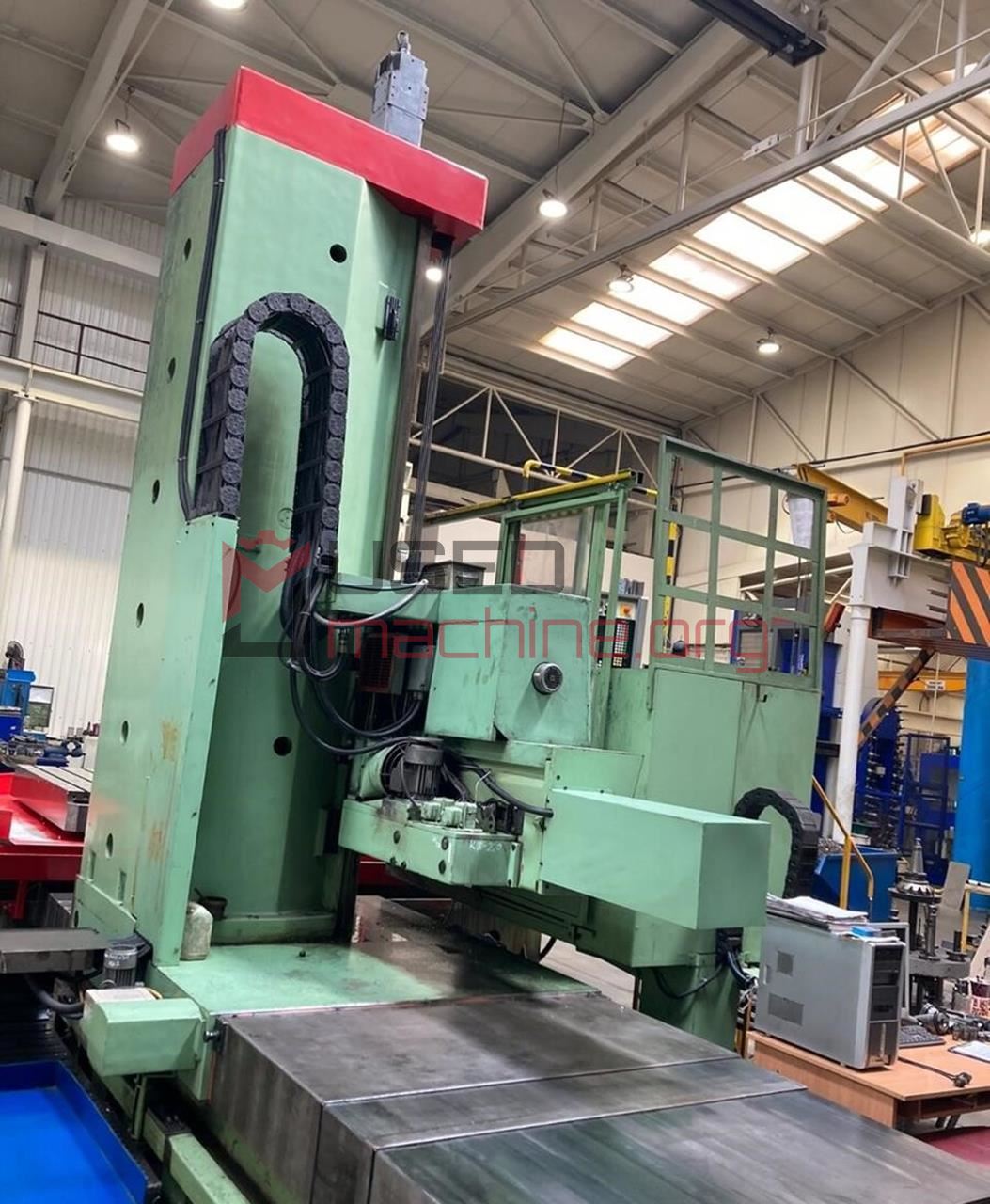

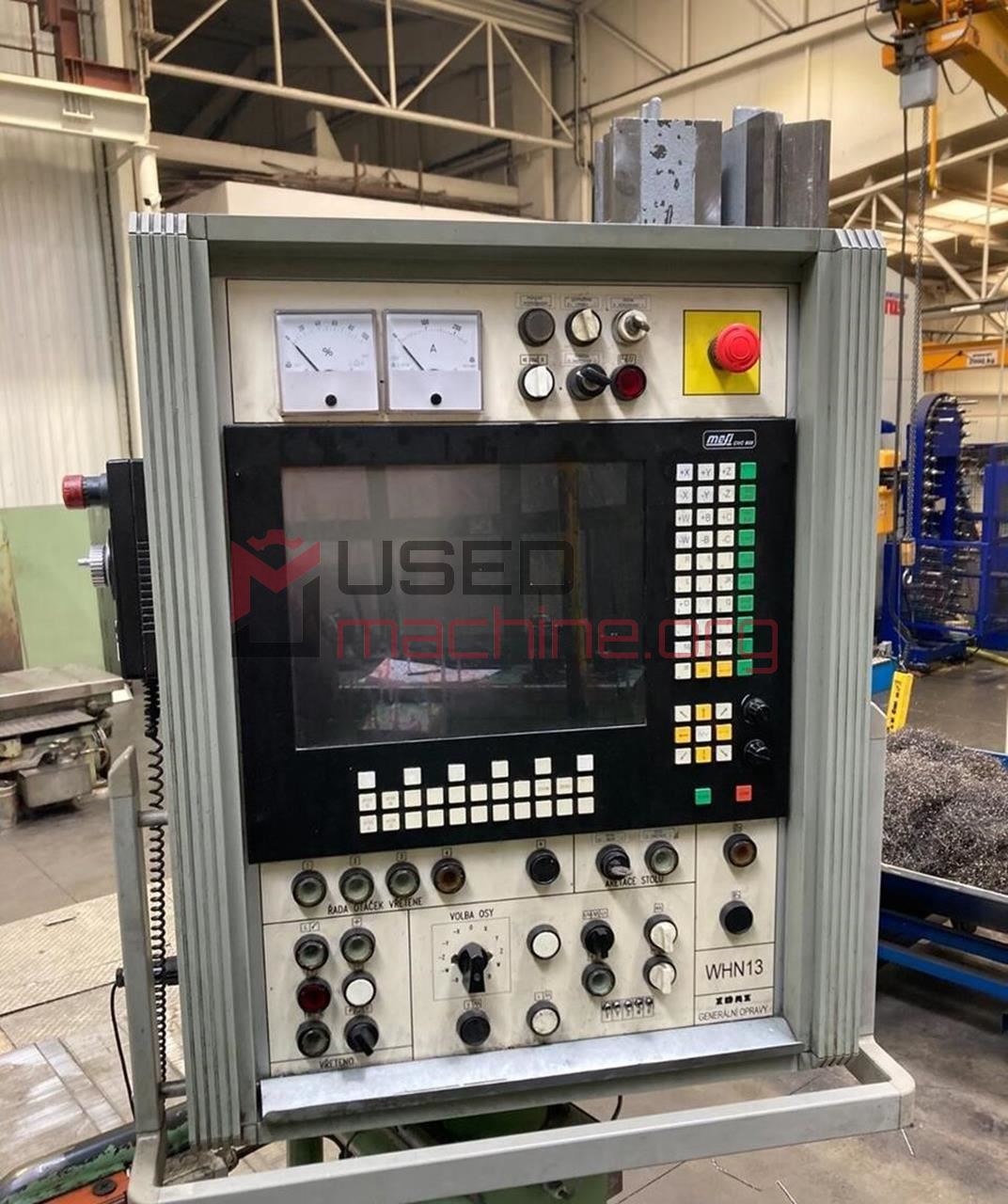

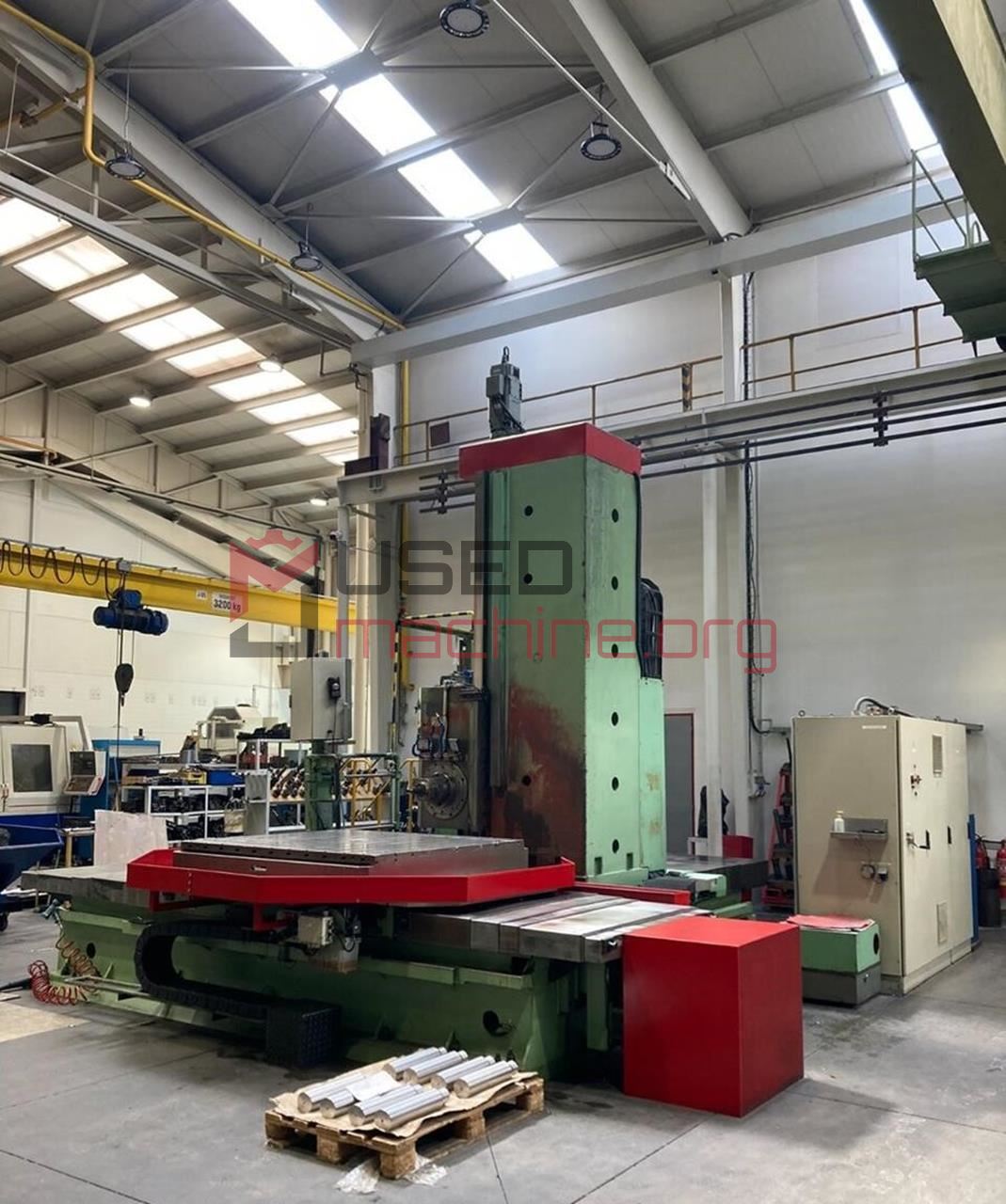

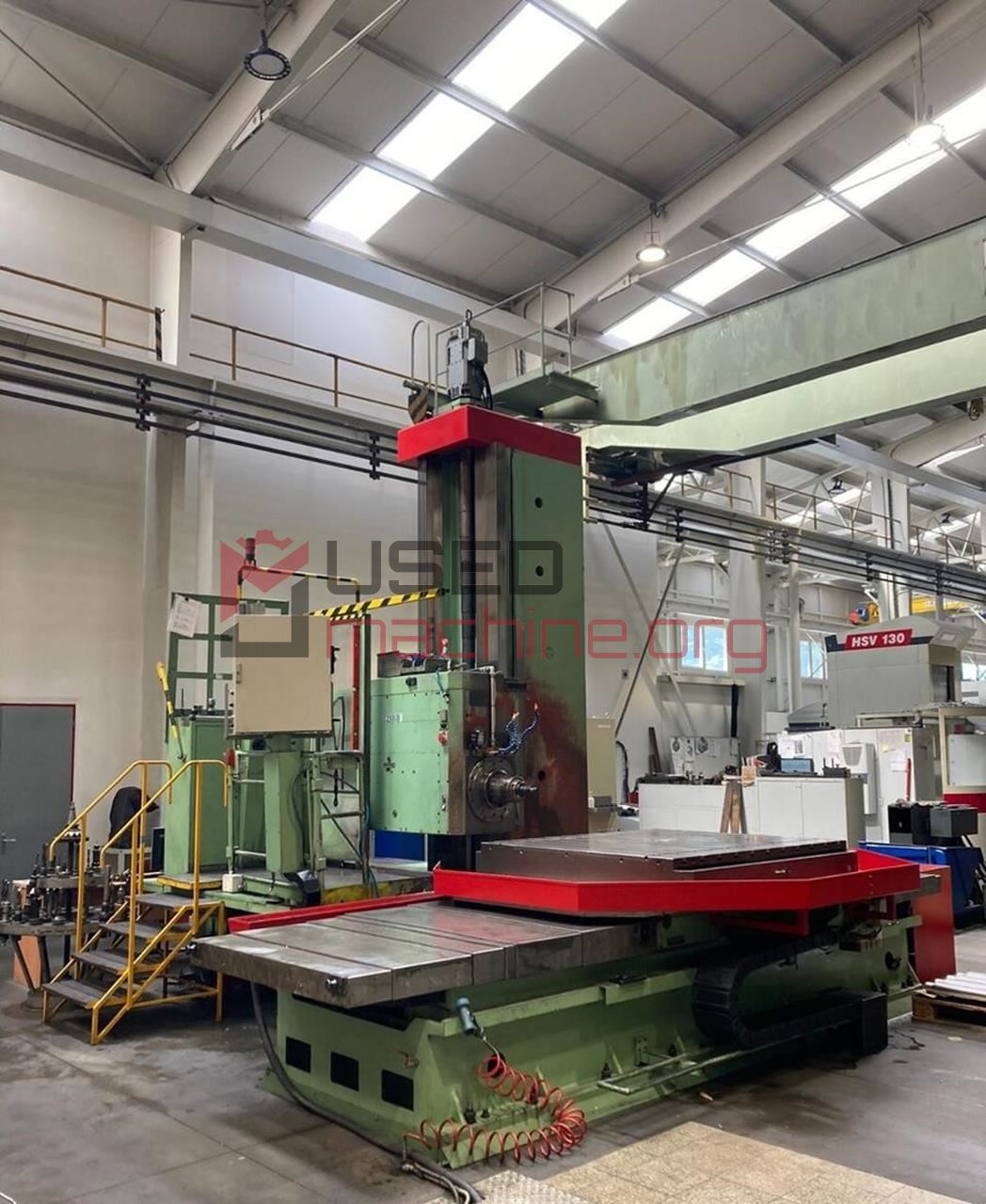

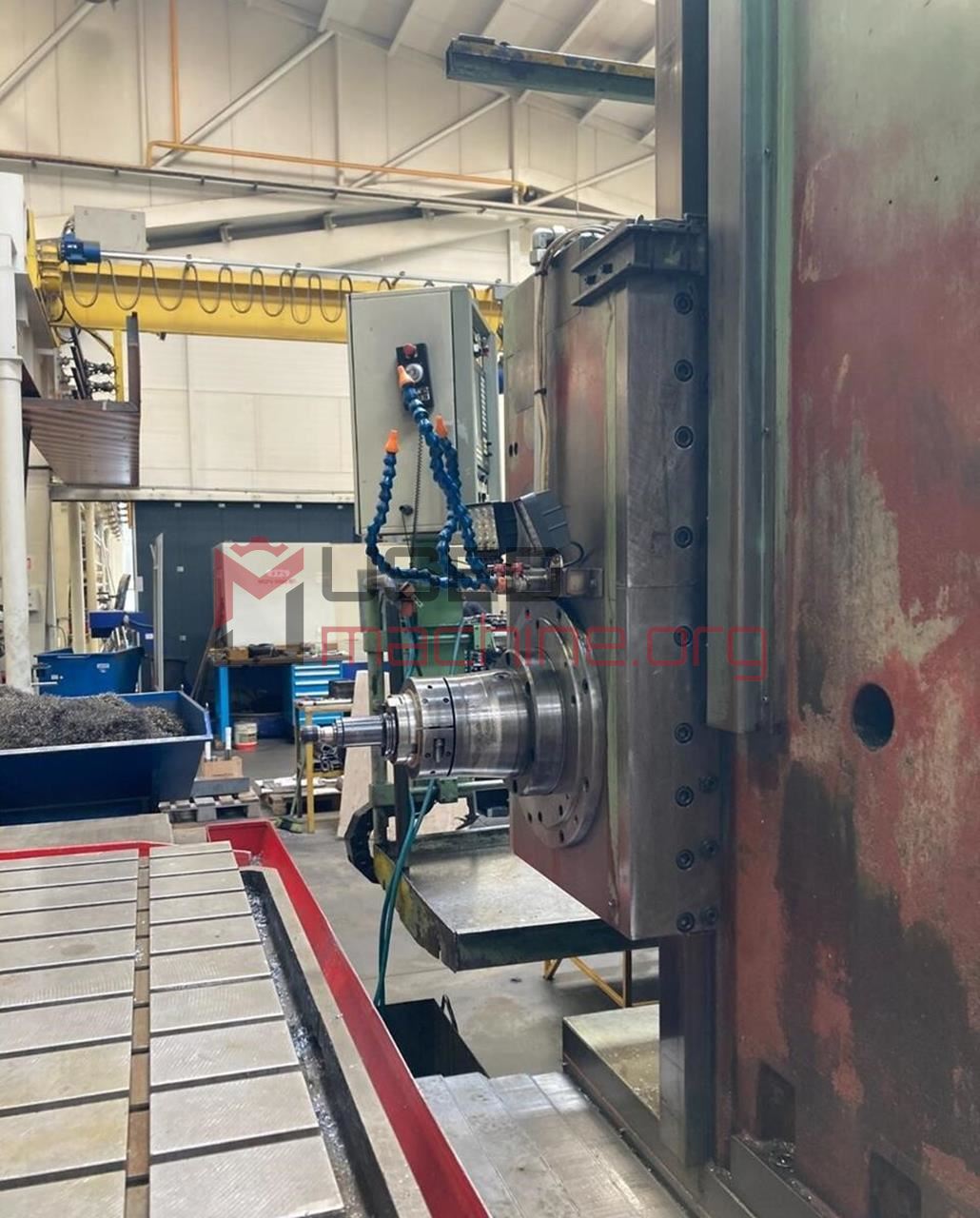

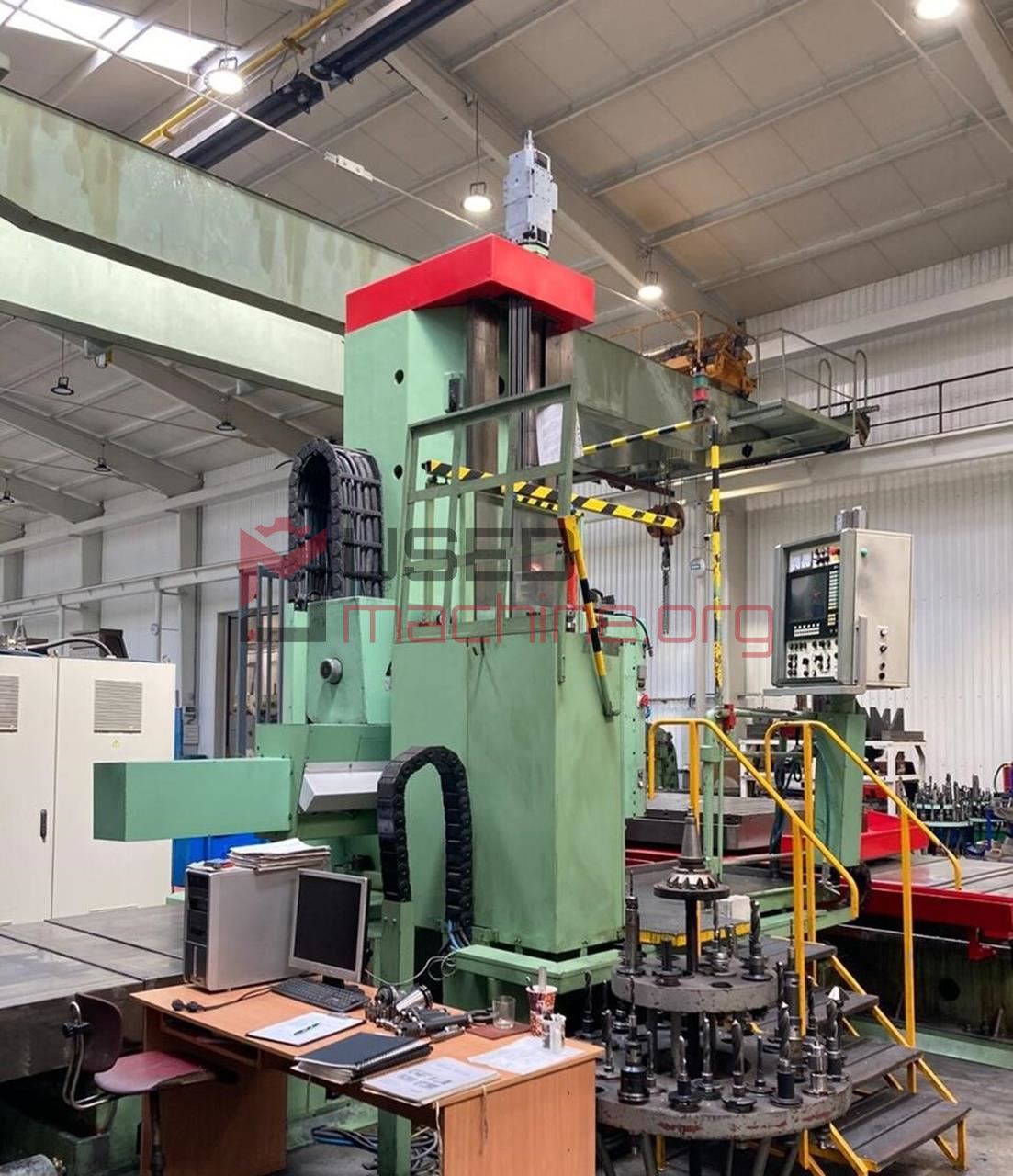

Table Boring Machine TOS WHN 13.4 A

Catalog No. : 8232Type: Twin 42Producer: GildemeisterMade in: 2002Characteristic: Control system: Siemens Sinumerik Total hours: 80654 h Hours on: 33758 h Maximum-turning length: 650 mm Turning diameter over bed (max): 250 mm Turning diameter over cross slide (max): 120 mm Maximum travel length in the X-axis: 300 mm Maximum travel length Z-axis: 650 mm Maximum spindle speed: 7000 1/min Length: 4770 mm Width: 2220 mm Height: 1950 mm Weight: 5500 kg Equipment: Live Tools Bar feeder

Catalog No. : 8208Type: W 200Producer: ŠKODAMade in: 1973Characteristic: Maximum rotary speed of the spindle: 3000 1/min X-Axis travels: 4000 mm Y-Axis travels: 3150 mm Z-Axis travels: 2000 mm W-Axis travels: 1600 mm Spindle diameter: 200 mm

Catalog No. : 8234Type: ES L6/8Producer: OKUMAMade in: 2007Characteristic: Control system: Fanuc OSP-U10L Total hours: 79600 h Hours on: 43351 h Maximum-turning length: 380 mm Maximum turning diameter: 200 mm Spindle bore: 53 mm Equipment: Technical books Chip conveyor Tool holders System backup Preparation for bar feeder Hand wheel

Catalog No. : 8225Type: U5-1520Producer: SpinnerMade in: 2012Characteristic: Control system: Siemens Length of the working table: 820 mm Width of the working table: 540 mm Number of axes: 5 pcs Block speed: 12000 1/min X-Axis travels: 1520 mm Y-Axis travels: 520 mm Z-Axis travels: 460 mm Diameter of the table: 560 mm

Catalog No. : 7734Type: VCS 530Producer: MAZAKMade in: 2015Characteristic: Control system: MAZATROL MATRIX 2 Total hours: 14494 h Hours on: 3097 h Length of the working table: 1300 mm Width of the working table: 550 mm Number of synchronous axles: 3 Maximum table load (evenly distributed): 1200 kg Number of stack positions: 30 Block speed: 10-1000 1/min X-Axis travels: 1050 mm Y-Axis travels: 530 mm Z-Axis travels: 510 mm Taper: ISO 40 Internal cooling: 15 bar Machine weight: 7700 kg Equipment: Tool probe Workpiece probe Oil mist separator Internal cooling Oil mist extraction Number of pallets: 2

Catalog No. : 8007Type: DMC 1035 V ECOLINEProducer: DMGMade in: 2012Characteristic: Control system: Siemens Sinumerick 840D Total hours: 52232 h Hours on: 23276 h Length of the working table: 1200 mm Width of the working table: 560 mm Number of stack positions: 30 Maximum rotary speed of the spindle: 8000 1/min Number of axies: 4 X-Axis travels: 1035 mm Y-Axis travels: 560 mm Z-Axis travels: 510 mm

Catalog No. : 7843Type: LFS12sProducer: OKUMAMade in: 2003Characteristic: Control system: OSP U-100L Maximum-turning length: 70 mm Turning diameter over bed (max): 200 mm Maximum spindle speed: 6000 1/min Rapid traverse X/Y/Z: 24 mm/min Length: 2500 mm Width: 2100 mm Height: 3100 mm Weight: 5000 kg Equipment: Portal stacker The machine is functional with a minor defect.

Inv. Num. : 7737Type: Alpha-T14 iDProduzent: FANUC RobodrillErzeugt: 2004Parametern: Steuerungssystem: Fanuc series 16i-MB Einschaltstunden: 23500 h Arbeitstischlänge: 750 mm Arbeitstischbreite: 380 mm Kegel: BT30

Catalog No. : 8070Type: Multiturn 3000Producer: ColchesterMade in: 2005Characteristic: Control system: FANUC Turning diameter over bed (max): 460 mm Turning diameter over cross slide (max): 270 mm Spindle bore: 78 mm Engine power: 11 kW Maximum rotary speed of the spindle: 2250 1/min Travels of X: 296 mm Travels Z: 1530 mm Equipment: Holders Suction

Catalog No. : 7587Type: GLS 150Producer: GoodwayMade in: 2013Characteristic: Control system: Fanuc Total hours: 17192 h Hours on: 10461 h Maximum-turning length: 500 mm Turning diameter over bed (max): 310 mm Maximum travel length in the X-axis: 180 mm Maximum feedrate in the Z axis: 520 mm Weight: 3200 kg Equipment: Collet
