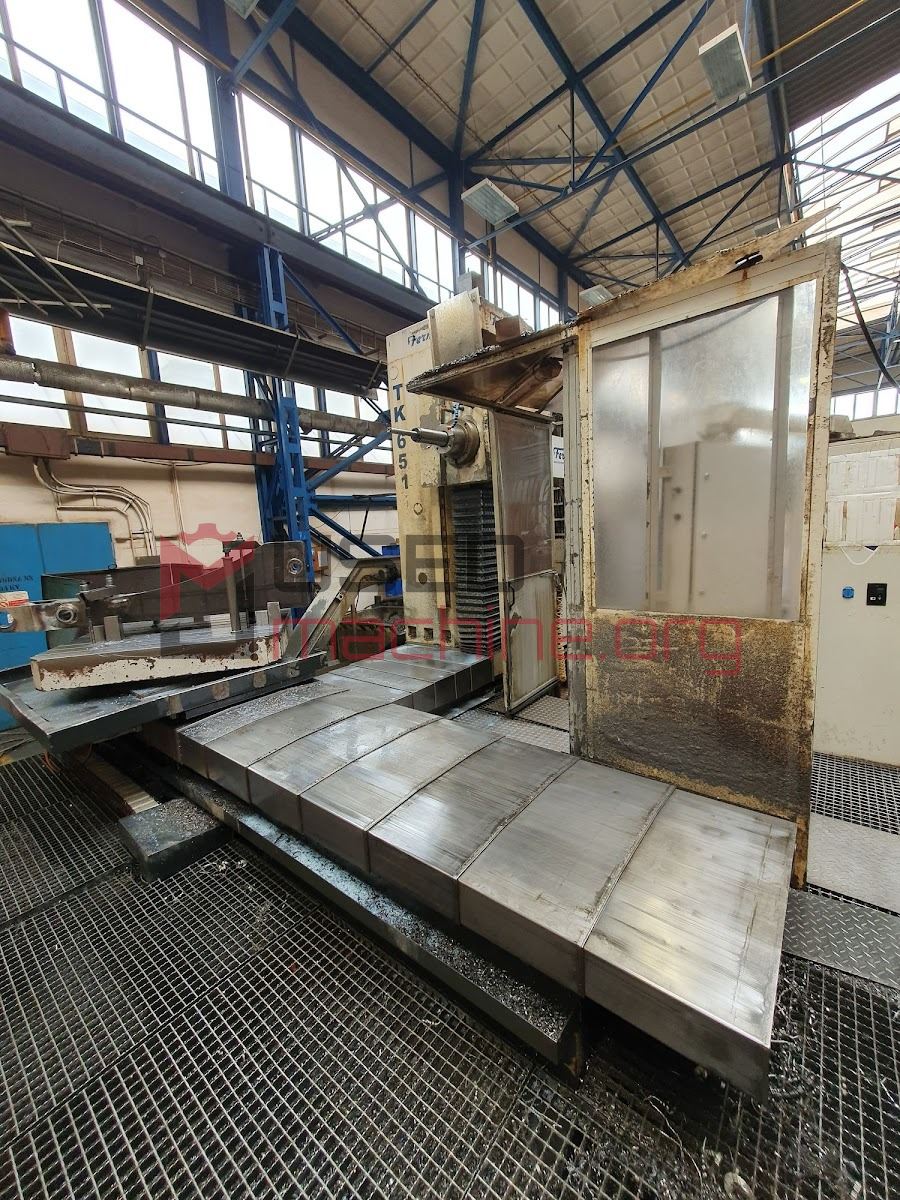

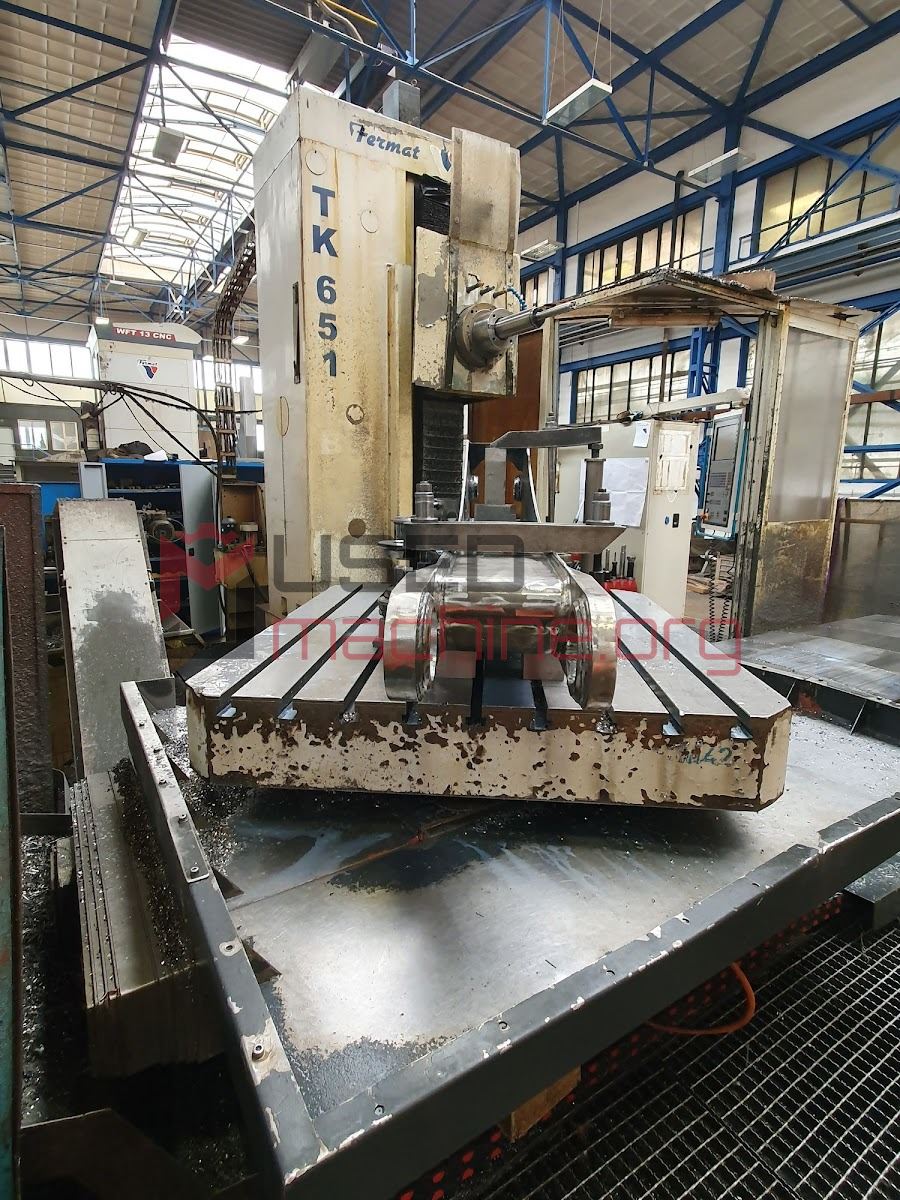

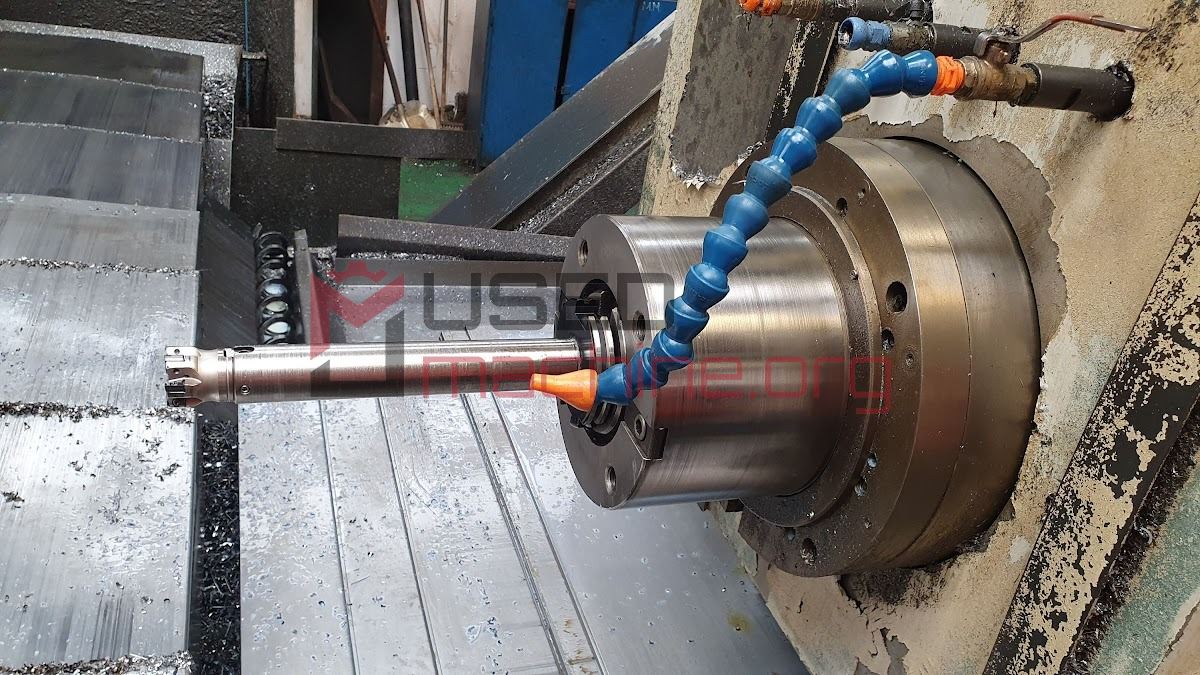

TK 6511 B - borers horizontal - table

Year: 2018 Control system Heidenhain TNC 640 Clamping area of table 350x350 mm Travel X-axis 500 mm Travel Y-axis 600 mm Travel Z-axis 450 mm Spindle speed 10 - 20000 /min. Number of driven axes 5 Cooling through spindle YES Pressure of cooling 80 bar Spindle taper HSK-A63 . Max. load of table 200 kg Axis A +91/-121 ° Axis C 360 ° Number of pallets 7 Tool magazine YES Number of positions in magazine 120 Machine weight 13000 kg Machine dimensions l x w x h 4280x3920x3340 mm The machine is in excelent condition. Possible to test under power.

Year: 2005 Control system Heidenhain TNC 530 Clamping area of table 500 x 1100 mm Travel X-axis 1000 mm Travel Y-axis 500 mm Travel Z-axis 495 mm Spindle speed 10 - 12000 /min. Number of driven axes 3 Cooling through spindle NO Spindle taper ISO 40 . Number of positions in magazine 32 Machine dimensions l x w x h 3170 x 2750 x 2720 mm Machine weight 6000 kg The machine is in good technical condition, under power, after agreement is possible to test it.

Year: 2025 Control system Heidenhain TNC 640 Clamping area of table 1200 x 500 mm Travel X-axis 1040 mm Travel Y-axis 540 mm Travel Z-axis 600 mm Spindle speed 12000 - /min. Number of driven axes 3 Cooling through spindle YES Pressure of cooling 25 bar Spindle taper SK 40 . Max. weight of workpiece 800 kg Tool magazine YES Number of positions in magazine 24 Machine dimensions l x w x h 2900 x 2420 x 2840 mm Machine weight 6400 kg Linear roller guide in all axes. Articulated chip conveyor. Heidenhain direct absolute metering in all axes. Fully covering the machine. 19 color touch monitor GEN3 digital AC drives with regenerative power supply module. HR 510 handwheel. Preparation for 4 and 5 people. Preparation for probes.

Diameter of working spindle 100 mm Travel X-axis 1600 mm Travel Y-axis 1120 mm Spindle speed 7 - 1120 /min. Cooling through spindle NO Spindle travel - W axis 900 mm Travel Z-axis 1250 mm Tool magazine NO Spindle taper ISO 50 . Max. load of table 3000 kg Machine dimensions l x w x h 6710 x 3450 x 3000 mm Machine weight 14000 kg Main motor power 11 kW Total input 17 kVA Clamping area of table 1250 x 1250 mm Face plate diameter 600 mm Max. diameter of face turning 900 mm Machine is overhauled. Hand-controlling horizontal borer machine with fixed stand and cross-adjustable table. The machine is in the following version: X, Z, Y ground, traverse milled and undercut, more precisely glued with special material with sliding properties (Turcite, GS-super fluid, etc.), wedges ground and scraped. The worktable surface is grinded and scraped (reinovation of grooves as required). The X and Y axes are equipped with trapezoidal screws with nuts - placed in bearing housings. Headstock - Gearwheel be

Year: 2017 Control system Siemens Sinumerik 840D Sl Max. diameter of workpiece 1100 mm Clamping diameter of rotary table 800 mm Max. load of table 4000 kg Max. workpiece height 690 mm Ram travel (Z) 630 mm Ram size 180x200 mm Driven Tools NO Tool magazine YES Number of positions in magazine 15 Table rotation 2 - 400 /min Main motor power 58 kW The machine is in very good technical condition, under power, after agreement is possible to test it.

Control system Siemens Sinumerik ONE Max. diameter of workpiece 1800 mm Clamping diameter of rotary table 1600 mm Max. load of table 12000 kg Max. workpiece height 1275 mm Ram travel (Z) 1000 mm Ram size 180x220 mm Driven Tools YES Number of tool positions (driven) 15 Tool magazine YES Number of positions in magazine 15 Axis C 360 ° Cooling through spindle YES Pressure of cooling 20 bar Working feed 4000 mm/min Rapid feed 10000 m/min Main motor power 60 kW Rotations of clamping plate 2 - 200 /min Speed driven tools 8 - 3300 /min Power of driven tools 19,5 kW Machine weight 27200 kg Machine dimensions l x w x h 5700 x 7000 x 5900 mm Machine completely overhauled 2025. Under the power on Fermat stock. Full - way positioning C axis (boring, milling with continuous controllable worktop and driving tools). Full machine covering with CE declaration. 12 months warranty. Full machine documentation. Chip conveyor. Cooling device. Price does not includes tools (option).

Year: 2008 Control system Siemens Sinumerik 840 D Max. diameter of workpiece 3000 mm Clamping diameter of rotary table 2800 mm Max. load of table 18000 kg Max. workpiece height 1800 mm Ram travel (Z) 1400 mm Ram size 320 mm Driven Tools NO Tool magazine YES Number of positions in magazine 12 Main motor power 50 kW Machine weight 40000 kg under power in very good condition

Year: 1952 Diameter of working spindle 160 mm Travel X-axis 3000 mm Travel Y-axis 2000 mm Spindle speed 2 - 450 /min. Spindle travel - W axis 1200 mm Cooling through spindle NO Tool magazine NO Spindle taper metricky 100 . Ram travel (V) 600 mm Machine weight 26000 kg The machine is in good technical condition. accessories: Floor plate 2pcs, rotary table SKODA E 20 2000x2000mm

Year: 2008 Control system Heidenhain TNC 530 Diameter of working spindle 130 mm Travel X-axis 8000 mm Travel Y-axis 3000 mm Spindle speed 10 - 3000 /min. Spindle travel - W axis 730 mm Cooling through spindle YES Pressure of cooling 20 bar Tool magazine NO Spindle taper ISO 50 . Travel Z-axis 900 mm Axis V 2400 mm Max. load of table 25000 kg Table dimensions 2000x3000 mm The machine is in good technical condition. Accessories (option): FERMAT T 25 rotary table with 2000x3000 mm table dimension and V=2400 mm movement (option). Head UHM 37 (option). Headstock revision.

Year: 1981 Diameter of working spindle 90 mm Travel X-axis 1250 mm Travel Y-axis 900 mm Spindle speed 0 - 1120 /min. Cooling through spindle NO Spindle travel - W axis 680 mm Travel Z-axis 1000 mm Tool magazine NO Spindle taper ISO 40 . Max. load of table 3000 kg Rapid feed XYZ 18 – 900 / 3.200 m/min Clamping area of rotary table 1000 x 1120 mm Machine weight 10 000 kg Space of machine 5000 x 2500 x 2800 mm The machine is in good technical condition, under power, after agreement is possible to test it.
