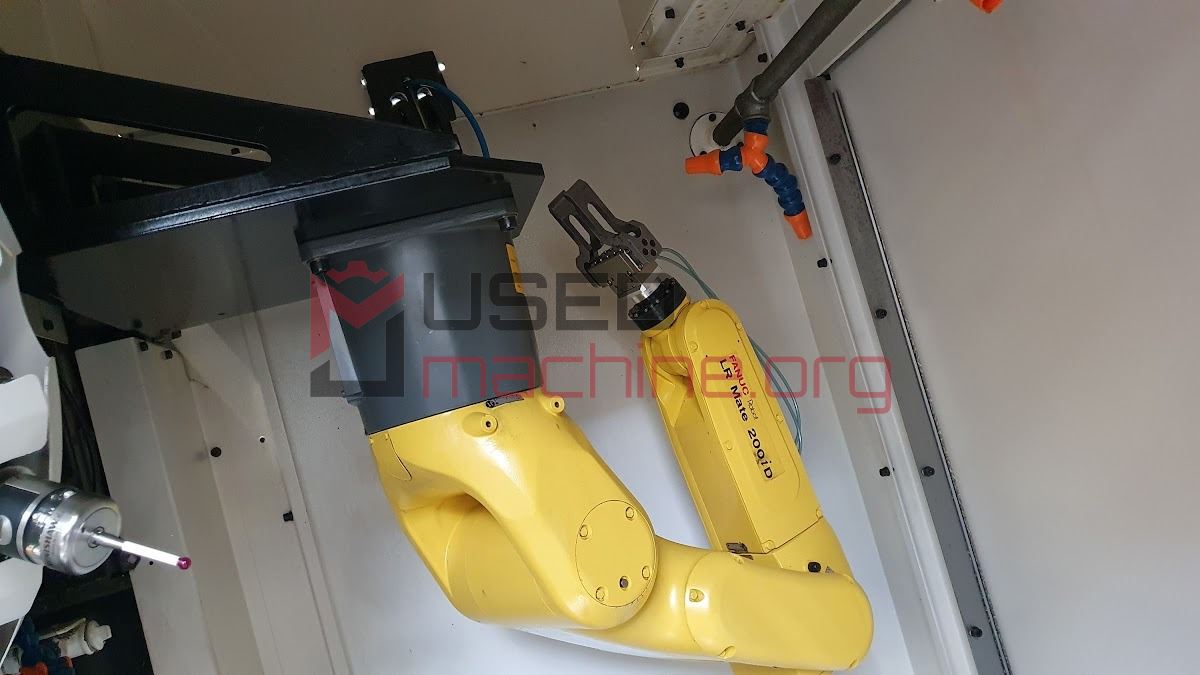

ROBODRILL ALFA D21LiB5 + robot FANUC LR Mate 200iD / machining centres vertical

Year: 2004 Control system Haas Turn table diameter 241 mm Turning lenght 508 mm Sloping bed YES Spindle bore 76 mm Turret head YES Swing over bed 584 mm Distance between centres 610 mm Machine weight 4100 kg Machine dimensions l x w x h 3500x1900x1900 mm Spindle speed 0 - 3000 /min. The machine is in good technical condition, under power, after agreement is possible to test it.

Year: 2017 Control system Fanuc i Series Turn table diameter 600 mm Turning lenght 330 mm Sloping bed YES Spindle bore 61 mm Turret head YES Swing over bed 600 mm Swing over cross slide 400 mm Travel X-axis 205 mm Travel Z-axis 340 mm X-axis rapid feed 30 m/min Z-axis rapid feed 36 m/min Spindle speed 0 - 6000 /min. Max. torque of spindle 127 Nm Main motor power 11/15 kW The machine is in excelent condition. Possible to test under power.

Year: 2017 Control system Fanuc i Series Turn table diameter 350 mm Turning lenght 330 mm Sloping bed YES Spindle bore 76 mm Turret head YES Machine weight 2750 kg Travel X-axis 300 mm Travel Z-axis 360 mm Chuck diameter 210 mm Spindle speed 1 - 4500 /min. Machine dimensions l x w x h 2350x1595x1693 mm The machine is in excellent condition, little worked, possible inspection.

Year: 2010 Control system Siemens 810 D Turn table diameter 160 mm Turning lenght 450 mm Sloping bed YES Y axis NO Counterspindle NO Spindle bore 51 mm Milling head NO Driven Tools YES Number of tool positions (driven) 12/6 Bar loader Travel X-axis 160 mm Travel Z-axis 450 mm Spindle speed 1 - 5000 /min. Machine dimensions l x w x h 4228 x 3115 x 2153 mm Machine weight 3800 kg Machine in good condition.It has universal chuck, toolholder for knife, borer and driven tools 2 axial and 2 radial.

Year: 2019 Control system Heidenhain TNC 620 Clamping area of table 900x650 mm Travel X-axis 750 mm Travel Y-axis 610 mm Travel Z-axis 500 mm Spindle speed 50 - 12000 /min. Number of driven axes 3 Cooling through spindle YES Pressure of cooling 20 bar Spindle taper ISO 40 . Max. load of table 800 kg Tool magazine YES Number of positions in magazine 30 Rapid feed 30 m/min Main motor power 15 kW Machine weight 7900 kg Machine dimensions l x w x h 3350x2770x3060 mm The machine is in very good technical condition. Under power. It can be tested.

Year: 2015 Control system Siemens Sinumerik 840 D Clamping area of table 2X D 500 mm Travel X-axis 830 mm Travel Y-axis 630 mm Travel Z-axis 630 mm Spindle speed 0 - 20000 /min. Number of driven axes 5 Cooling through spindle NO Spindle taper HSK-A63 . Tool magazine YES Number of positions in magazine 2 x 30 Machine weight 18500 kg Machine dimensions l x w x h 7000x3200x3500 mm

Year: 2007 Clamping area of table 1200 x 510 mm Travel X-axis 1020 mm Travel Y-axis 510 mm Travel Z-axis 525 mm Spindle speed 0 - 10000 /min. Number of driven axes 3 Cooling through spindle YES Spindle taper ISO 40 . Max. load of table 700 kg Number of positions in magazine 20 Main motor power 25 kW Machine dimensions l x w x h 2810 x 1895 x 2940 mm Machine weight 4800 kg Machine under the power.

Year: 2007 Clamping area of table 1200 x 510 mm Travel X-axis 1020 mm Travel Y-axis 510 mm Travel Z-axis 525 mm Spindle speed 0 - 10000 /min. Number of driven axes 3 Cooling through spindle YES Spindle taper ISO 40 . Max. load of table 700 kg Number of positions in magazine 20 Main motor power 25 kW Machine dimensions l x w x h 2810 x 1895 x 2940 mm Machine weight 4800 kg Machine under the power in great condition. Chip conveyor. Coolant through the spindle. Probe. Handwheel.

Year: 2010 Control system Heidenhain TNC 530 Clamping area of table 1200x600 mm Travel X-axis 1020 mm Travel Y-axis 610 mm Travel Z-axis 610 mm Spindle speed 10 - 12000 /min. Number of driven axes 3 Cooling through spindle YES Pressure of cooling 20 bar Spindle taper SK 40 . Max. weight of workpiece 500 kg Main motor power 22 kW Rapid feed 40,40,36 m/min Tool magazine YES Number of positions in magazine 30 Machine weight 6970 kg Machine dimensions l x w x h 2920x2820x2860 mm The machine is in good technical condition, under power, after agreement is possible to test it.

Year: 2015 Control system Mazatrol MATRIX 2 Clamping area of table 1300x550 mm Travel X-axis 1050 mm Travel Y-axis 530 mm Travel Z-axis 510 mm Spindle speed 10 - 12000 /min. Number of driven axes 3 Cooling through spindle YES Pressure of cooling 15 bar Spindle taper ISO 40 . Max. load of table 1200 kg Tool magazine YES Number of positions in magazine 30 Number of pallets 2 Machine weight 7700 kg The machine is in very good technical condition, under power, after agreement is possible to test it.
