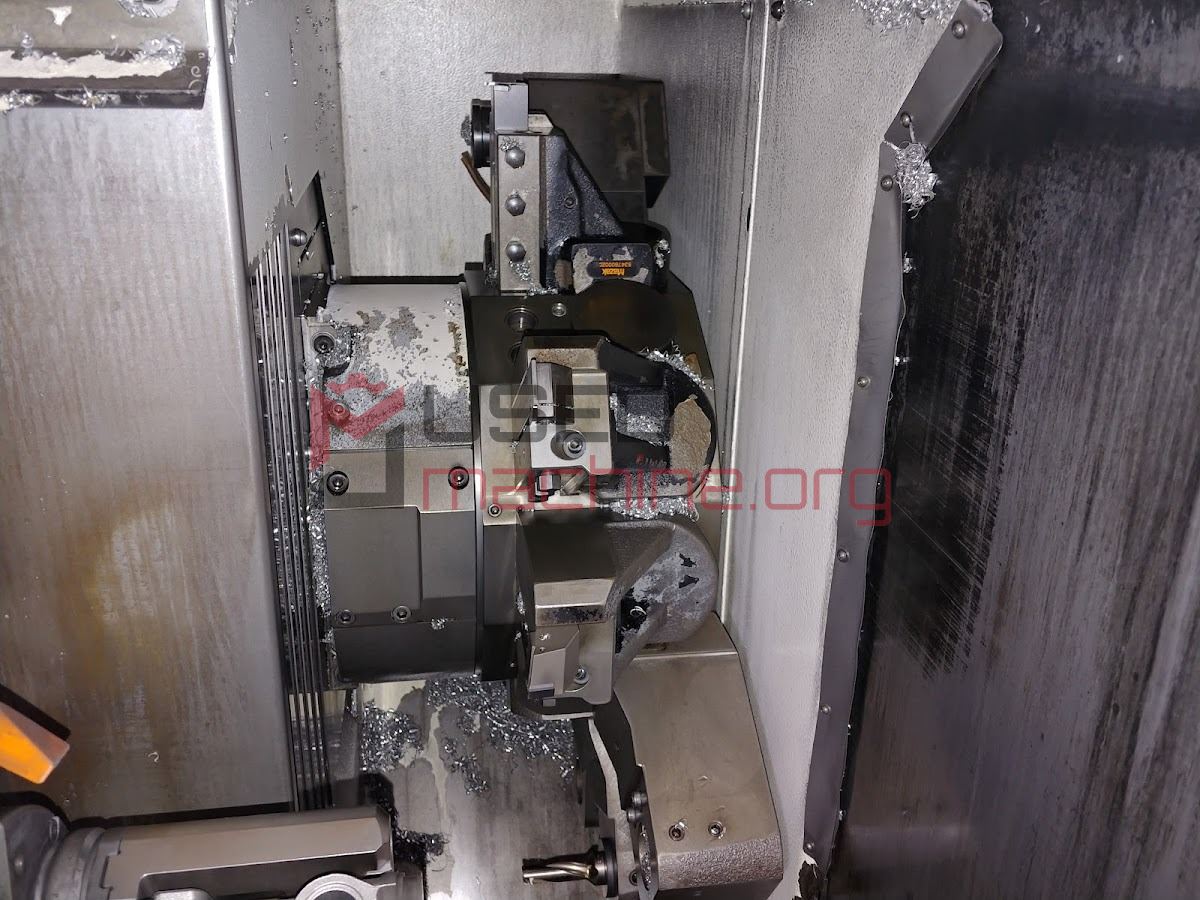

MULTIPLEX 6200-II Lathes CNC

Year: 2013 Control system Heidenhain TNC 620 Dimensions of table working surface 908x480 mm Travel X-axis 500 mm Travel Y-axis 400 mm Travel Z-axis 400 mm Spindle speed 50 - 12000 /min. Spindle taper SK 30 . Tool magazine YES Number of positions in magazine 20 Main motor power 9,5 kW Machine weight 3000 kg Cooling through spindle NO Machine dimensions l x w x h 1700x1900x2500 mm The machine is in a good technical condition. Not under power.

Year: 2016 Control system Heidenhain TNC 530 Dimensions of table working surface 3000x1000 mm Travel X-axis 3000 mm Travel Y-axis 1250 mm Travel Z-axis 1500 mm Spindle taper ISO 50 . Spindle speed 20 - 6000 /min. Max. torque of spindle 1250 Nm Main motor power 30 kW Max. load of table 7500 kg Rapid feed 30 m/min Cooling through spindle YES Pressure of cooling 20 bar Tool magazine YES Number of positions in magazine 60 Machine weight 29300 kg Machine dimensions l x w x h 8780x6100x4600 mm The machine is in a very good technical condition, under power, possible to be tested.

Year: 2002 Control system Acramatic 2100 CNC Dimensions of table working surface 3700x800 mm Travel X-axis 3700 mm Spindle speed 0 - 5000 /min. Spindle taper SK 50 . The machine is in very good condition. Possible to test under power. Documentation is available. Holders.

Year: 2012 Control system Fanuc 32i - B Turn table diameter 20 mm Turning lenght 250 mm Sloping bed NO Y axis YES Counterspindle NO Spindle bore mm Milling head NO Driven Tools YES Number of tool positions (driven) 39/15 Bar loader YES Spindle speed 0 - 12000 /min. Machine weight 3300 kg Machine dimensions l x w x h 2100,0 × 1200,0 × 1900,0 mm number of axes: 6 linear + 2x C-axis Range of cylindrical rod diameters (min./max.) - 3-20 Work piece length: - fixed guide sleeve - 250 mm - motorized guide sleeve - 210 mm - without guide sleeve - 45 mm Power of the main spindle drive - 2.2 / 3.7 kW Spindle speed - 12,000 rpm. Counterspindle drive power - 1.5 / 2.2 kW Cross-section of the shank of turning tools - 16x16 mm Rotational speed of driven tools - 8,000 rpm. Drive power for tools driven on the front support - 0.75 kW Drive power for tools driven on the rear support - 1 kW Drive power of driven tools for processing the other side - 0.75 kW Oil pan capacity - 165 liters Oil pump powe

Year: 2015 Control system Mitsubishi M 70 V Turn table diameter 600 mm Turning lenght 3000 mm Sloping bed NO Y axis NO Counterspindle NO Spindle bore 104 mm Milling head NO Driven Tools YES Bar loader NO Swing over bed 600 mm Swing over cross slide 310 mm Travel Z-axis 2800 mm Axis C 0,001 ° Spindle speed 10 - 2500 /min. Turret head YES Machine weight 5150 kg Machine dimensions l x w x h 5840x1888x2050 mm The machine is in excelent condition. Possible to test under power.

Year: 2008 Control system Siemens Sinumerik 840 D Turn table diameter 400 mm Turning lenght 600 mm Sloping bed YES Y axis YES Travel Y-axis 64mm (+/- 32mm) mm Counterspindle YES Spindle bore 50 mm Milling head NO Driven Tools YES Number of tool positions (driven) 12 Bar loader YES Travel X-axis 160 mm X-axis rapid feed 60 m/min Swing over bed 400 mm Distance between centres 615 mm Spindle speed 0 - 6000 /min. Main motor power 16 kW Spindle taper VDI 30 . Machine weight 3 700 kg Very good technical condition. Possible to test it.

Year: 2013 Control system Fanuc 31i - B5 Turn table diameter 10 mm Turning lenght 100 mm Sloping bed YES Y axis YES Counterspindle YES Spindle bore 10 mm Milling head NO Driven Tools YES Bar loader YES Spindle speed 0 - 14000 /min. The machine is in excelent condition. Possible to test under power. Bar feeder LNS Tryton.

Year: 2017 Control system OKUMA OSP-P300LA Turn table diameter 580 mm Turning lenght 950 mm Sloping bed YES Y axis YES Travel Y-axis (lathe) 120 mm Counterspindle NO Spindle bore 91 mm Milling head NO Driven Tools YES Number of tool positions (driven) 12/12 Bar loader NO Travel X-axis 260 mm Travel Z-axis 510 mm Spindle speed 0 - 5000 /min. Speed driven tools 45 - 6000 /min X-axis rapid feed 25 m/min Z-axis rapid feed 30 m/min Y-axis rapid feed 12,5 m/min Axis C 360 ° Main motor power 22 kW Machine dimensions l x w x h 3420 x 2041x 2444 mm Machine weight 6600 kg The machine is in a good technical condition. Under power. It can be tested.

Year: 2017 Control system OKUMA OSP-P300LA Turn table diameter 580 mm Turning lenght 950 mm Sloping bed YES Y axis YES Travel Y-axis (lathe) 120 mm Counterspindle NO Spindle bore 91 mm Milling head NO Driven Tools YES Number of tool positions (driven) 12/12 Bar loader NO Travel X-axis 260 mm Travel Z-axis 510 mm Spindle speed 0 - 5000 /min. Speed driven tools 45 - 6000 /min X-axis rapid feed 25 m/min Z-axis rapid feed 30 m/min Y-axis rapid feed 12,5 m/min Axis C 360 ° Main motor power 22 kW Machine dimensions l x w x h 3420 x 2041x 2444 mm Machine weight 6600 kg The machine is in a good technical condition. Under power. It can be tested.

Year: 2002 Control system Mazatrol 640 T Machine dimensions l x w x h 3680 x 2460 x 1740 mm mm Spindle bore 40 mm Main motor power 31 kW Machine weight 2720 kg Travel Z-axis 540 mm Travel X-axis 155 mm Spindle speed 1 - 6000 /min. The machine is in good condition, can be tested.
