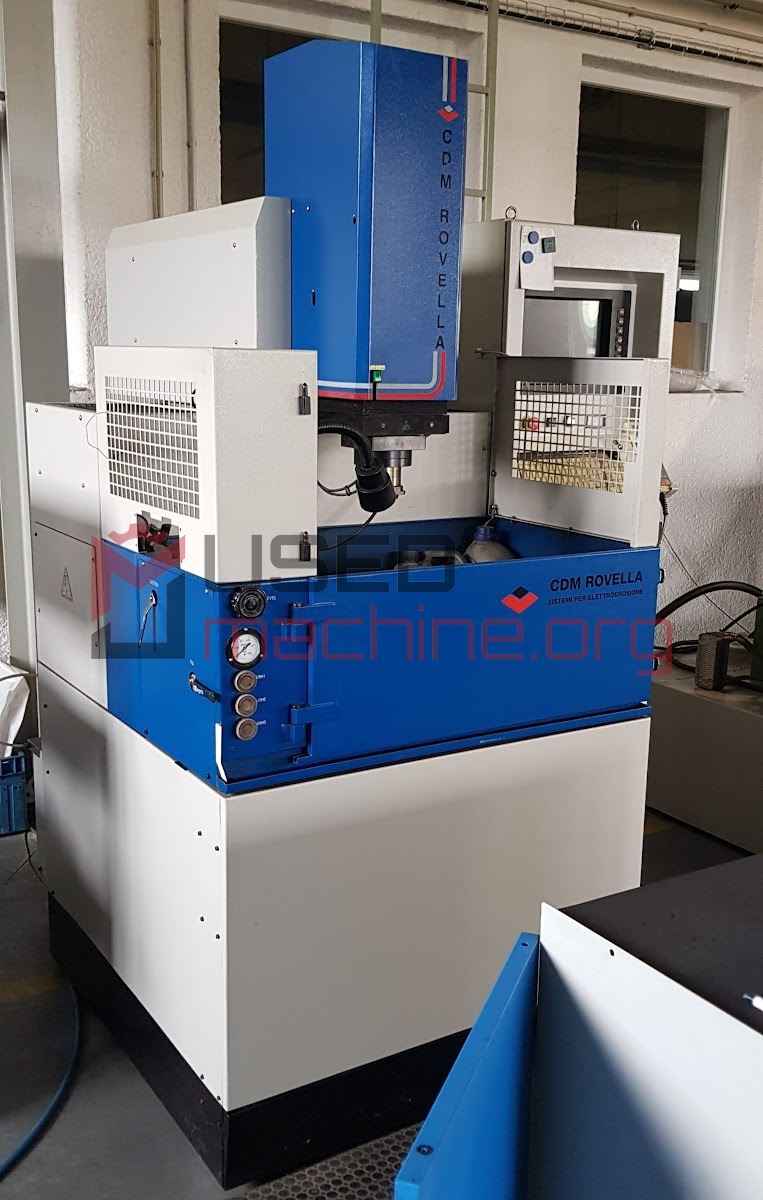

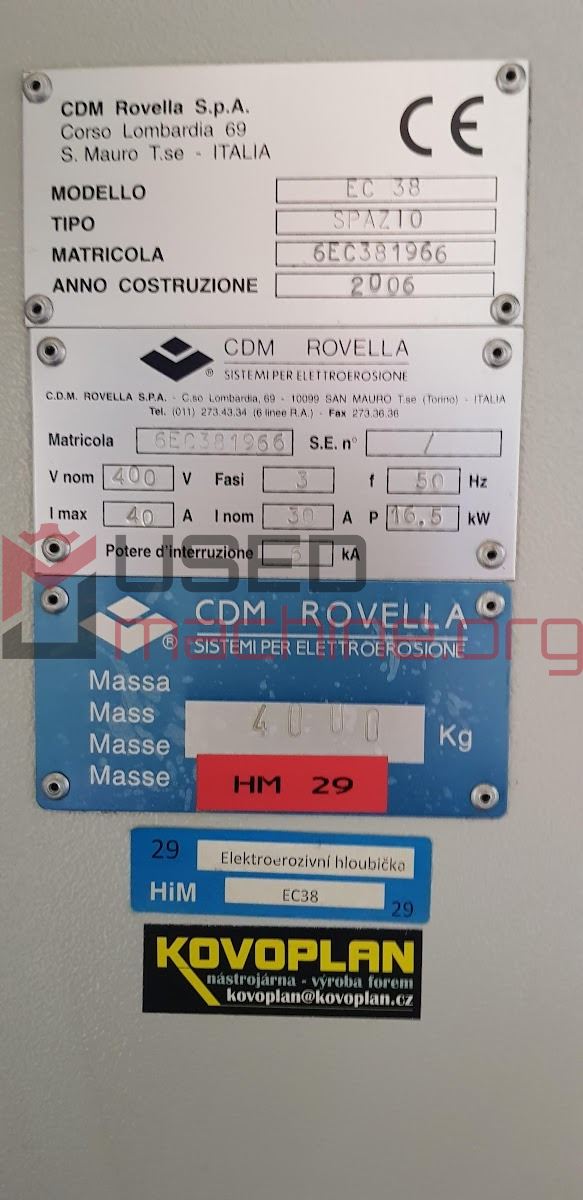

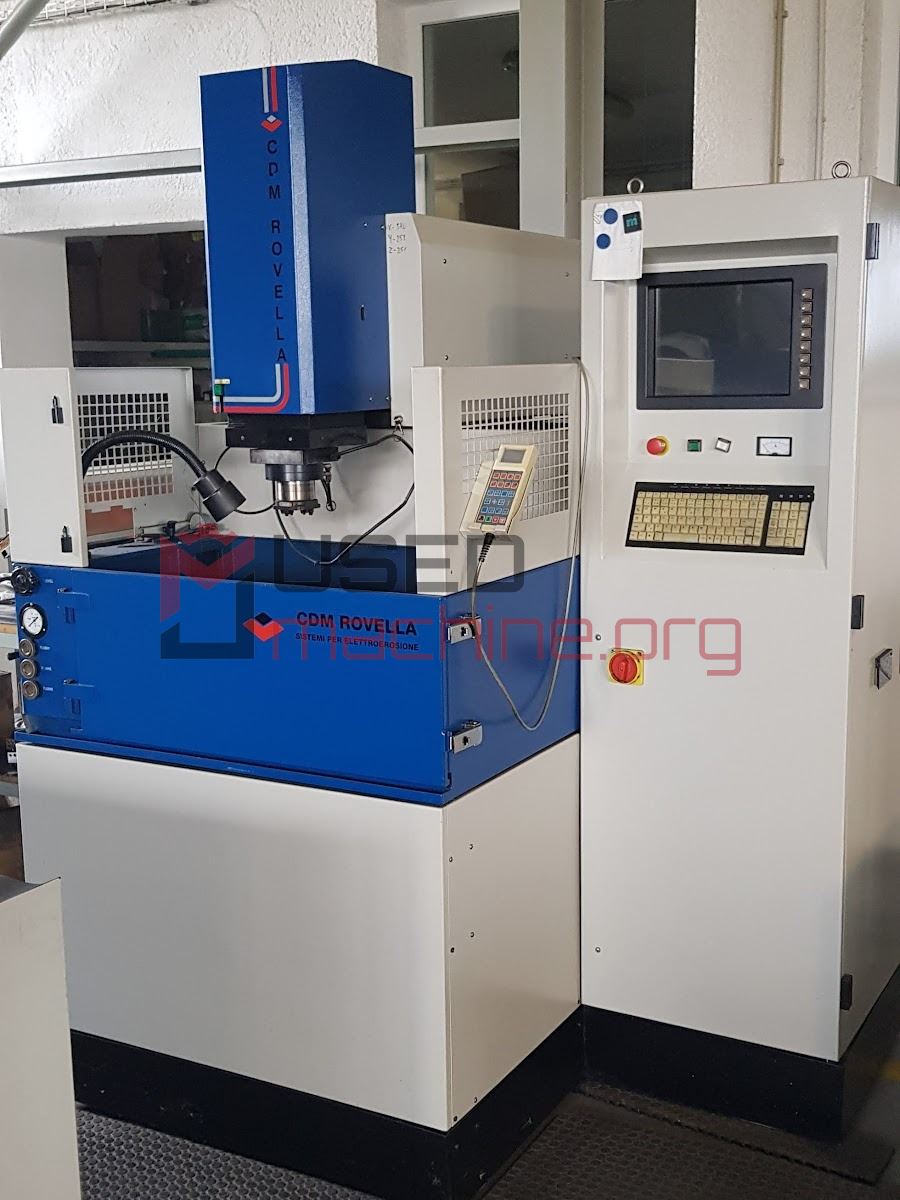

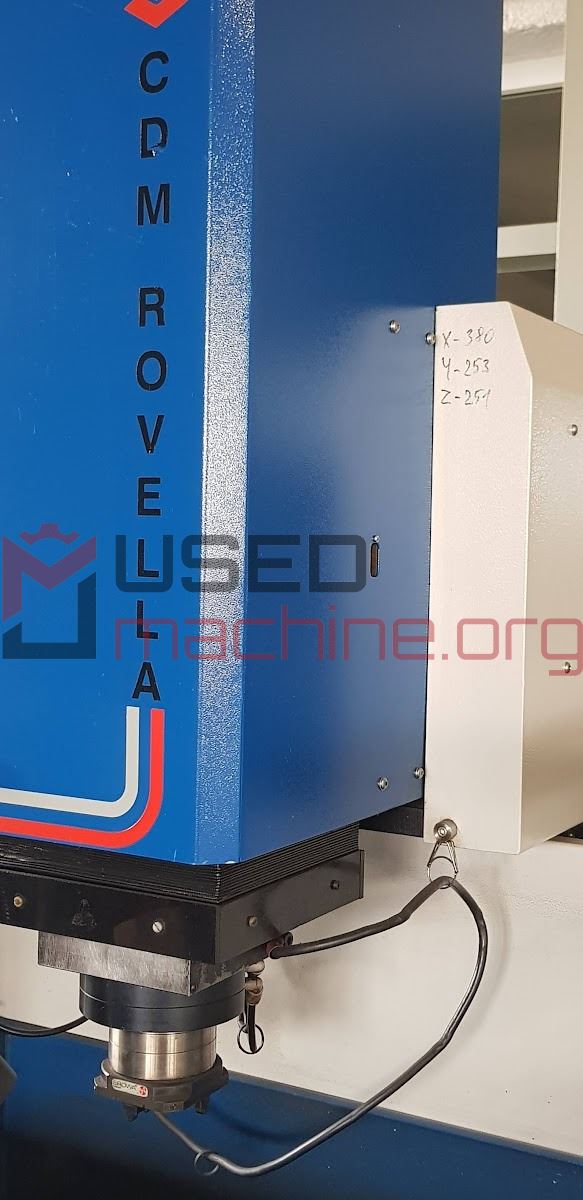

EC 38 / Spark electro-erosion machine

Year: 2009 Max. dimensions of workpiece 530x320x200 mm Max. weight of workpiece 70 kg Machine weight 3000 kg Machine dimensions l x w x h 2800x1750x2400 mm The machine is in excelent condition. Possible to test under power. Cleaning process - dip-degreasing with solvent alternatively with ultrasonic. - Immersion - Intermediate drying - Vapour degreasing - Vacuum drying All steps alternatively with basket motion Batch dimensions 530 x 320 x 200 mm Performance 8-10 batches/h (normal programme) Batch weight max. 70 kg Solvent hydrocarbon, modified alcohol Content Solvent approx. 450 litres Electrical output: Heat output 33 kW Motor output 13 kW Cooling output approx. 15 kW power requirement approx. 51 kW / 90 A Operating voltage 400 V / 50 Hz / 3/N/PE Pressurised air approx. 6 bar Amount of exhaust airapprox. 63 m3/h

Year: 2008 Max. weight of workpiece 5000 kg Robotic welding system CLOOS: - ROBOT ROMAT 350 (Rotol II) - WPV-DP-10 000 (positioner load capacity 1000kg, workpiece diameter 4000mm) - WPV-50kN (positioner load capacity 5000kg, workpiece diameter 4800mm) - 2xGLC 603 Quinto ( Singel MRW 500 + Tandem ZMW 800) New control system installed in 2023

Catalog No. : 6869Type: Robocut 0iAProducer: FANUCMade in: 2000Characteristic: Control system: FANUC Maximum travel length X-axis: 320 mm Maximum travel length Y-axis: 220 mm Maximum travel length Z-axis: 180 mm Travel length U-axis ( -): 120 mm Travel length V-axis ( -): 120 mm Machine weight: 1200 kg

Catalog No. : 8049Type: EDM 310Producer: ExeronMade in: 2009Characteristic: Table dimensions: 350 x 550 mm Maximum travel length X-axis: 310 mm Maximum travel length Y-axis: 270 mm Maximum travel length Z-axis: 270 mm Maximum table load: 500 kg Maximum electrode weight: 25 kg Dielectric tank capacity: 140 l Container size: 350 x 770 x 520 mm Length: 1500 mm Width: 1760 mm Height: 2200 mm Weight: 1650 kg

Catalog No. :7182Type:Crysta Plus M544Producer:MitutoyoMade in:2012Characteristic: Table dimensions: 860 x 638 mm Axis X: 505 mm Axis Y: 405 mm Axis Z: 405 mm Max. workpiece weight: 180 kg Machine dimensions: 2185 x 1082 x 1078 mm Machine weight: 440 kg

stock no. :22913Machine's group :Bar feeder/loaderType :LNS QUICKLOAD SERVO IIJahrgang :2001

Wire Spark Erosion Machines MITSUBISHI BA8

SAKODA E202000mmx2000mmZ:1200Kapasite :20 T

stock no. :22972Machine's group :Wire cutting machineType :CHARMILLES ROBOFIL 240 SLController :CHARMILLESJahrgang :2004Teknik DetayVideo

stock no. :22949Machine's group :Robot with pallet stationType :KUKA KR 240 L210-2 2000Teknik DetayVideo
