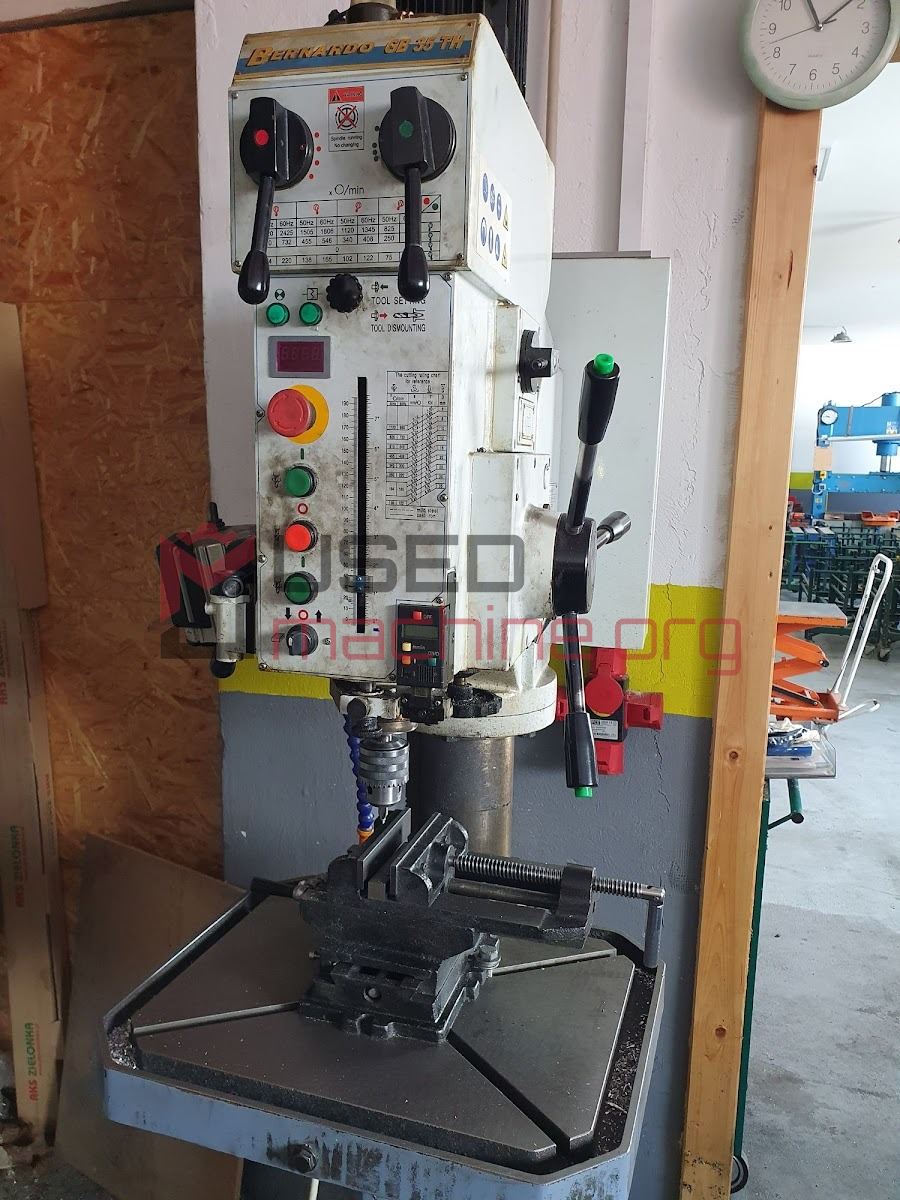

Bernardo GB 35 TH - Radial drilling machine

Diameter of working spindle 100 mm Travel X-axis 1600 mm Travel Y-axis 1120 mm Spindle speed 0 - 1200 /min. Cooling through spindle NO Spindle travel - W axis 900 mm Travel Z-axis 1250 mm Tool magazine NO Spindle taper SK 50 . The machine is in very good condition, after part-overhaul. More information on request.
