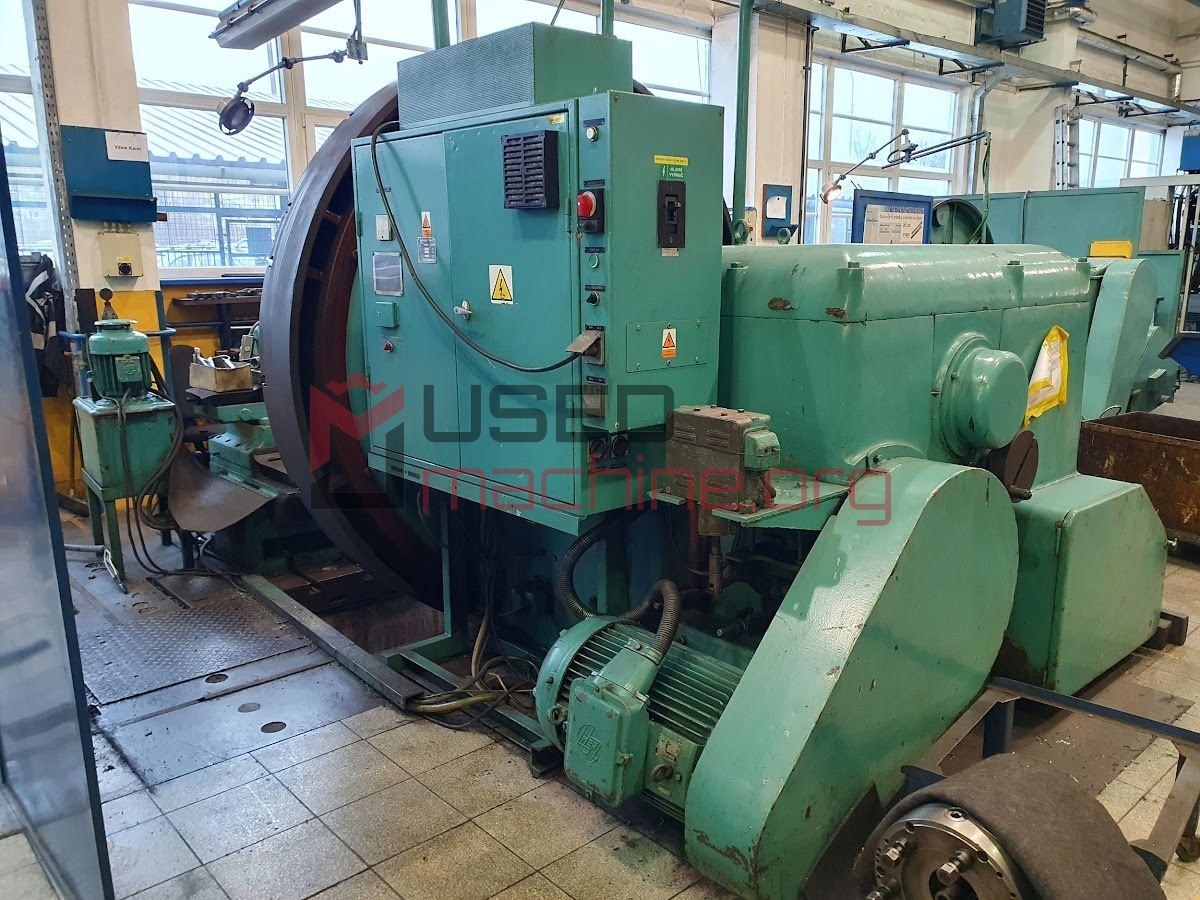

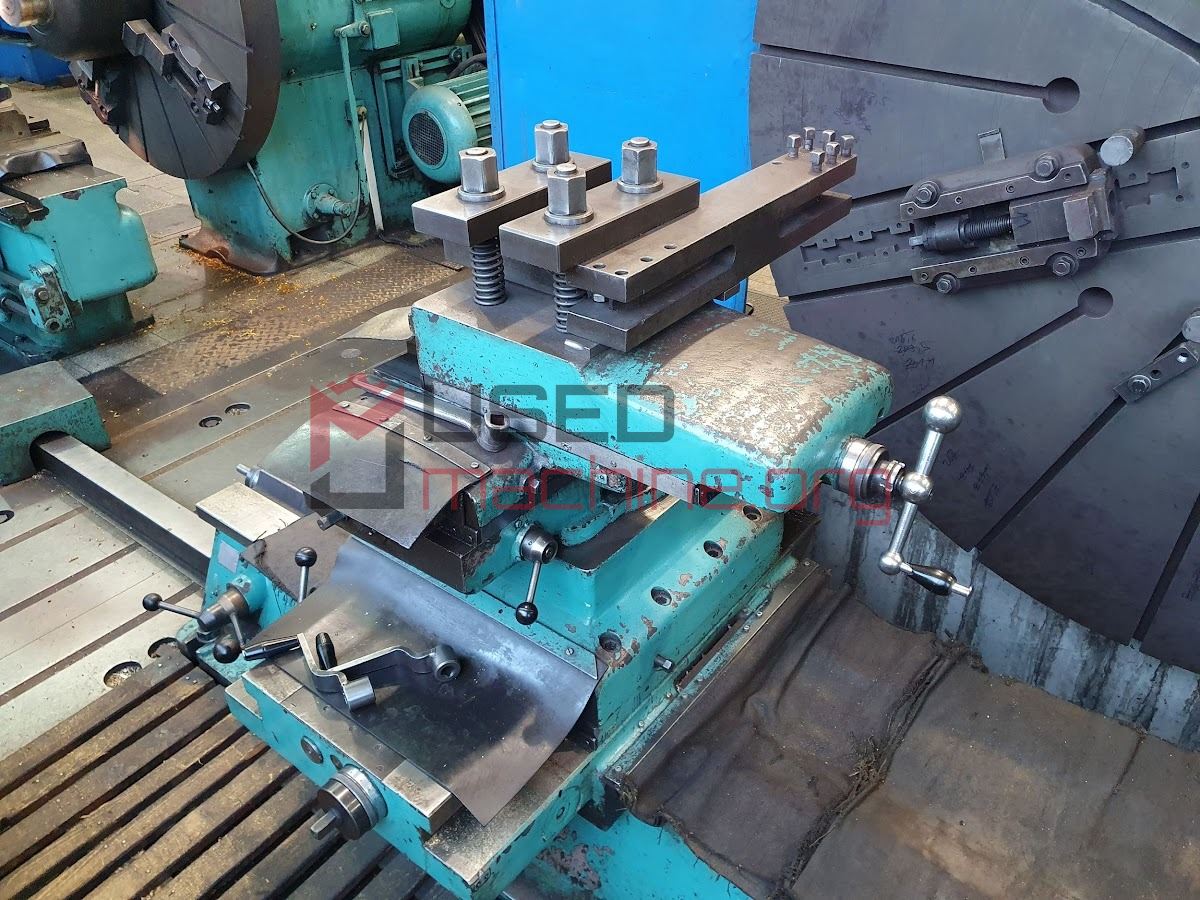

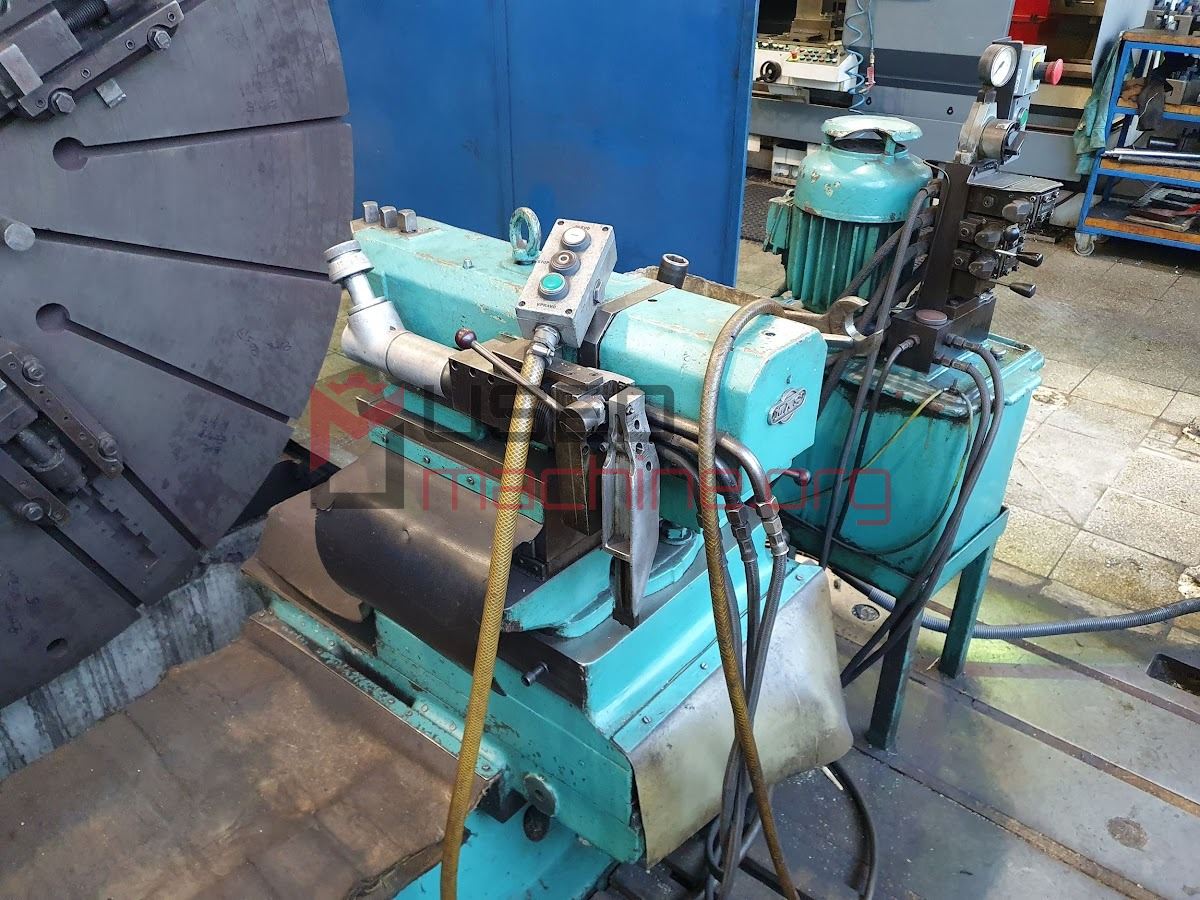

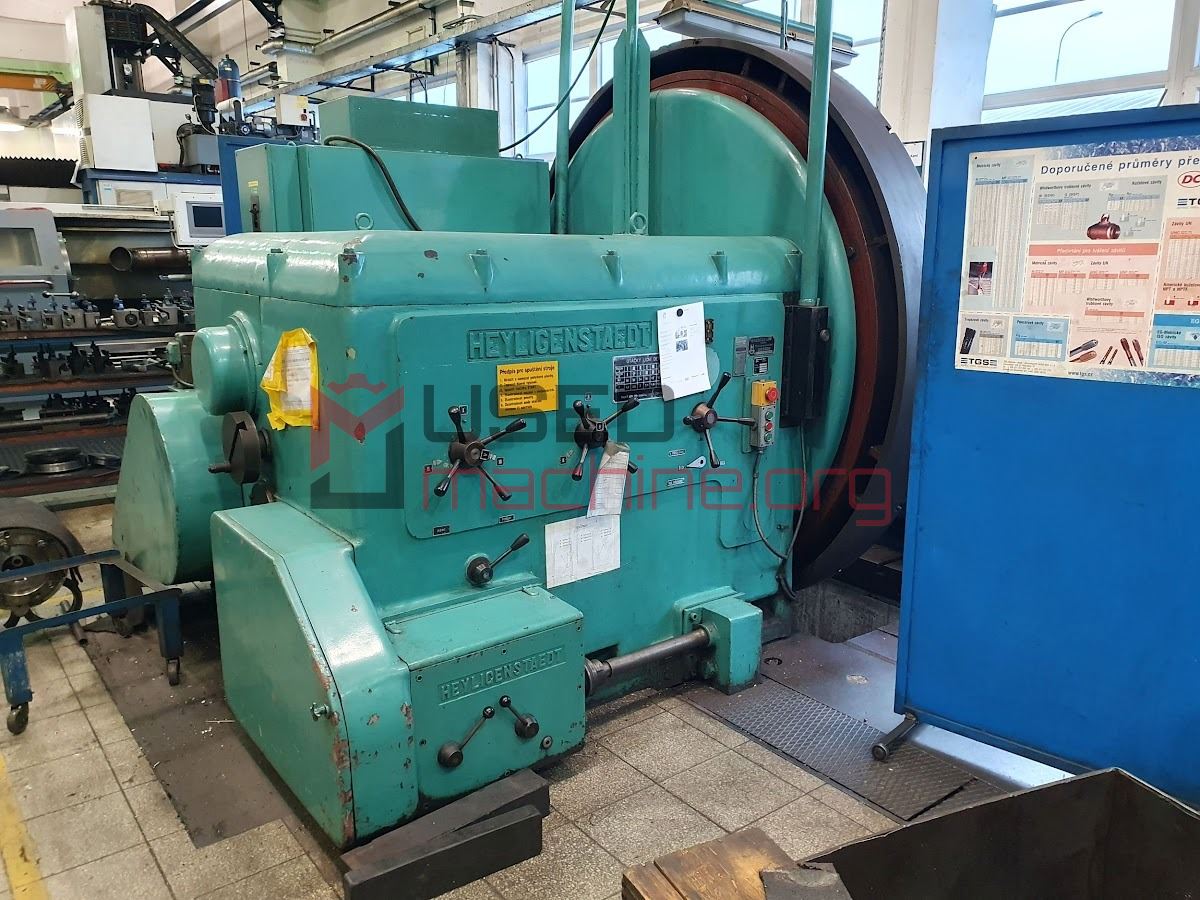

Heylingenstaedt - Lathe conventional

Year: 2024 Control system Siemens Sinumerik 840D Sl Clamping area of table 1400 x 1000 mm Travel X-axis 1335 mm Travel Y-axis 1250 mm Travel Z-axis 900 mm Spindle speed 0 - 20000 /min. Number of driven axes Cooling through spindle YES Pressure of cooling 40 bar Spindle taper HSK A 63 . Axis A +120° -120° ° Axis C 360 ° Max. load of table 2000 kg Tool magazine YES Number of positions in magazine 60 Rapid traverse (X, Y, Z): 40 m/min Table type: NC swivel rotary table Table clamping surface: 1400 mm x 1000 mm (integrated C-axis with a table plate of 1250 x 1000 mm) Swivel range (A-axis): +120° to -120° Rotation range (C-axis): 360° Max. workpiece dimensions: Machinable diameter 1250 mm, height 790 mm Spindle type: Motor spindle speedMASTER with HSK-A 63 taper (nebo interface) Speed: Max. 20,000 rpm (this is an optional feature selected in this quote, standard is 15,000 rpm) Output / Power: 35 kW (at 40% duty cycle) / 25 kW (at 100% duty cycle) Tool magazine: Vertical chain magazine

Year: 2018 Control system Fanuc 0i-TF Turn table diameter 450 mm Turning lenght 600 mm Sloping bed YES Spindle bore 86 mm Turret head YES Swing over bed 580 mm Travel X-axis 240 mm Travel Z-axis 600 mm Spindle speed 10 - 4000 /min. Main motor power 15/11 kW Rapid feed 20 m/min Machine weight 4500 kg Machine dimensions l x w x h 3525x1851x1862 mm Excellent technical condition, testing possible. Includes: tool probe

Year: 2014 Control system Heidenhain TNC 530 Clamping area of table 1800 (1600x2500) mm Travel X-axis 2300 mm Travel Y-axis 1400 mm Travel Z-axis 1050 mm Spindle speed 10 - 10000 /min. Number of driven axes 5 Cooling through spindle YES Pressure of cooling 40 bar Spindle taper HSK-A100 . Max. weight of workpiece 10000/5000 kg Max. torque of spindle 130/150 Nm Axis C 360 ° Axis B ±110 ° Rapid feed 50 m/min Tool magazine YES Number of positions in magazine 48 Machine weight 32000 kg Machine dimensions l x w x h 6640x6000x4800 mm The machine is in good technical condition, under power, after agreement it is possible to test it. Accessories: tool and workpiece probe

Year: 2007 Control system Siemens Sinumerik 840 D Max. diameter of grinding 630 mm Max. length of grinding 3000 mm Max. weight of workpiece 1200 kg Total input 56 kVA Machine weight 12700 kg Machine dimensions l x w x h 9900x2980x1875 mm The machine is in good technical condition, under power, after agreement it is possible to test it. Video: https://www.youtube.com/watch?v=ly4WISAUKkM

Distance between centres 500 mm Max. weight of workpiece 2000 kg

Year: 2003 Control system Heidenhain TNC 530 Clamping area of table 1500x1050 mm Travel X-axis 1250 mm Travel Y-axis 880 mm Travel Z-axis 800 mm Spindle speed 20 - 8000 /min. Number of driven axes 3 Cooling through spindle YES Pressure of cooling 40 bar Spindle taper SK 40 . Tool magazine YES Number of positions in magazine 30 Max. weight of workpiece 2500 kg Machine after a complete overhaul in 2016. New spindle installed in September 2025. Equipped with a workpiece probe and a Blum laser tool setter. Very good technical condition. Can be tested under power. Video: https://youtu.be/TaAS5iMCII0

Year: 1991 Diameter of working spindle 100 mm Travel X-axis 1600 mm Travel Y-axis 1120 mm Spindle speed 0 - 1200 /min. Cooling through spindle NO Spindle travel - W axis 900 mm Travel Z-axis 1250 mm Tool magazine NO Spindle taper ISO 50 . Clamping area of table 1250 x 1250 mm Max. load of table 3000 kg Main motor power 11 kW Machine dimensions l x w x h 6710 x 3450 x 3000 mm Machine weight 14 000 kg The machine is in very good technical condition, under power, and can be tested.

Year: 2010 Control system Fanuc 18i-TB Turn table diameter 20 mm Turning lenght 165 mm Sloping bed NO Y axis YES Counterspindle YES Spindle bore 31 mm Milling head NO Driven Tools YES Bar loader YES Spindle speed 0 - 8000 /min. Total input 6 kVA Machine weight 2550 kg Machine dimensions l x w x h 2200x1200x2000 mm The machine is in very good technical condition and can be tested. Accessories: LNS EXPRESS 220 feeder

year: 2026 Control system Siemens Sinumerik ONE Max. diameter of workpiece 1800 mm Clamping diameter of rotary table 1600 mm Max. load of table 12000 kg Max. workpiece height 1760 mm Ram travel (Z) 1000 mm Ram size 180x220 mm Driven Tools YES Number of tool positions (driven) 15 Tool magazine YES Number of positions in magazine 15 Axis C 360 ° Cooling through spindle YES Pressure of cooling 20 bar Main motor power 60 kW Rotations of clamping plate 2 - 200 /min Speed driven tools 8 - 3300 /min Power of driven tools 19,5 kW Machine weight 27200 kg Machine dimensions l x w x h 5700x7000x5900 mm Machine completely overhauled 2026. It can be tested under the power on Fermat stock. Full - way positioning C axis (boring, milling with continuous controllable worktop and driving tools). Full machine covering with CE declaration. 12 months warranty. Full machine documentation. Chip conveyor. Price does not include tools and cooling (option).

Diameter of working spindle 100 mm Travel X-axis 1600 mm Travel Y-axis 1120 mm Spindle speed 0 - 1120 /min. Cooling through spindle NO Spindle travel - W axis 900 mm Travel Z-axis 1250 mm Tool magazine NO Spindle taper ISO 50 . Clamping area of table 1250 x 1250 mm Main motor power 11 kW Max. weight of workpiece 3000 kg Total input 15 kVA Machine dimensions l x w x h 6710 x 3450 x 3000 mm Machine weight 14000 kg
