Vertical Machining Centers

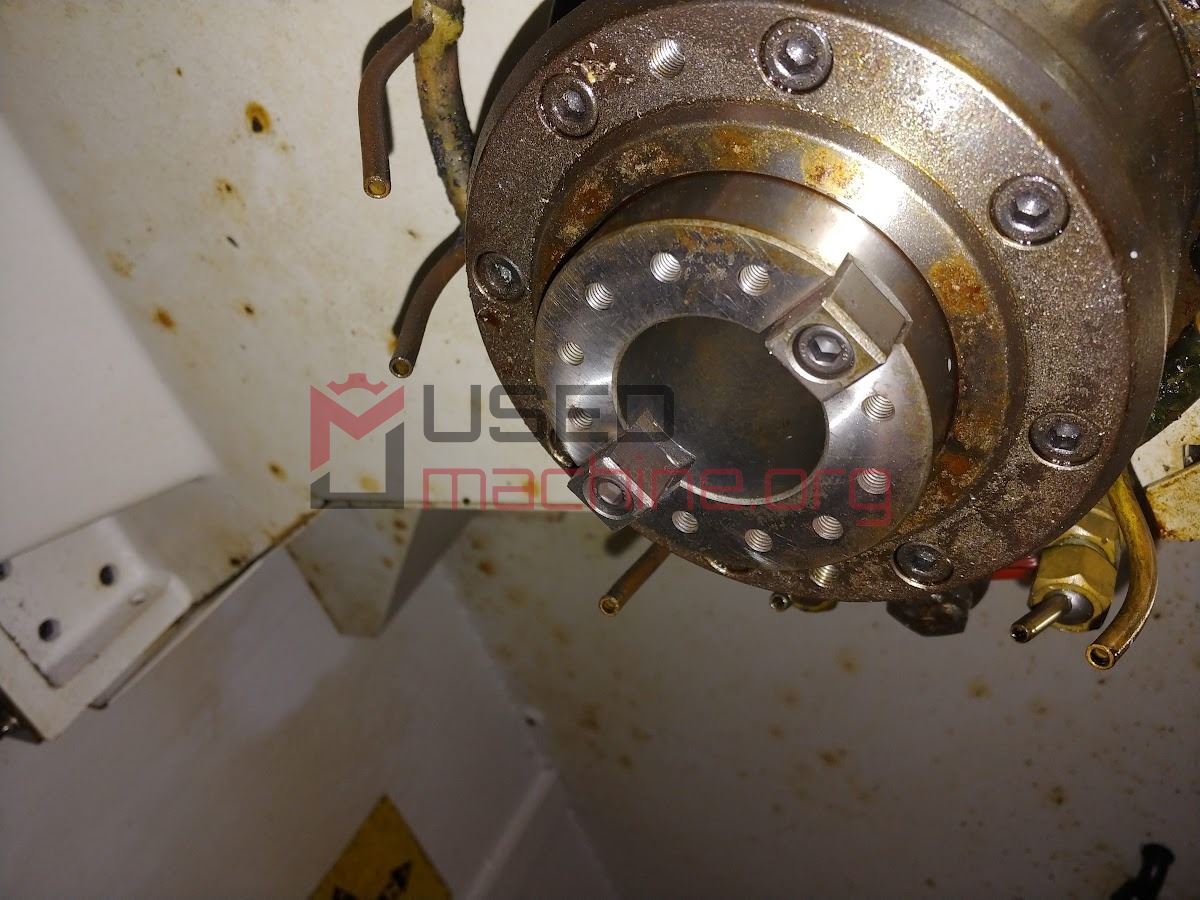

Year: 2008 Control system Fanuc 0i - MC Clamping area of table 1200x500 mm Travel X-axis 1020 mm Travel Y-axis 510 mm Travel Z-axis 560 mm Spindle speed 0 - 8000 /min. Number of driven axes 3 Spindle taper BT 40 . Tool magazine YES Number of positions in magazine 16 Machine weight 5000 kg Machine dimensions l x w x h 2960x2150x2600 mm The machine is in good technical condition, under power.

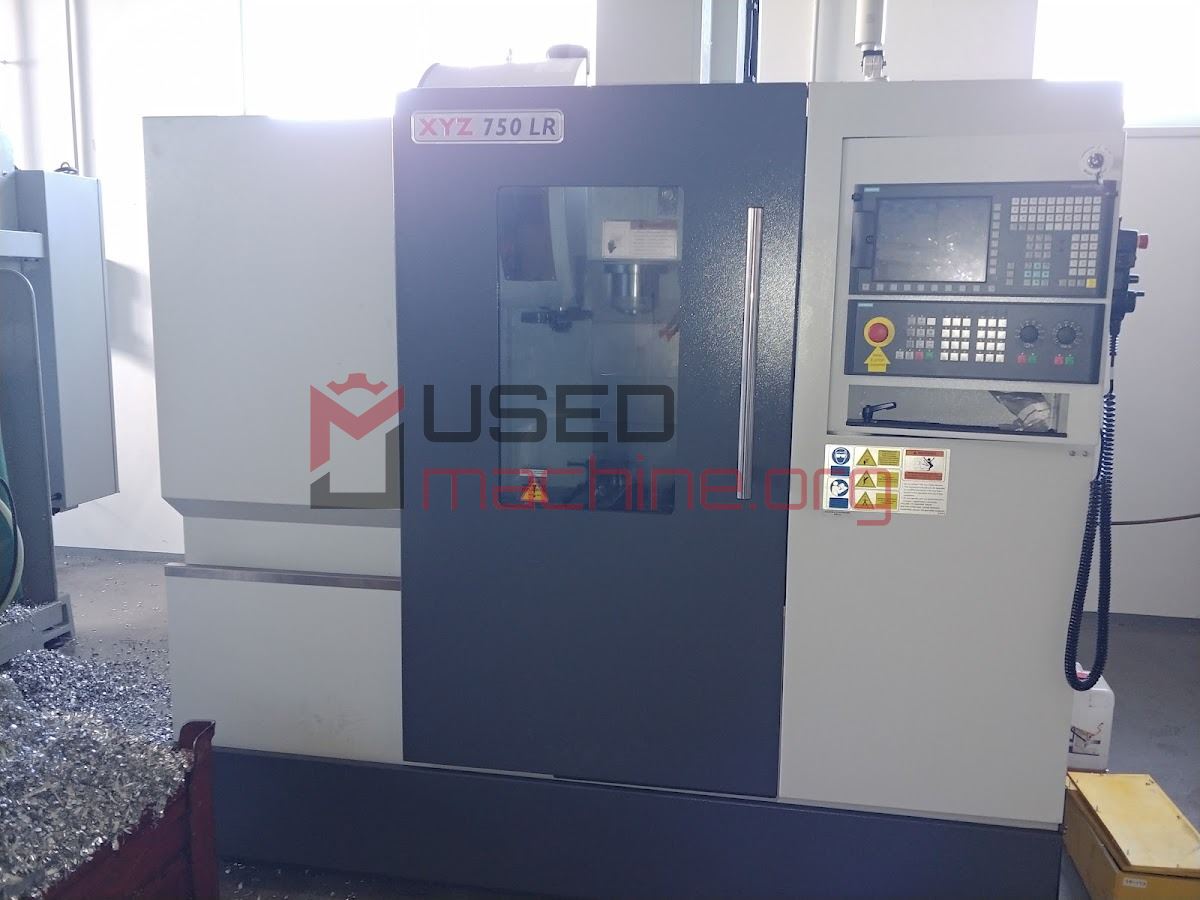

Year: 2018 Control system Siemens Sinumerik 828 D BASIC Clamping area of table 830x410 mm Travel X-axis 750 mm Travel Y-axis 440 mm Travel Z-axis 500 mm Spindle speed 5 - 8000 /min. Number of driven axes 3 Cooling through spindle NO Spindle taper BT40 . Machine weight 3500 kg Max. load of table 500 kg Tool magazine YES Number of positions in magazine 24 The machine is in a good technical condition. Under power. It can be tested.

Year: 2018 Control system Heidenhain TNC 640 Clamping area of table 350x350 mm Travel X-axis 500 mm Travel Y-axis 600 mm Travel Z-axis 450 mm Spindle speed 10 - 20000 /min. Number of driven axes 5 Cooling through spindle YES Pressure of cooling 80 bar Spindle taper HSK-A63 . Max. load of table 200 kg Axis A +91/-121 ° Axis C 360 ° Number of pallets 7 Tool magazine YES Number of positions in magazine 120 Machine weight 13000 kg Machine dimensions l x w x h 4280x3920x3340 mm The machine is in excelent condition. Possible to test under power.

Year: 2005 Control system Heidenhain TNC 530 Clamping area of table 500 x 1100 mm Travel X-axis 1000 mm Travel Y-axis 500 mm Travel Z-axis 495 mm Spindle speed 10 - 12000 /min. Number of driven axes 3 Cooling through spindle NO Spindle taper ISO 40 . Number of positions in magazine 32 Machine dimensions l x w x h 3170 x 2750 x 2720 mm Machine weight 6000 kg The machine is in good technical condition, under power, after agreement is possible to test it.

Year: 2025 Control system Heidenhain TNC 640 Clamping area of table 1200 x 500 mm Travel X-axis 1040 mm Travel Y-axis 540 mm Travel Z-axis 600 mm Spindle speed 12000 - /min. Number of driven axes 3 Cooling through spindle YES Pressure of cooling 25 bar Spindle taper SK 40 . Max. weight of workpiece 800 kg Tool magazine YES Number of positions in magazine 24 Machine dimensions l x w x h 2900 x 2420 x 2840 mm Machine weight 6400 kg Linear roller guide in all axes. Articulated chip conveyor. Heidenhain direct absolute metering in all axes. Fully covering the machine. 19 color touch monitor GEN3 digital AC drives with regenerative power supply module. HR 510 handwheel. Preparation for 4 and 5 people. Preparation for probes.

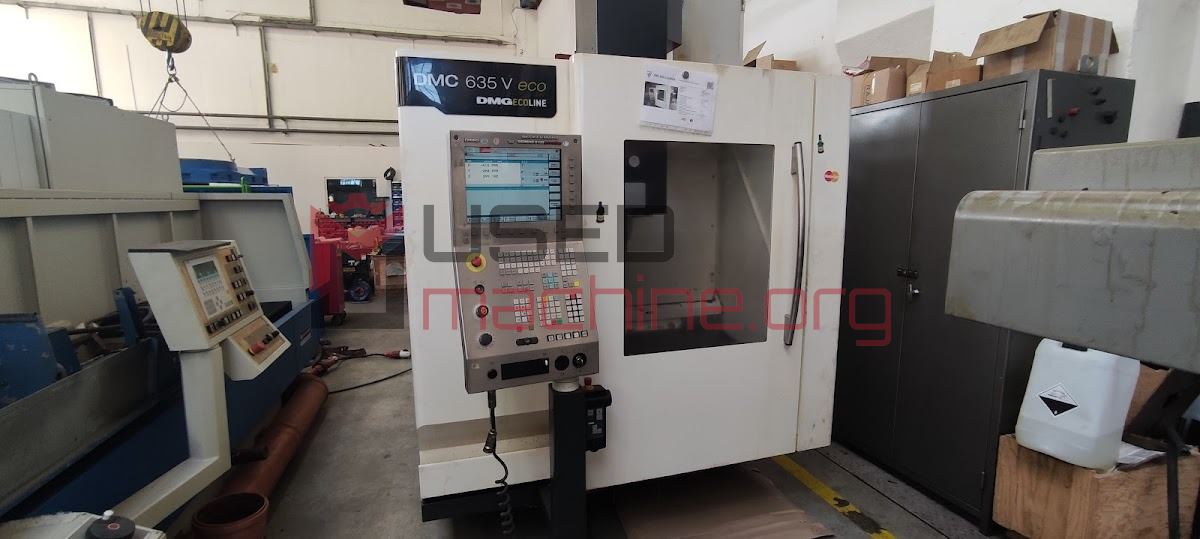

Year: 2005 Control system Heidenhain TNC 530 Clamping area of table 600x1000 mm Travel X-axis 630 mm Travel Y-axis 560 mm Travel Z-axis 560 mm Spindle speed 0 - 18000 /min. Number of driven axes 5 Cooling through spindle YES Spindle taper HSK 63 . Table diameter 600 mm Number of positions in magazine 24 Main motor power 15/10 kW Max. weight of workpiece 500 kg The machine is in very good technical condition and can be tested under power . Worked approx. 27000 hours. There are accessories for the machine. I recommend a visit to our warehouse in Brno.

Year: 2014 Control system Heidenhain TNC 530 Clamping area of table 600 mm Travel X-axis 800 mm Travel Y-axis 700 mm Travel Z-axis 610 mm Spindle speed 20 - 15000 /min. Number of driven axes 5 Cooling through spindle YES Pressure of cooling 20 bar Spindle taper ISO 40 . Max. weight of workpiece 300 kg Main motor power 25 kW Rapid feed 32,32,16 m/min Tool magazine YES Number of positions in magazine 30 Machine weight 8750 kg Machine dimensions l x w x h 3710x2530x3230 mm The machine is in good technical condition, under power, after agreement is possible to test it.

Control system Heidenhain TNC 530 Clamping area of table 1300 x 600 mm Travel X-axis 1016 mm Travel Y-axis 610 mm Travel Z-axis 660 mm Spindle speed 0 - 8000 /min. Number of driven axes 3 Cooling through spindle YES Spindle taper ISO 40 . Machine dimensions l x w x h 3080 x 2700 x 2800 mm Machine weight 5500 kg into operation 2007 Heidenhain workpiece probe 4 axis Walter (chuck diameter 315 mm) about 60 tool holders 2023 spindle replacement with a refurbished one 2023 new Heidenhain ruler new ball screws on the X and Y axes new cover plates

Year: 2008 Control system Siemens Sinumerik 810 Clamping area of table 790 x 560 mm Travel X-axis 635 mm Travel Y-axis 510 mm Travel Z-axis 460 mm Spindle speed 0 - 10000 /min. Number of driven axes 3 Cooling through spindle NO Spindle taper SK 40 . Tool magazine YES Number of positions in magazine 20 Rapid feed 30 m/min Machine dimensions l x w x h 3500x4000x2700 mm Machine weight 4500 kg The machine is in good technical condition and can be tested. CNC control Siemens 810 powerline.

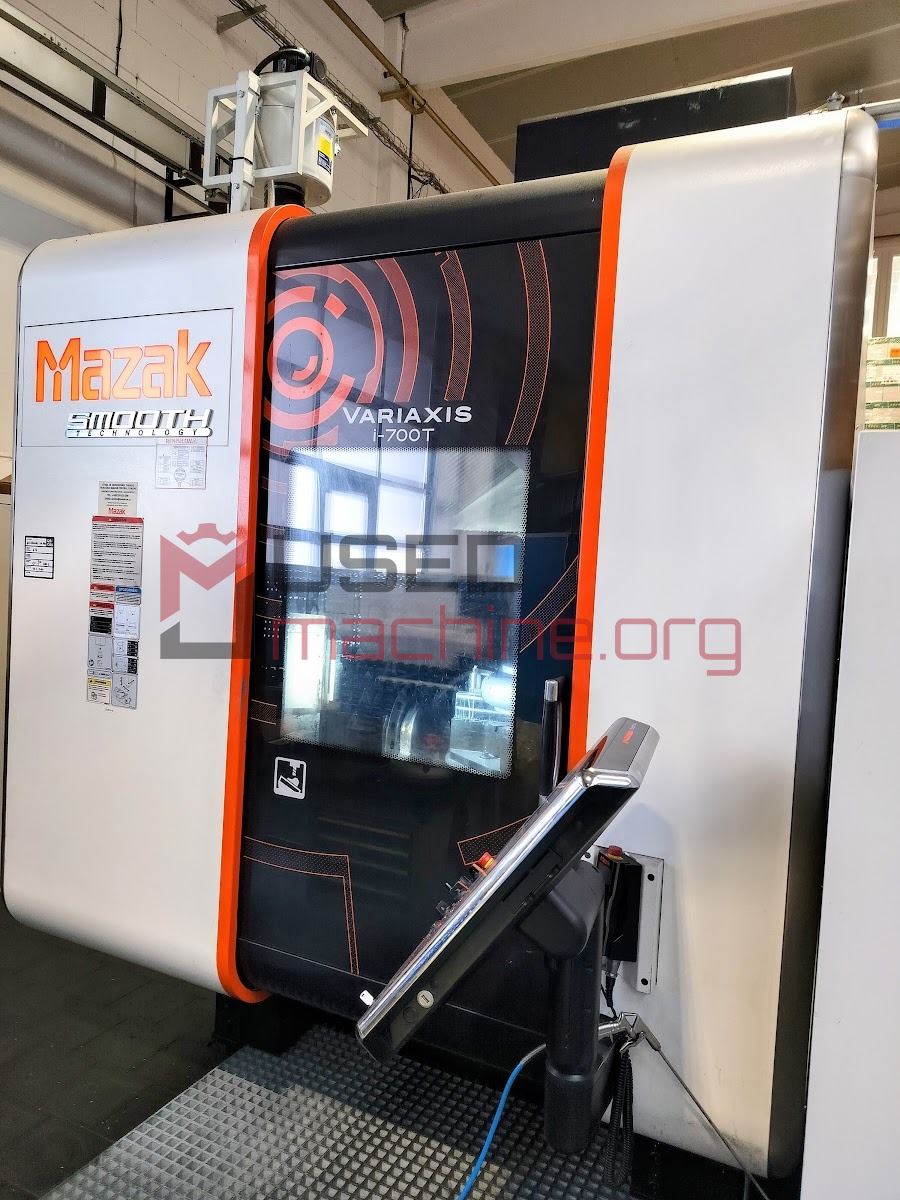

Year: 2016 Control system Mazatrol SmoothX Clamping area of table 630 mm Travel X-axis 630 mm Travel Y-axis 1100 mm Travel Z-axis 600 mm Spindle speed 0 - 18000 /min. Number of driven axes 5 Cooling through spindle YES Pressure of cooling 70 bar Spindle taper HSK 63 . Max. load of table 700 kg Table rotation 1 - 1100 /min Main motor power 22 kW Tool magazine YES Number of positions in magazine 40 Machine dimensions l x w x h 4295x2400x3457 mm Machine weight 16000 kg manual chuck 4 jaws, diameter 21'' laser tool probe NC4 direct axis measurement chip conveyor radio probe Renishaw RMP600 mist separator approx. 4,500 hours on spindle approx. 15,500 hours under power
