FERMAT CZ

Year: 2008 Control system Mitsubishi Max. length of cutting 3200 mm Max. plate thickness 10 mm Drive type of shears Hydraulicky Main motor power 15 kW Machine weight 11000 kg Machine dimensions l x w x h 4050x2050x1790 mm The machine is in good technical condition, under power, after agreement is possible to test it.

Year: 2008 Control system Delem DA - 65 W Bending power 160 t Bending length 3200 mm Number of driven axes 3 Lower compensation movement NO Type of press drive Hydraulicky Main motor power 11 kW Machine weight 10000 kg Machine dimensions l x w x h 3500x1650x2580 mm The machine is in good technical condition, under power, after agreement is possible to test it.

Year: 2002 Max. length of workpiece 3000 mm Max. workpiece width 1500 mm Max. plate thickness 12 mm Power of laser 2000 W Fiber NO Total input 71 kVA Machine weight 11500 kg Machine dimensions l x w x h 9800x5300x2000 m The machine is in good technical condition, under power, after agreement is possible to test it.

Year: 2008 Control system Siemens Sinumerik 810 Clamping area of table 790 x 560 mm Travel X-axis 635 mm Travel Y-axis 510 mm Travel Z-axis 460 mm Spindle speed 0 - 10000 /min. Number of driven axes 3 Cooling through spindle NO Spindle taper SK 40 . Tool magazine YES Number of positions in magazine 20 Rapid feed 30 m/min Machine dimensions l x w x h 3500x4000x2700 mm Machine weight 4500 kg The machine is in good technical condition and can be tested. CNC control Siemens 810 powerline.

Year: 2002 Control system SAFAN TS 1 Bending power 50 t Bending length 2550 mm Number of driven axes 4 Lower compensation movement NO Type of press drive Elektricky Max. ram stroke 215 mm Main motor power 9 kW Machine weight 5050 kg The machine is in good technical condition, under power, after agreement is possible to test it.

Year: 2003 Control system Heidenhain TNC 426 Dimensions of table working surface 6020x1060 mm Travel X-axis 8300 mm Travel Y-axis 760 mm Travel Z-axis 1200 mm Spindle taper SK 50 . Spindle speed 5 - 2000 /min. Max. load of table 8000 kg Machine weight 36000 kg The machine is in good technical condition, under power, after agreement is possible to test it.

Year: 2011 Control system Heidenhain TNC 530 Diameter of working spindle 160 mm Travel X-axis 16000 mm Travel Y-axis 6000 mm Spindle speed 10 - 2500 /min. Spindle travel - W axis 1000 mm Cooling through spindle YES Pressure of cooling 20 bar Tool magazine NO Spindle taper ISO 50 . Ram size 460 x 480 mm Clamping area of rotary table 3500 x 3000 mm Max. load of table 50000 kg Axis V 1500 mm

Year: 2012 Control system Heidenhain TNC 530 Diameter of working spindle 130 mm Travel X-axis 13500 mm Travel Y-axis 4000 mm Spindle speed 10 - 3000 /min. Spindle travel - W axis 730 mm Cooling through spindle YES Pressure of cooling 20 bar Tool magazine YES Number of positions in magazine 60 Spindle taper ISO 50 . Travel Z-axis 900 mm Axis V 2400 mm Clamping area of rotary table 2500 x 3000 mm Max. load of table 30000 kg Ram size 430 x 430 mm

Dimensions of table working surface 800 x 400 mm Travel X-axis 600 mm Travel Y-axis 400 mm Travel Z-axis 400 mm Main motor power 3 kW Spindle speed 40 - 2000 /min. Spindle taper ISO 40 . Machine dimensions l x w x h 1830 x 1645 x 1735 mm Machine weight 1725 kg The machine is in good technical condition, under power, after agreement is possible to test it.

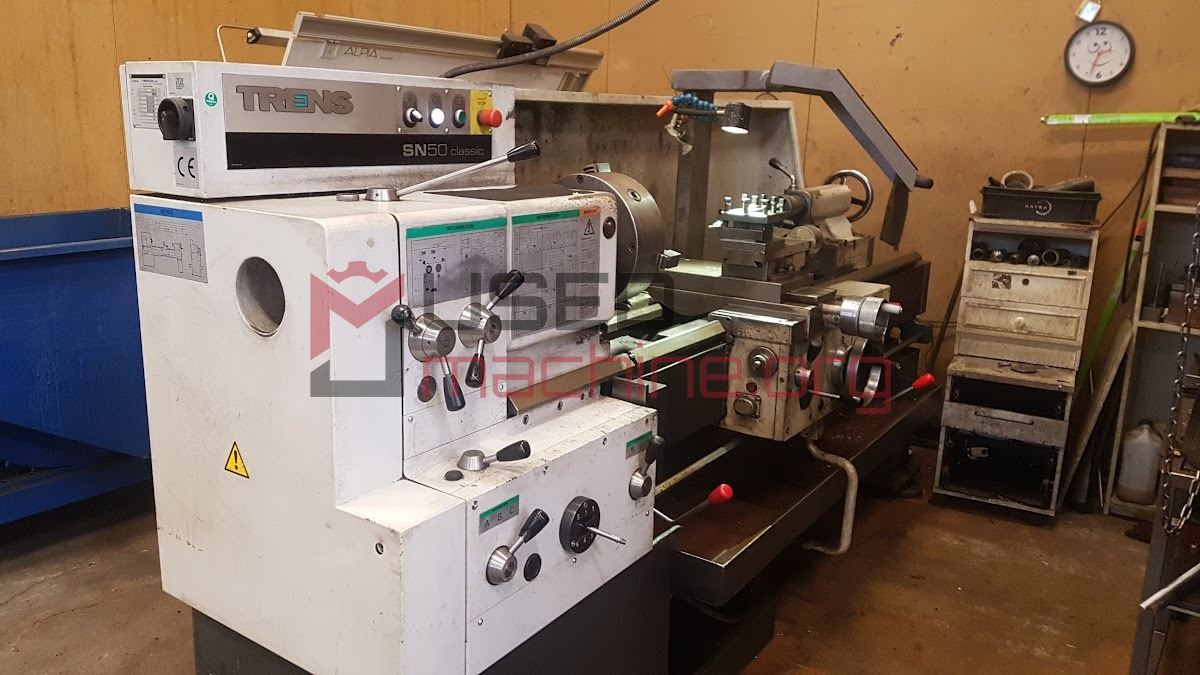

Year: 2015 Swing over bed 500 mm Distance between centres 1500 mm Max. weight of workpiece 300 kg Swing over cross slide 220 mm Main motor power 5,5 kW Machine weight 1750 kg Machine dimensions l x w x h 3140 x 1270 x 1500 mm Spindle speed 22 - 2000 /min. Spindle taper MK 5 . Machine under the power. Accessories (chucks, lunets)
