Vertical Machining Centers

Year: 2024 Control system Siemens Sinumerik 840D Sl Clamping area of table 1400 x 1000 mm Travel X-axis 1335 mm Travel Y-axis 1250 mm Travel Z-axis 900 mm Spindle speed 0 - 20000 /min. Number of driven axes Cooling through spindle YES Pressure of cooling 40 bar Spindle taper HSK A 63 . Axis A +120° -120° ° Axis C 360 ° Max. load of table 2000 kg Tool magazine YES Number of positions in magazine 60 Rapid traverse (X, Y, Z): 40 m/min Table type: NC swivel rotary table Table clamping surface: 1400 mm x 1000 mm (integrated C-axis with a table plate of 1250 x 1000 mm) Swivel range (A-axis): +120° to -120° Rotation range (C-axis): 360° Max. workpiece dimensions: Machinable diameter 1250 mm, height 790 mm Spindle type: Motor spindle speedMASTER with HSK-A 63 taper (nebo interface) Speed: Max. 20,000 rpm (this is an optional feature selected in this quote, standard is 15,000 rpm) Output / Power: 35 kW (at 40% duty cycle) / 25 kW (at 100% duty cycle) Tool magazine: Vertical chain magazine

Year: 2014 Control system Heidenhain TNC 530 Clamping area of table 1800 (1600x2500) mm Travel X-axis 2300 mm Travel Y-axis 1400 mm Travel Z-axis 1050 mm Spindle speed 10 - 10000 /min. Number of driven axes 5 Cooling through spindle YES Pressure of cooling 40 bar Spindle taper HSK-A100 . Max. weight of workpiece 10000/5000 kg Max. torque of spindle 130/150 Nm Axis C 360 ° Axis B ±110 ° Rapid feed 50 m/min Tool magazine YES Number of positions in magazine 48 Machine weight 32000 kg Machine dimensions l x w x h 6640x6000x4800 mm The machine is in good technical condition, under power, after agreement it is possible to test it. Accessories: tool and workpiece probe

Year: 2003 Control system Heidenhain TNC 530 Clamping area of table 1500x1050 mm Travel X-axis 1250 mm Travel Y-axis 880 mm Travel Z-axis 800 mm Spindle speed 20 - 8000 /min. Number of driven axes 3 Cooling through spindle YES Pressure of cooling 40 bar Spindle taper SK 40 . Tool magazine YES Number of positions in magazine 30 Max. weight of workpiece 2500 kg Machine after a complete overhaul in 2016. New spindle installed in September 2025. Equipped with a workpiece probe and a Blum laser tool setter. Very good technical condition. Can be tested under power. Video: https://youtu.be/TaAS5iMCII0

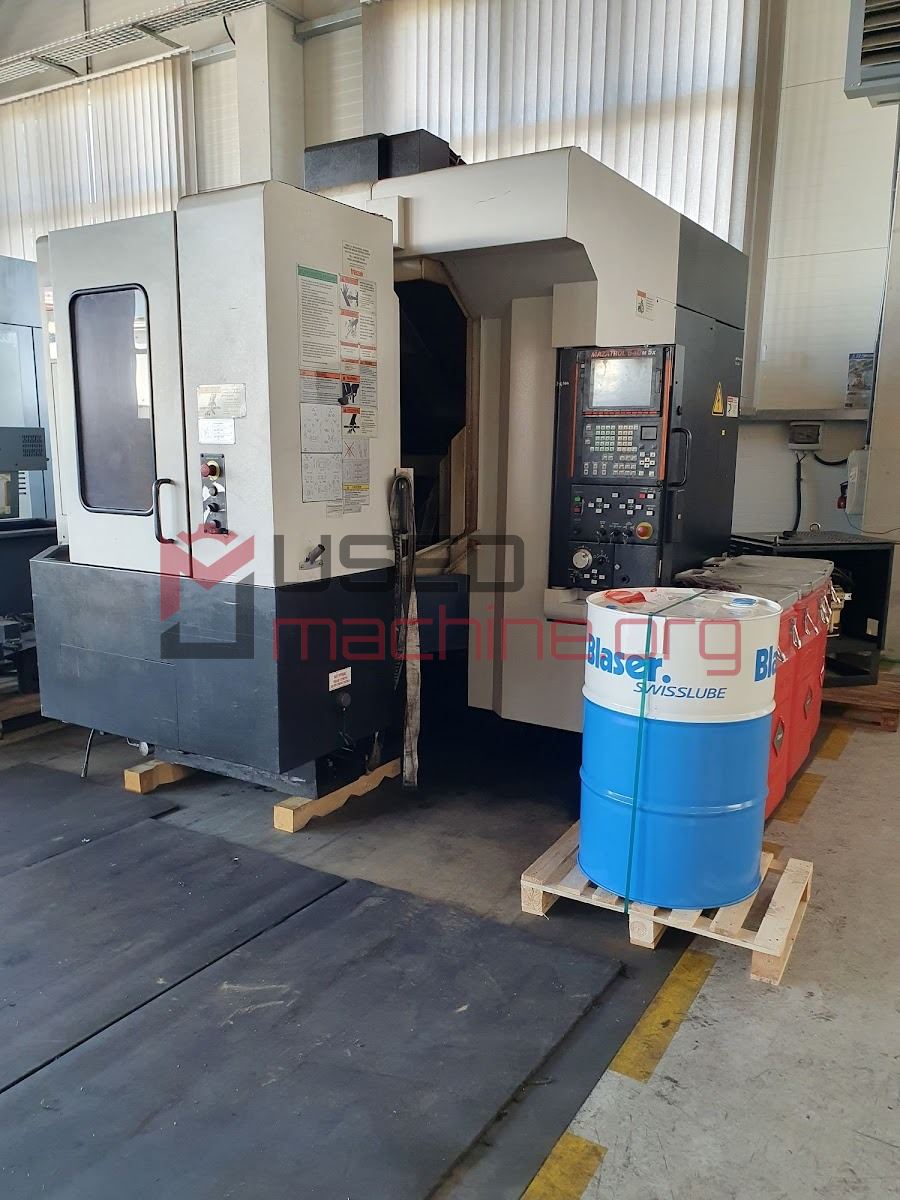

Year: 2005 Control system Mazatrol Fusion 640 M Clamping area of table 400 x 400 mm Travel X-axis 510 mm Travel Y-axis 510 mm Travel Z-axis 460 mm Spindle speed 0 - 12000 /min. Number of driven axes 5 Cooling through spindle YES Pressure of cooling 80 bar Spindle taper ISO 40 . Axis C 0-360 ° Axis A -120 / +30 ° Tool magazine YES Number of positions in magazine 60 Machine weight 11700 kg Number of pallets 2 Machine dimensions l x w x h 2805 × 2880 × 2900 mm The machine is in good technical condition, under power, after agreement is possible to test it.

HURCO VMX24M VERTICAL MACHINING CENTRE FULLY INTERGRATED 4TH & 5TH AXIS SIMULTANEOUS MILLING TABLE 760 X 510 MM YEAR 2010 24 ATC WINMAX CONTROL EVERYTHING RUNNING NICELY , SPINDLE GOOD AND ALL AXIS MOVGING ABOUT NICELY

SCHAUBLIN 48V-15K FANUC 0I-MC CONTROL AXIS MOVEMENTS 480 X 400 Y 430 Z TABLE 600 X 400 TEE SLOTS 14 MM TABLE LOAD 300 KGS 30 TAPER SPINDLE - WITH LOTS OF TOOLING - THOUSANDS OF POUNDS WORTH 20 ATC COOLANT CURRENTLY UNDER PREPARATION , WILL BE READY FOR VIEWING VERY SOON

DUGARD 1000 Y PLUS HEIDENHAIN TNC 530 I CONTROL TABLE SIZE 1200 X 600 MM AXIS TRAVELS - 1000 X 610 X 510 10K SPINDLE BT 40 TAPER 24 ATC TOOL PROBING YEAR 2013 TESTED AND RUNNING PERFECTLY FOR VIEWING PLEASE MAKE AN APPOINTMENT OR WE CAN SEND YOU A VIDEO OF THE MACHINE RUNNING

· Axis travels: X 1626 mm; Y 1270 mm; Z 813 mm · Rated power: 22.4 kW · 2-speed Gamma gearbox · Spindle taper: ISO 50 · Integrated 4th axis: diameter 762 mm · High-pressure pump for through-spindle coolant system · Chip conveyor with auger · Serial number: 2052693

Year: 2015 Control system Siemens Sinumerik 840 D Clamping area of table 2X D 500 mm Travel X-axis 830 mm Travel Y-axis 630 mm Travel Z-axis 630 mm Spindle speed 0 - 20000 /min. Number of driven axes 5 Cooling through spindle NO Spindle taper HSK-A63 . Tool magazine YES Number of positions in magazine 2 x 30 Machine weight 18500 kg Machine dimensions l x w x h 7000x3200x3500 mm

Year: 2010 Control system Heidenhain TNC 530 Clamping area of table 1200x600 mm Travel X-axis 1020 mm Travel Y-axis 610 mm Travel Z-axis 610 mm Spindle speed 10 - 12000 /min. Number of driven axes 3 Cooling through spindle YES Pressure of cooling 20 bar Spindle taper SK 40 . Max. weight of workpiece 500 kg Main motor power 22 kW Rapid feed 40,40,36 m/min Tool magazine YES Number of positions in magazine 30 Machine weight 6970 kg Machine dimensions l x w x h 2920x2820x2860 mm The machine is in good technical condition, under power, after agreement is possible to test it.
