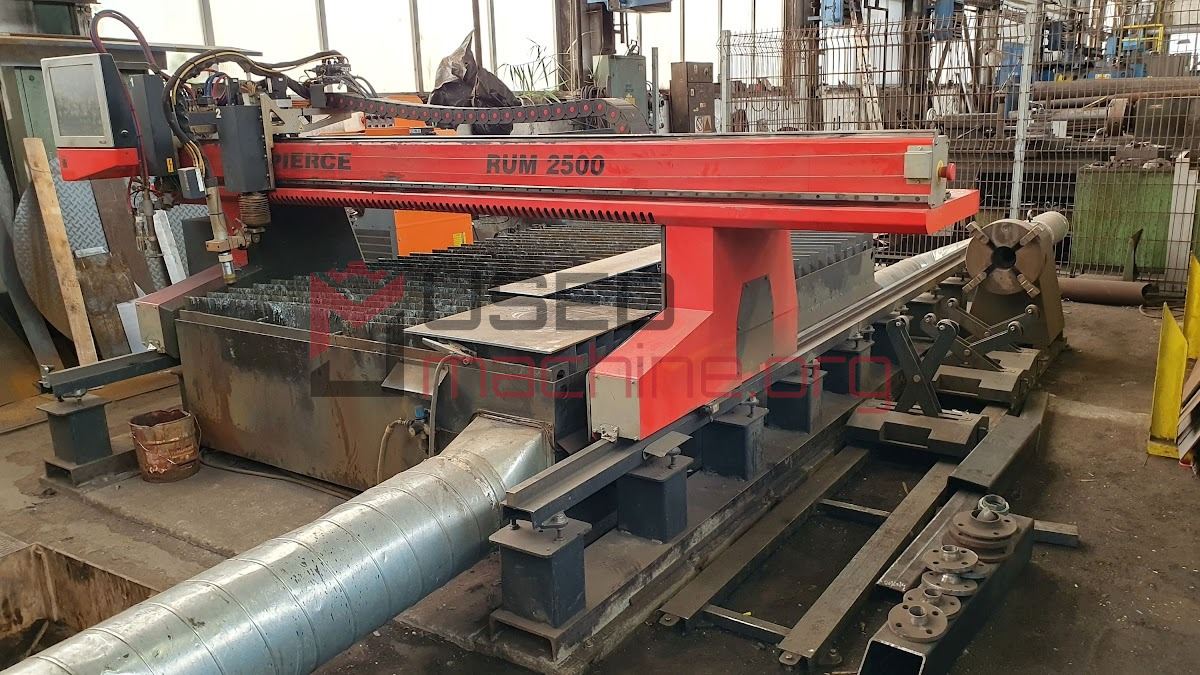

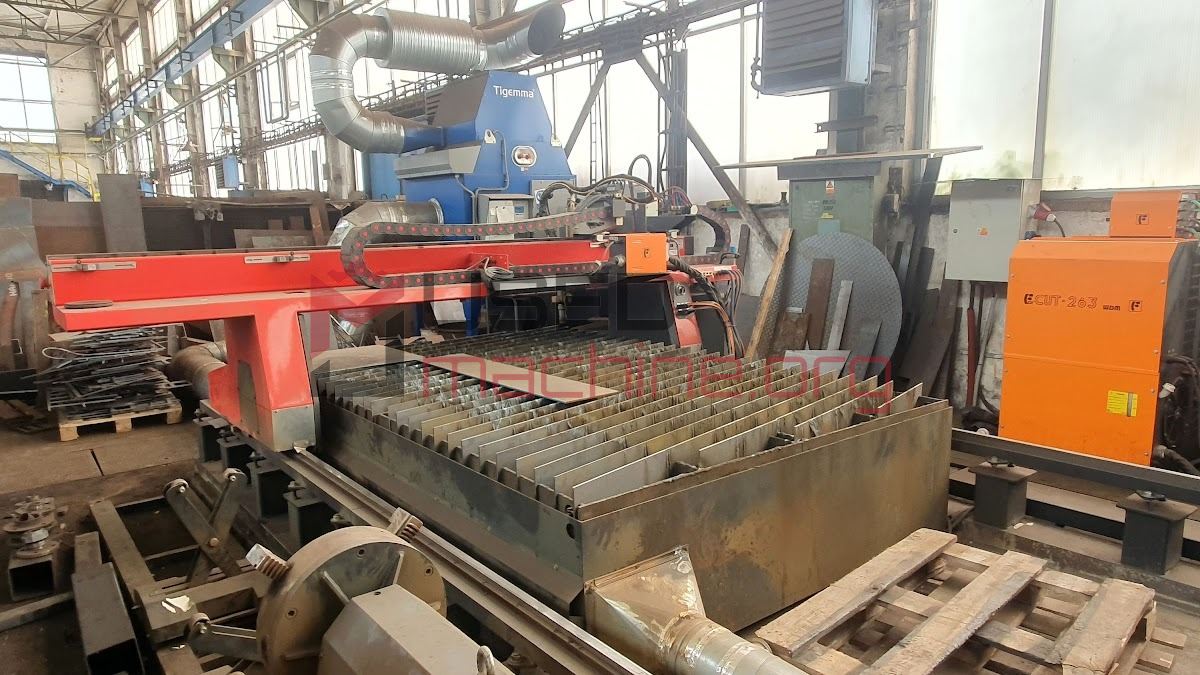

RUM 2500 GP+ - plasma Pierce control automation

Year: 2006 Work surface 3070x1660 mm Rated deformation force press 18 t Travel X-axis 3070 mm Travel Y-axis 1660 mm Max. plate thickness 6,4 mm Tool magazine YES Number of positions in magazine 22 Machine weight 14850 kg Machine dimensions l x w x h 7600x6700x2230 mm The machine is in good technical condition, under power, after agreement is possible to test it.

Year: 2008 Control system Mitsubishi Max. length of cutting 3200 mm Max. plate thickness 10 mm Drive type of shears Hydraulicky Main motor power 15 kW Machine weight 11000 kg Machine dimensions l x w x h 4050x2050x1790 mm The machine is in good technical condition, under power, after agreement is possible to test it.

Year: 2008 Control system Delem DA - 65 W Bending power 160 t Bending length 3200 mm Number of driven axes 3 Lower compensation movement NO Type of press drive Hydraulicky Main motor power 11 kW Machine weight 10000 kg Machine dimensions l x w x h 3500x1650x2580 mm The machine is in good technical condition, under power, after agreement is possible to test it.

Year: 2002 Max. length of workpiece 3000 mm Max. workpiece width 1500 mm Max. plate thickness 12 mm Power of laser 2000 W Fiber NO Total input 71 kVA Machine weight 11500 kg Machine dimensions l x w x h 9800x5300x2000 m The machine is in good technical condition, under power, after agreement is possible to test it.

Year: 2002 Control system SAFAN TS 1 Bending power 50 t Bending length 2550 mm Number of driven axes 4 Lower compensation movement NO Type of press drive Elektricky Max. ram stroke 215 mm Main motor power 9 kW Machine weight 5050 kg The machine is in good technical condition, under power, after agreement is possible to test it.

Catalog No. : 7538Type: CNC HAP 4200Producer: ERMAKMade in: 2008Characteristic: Control system: Delem DA-GGW Pressing force: 200 t Maximum bending lenght: 4100 mm Machine height: 3050 mm Machine length: 5150 mm Machine width: 2250 mm Machine weight: 15000 kg Equipment: Upper tool Lower tool Crowning Back gauge (3 axis lift axis)

Catalog No. : 7414Type: DYNA-PRESS 24/12 PLUSProducer: LVDMade in: -Characteristic: Total hours: 200 h Pressing force: 24 t Max. working length: 1250 mm Width of the bottom table: 60 mm Number of axes: 5 Stroke: 150 mm Machine height: 2160 mm Machine width: 1090 mm Machine weight: 2500 kg Equipment: 3-axis back gauge

Catalog No. : 7876Type: TruMatic 500Producer: TrumpfMade in: 1999Characteristic: Hours on: 62.890 h Pressing force: 220 kN Maximum length of the sheet metal: 2500 mm Maximum sheet width: 1300 mm Max. Sheet thickness: 8 mm Maximum number of tools: 31 Maximum number of strokes: 900 1/min Max. Tool diameter: 76.2 mm Options: burning forming threading

Catalog No. : 7921Type: TruLaser 2030Producer: TrumpfMade in: 2018Characteristic: Maximum power: 4 kW Total hours: 22385 h Hours on: 15990 h Length of the working table: 3000 mm Width of the working table: 1500 mm Maximum table load (evenly distributed): 900 kg Machine height: 2300 mm Machine length: 8276 mm Machine width: 6764 mm Machine weight: 7750 kg

Catalog No. : 7935Type: Trumatic 2000 RProducer: TrumpfMade in: 2003Characteristic: Pressing force: 18 t Maximum length of the sheet metal: 2070 mm Maximum sheet width: 1270 mm Maximum weight of the sheet metal: 75 kg Max. Sheet thickness: 6.4 mm Maximum punching speed: 900 1/min Machine height: 2070 mm Machine length: 6000 mm Machine width: 5600 mm Machine weight: 8000 kg
