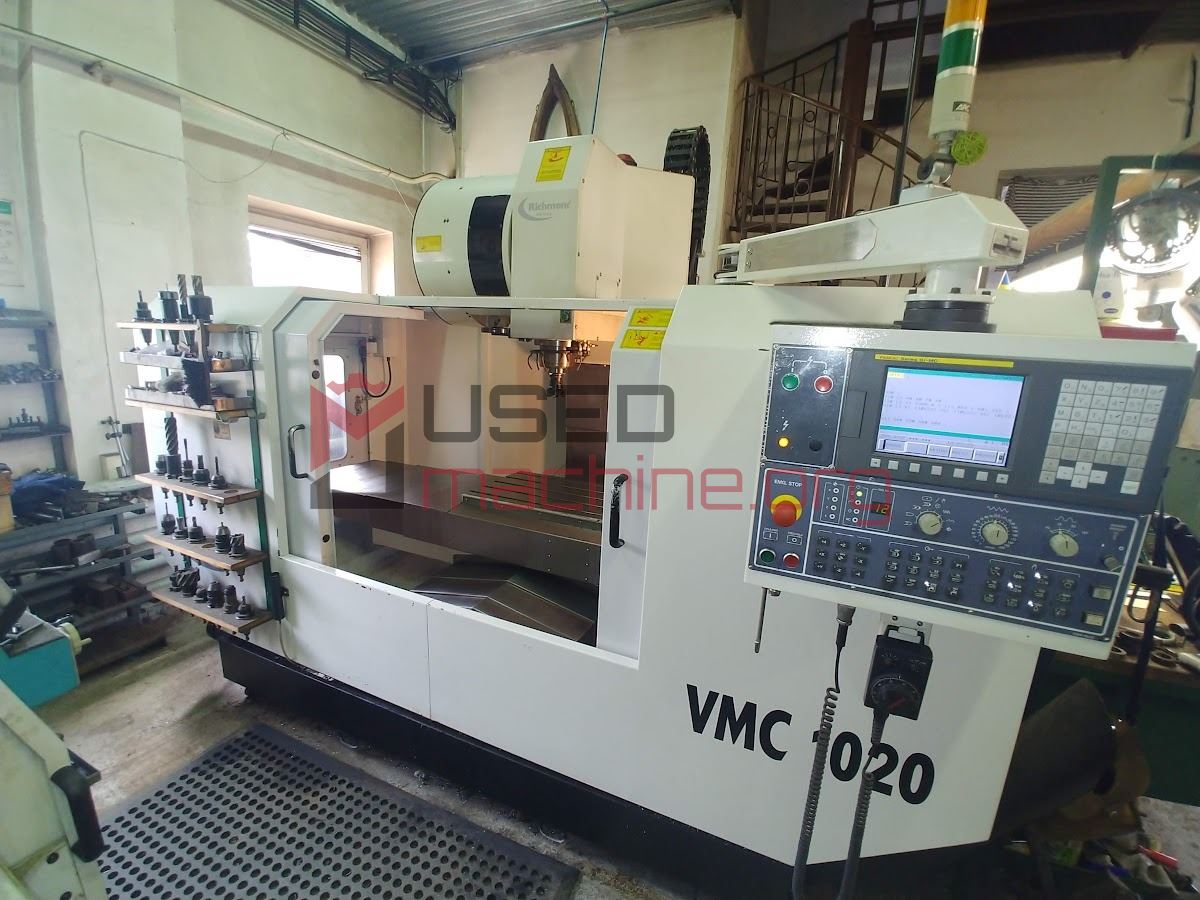

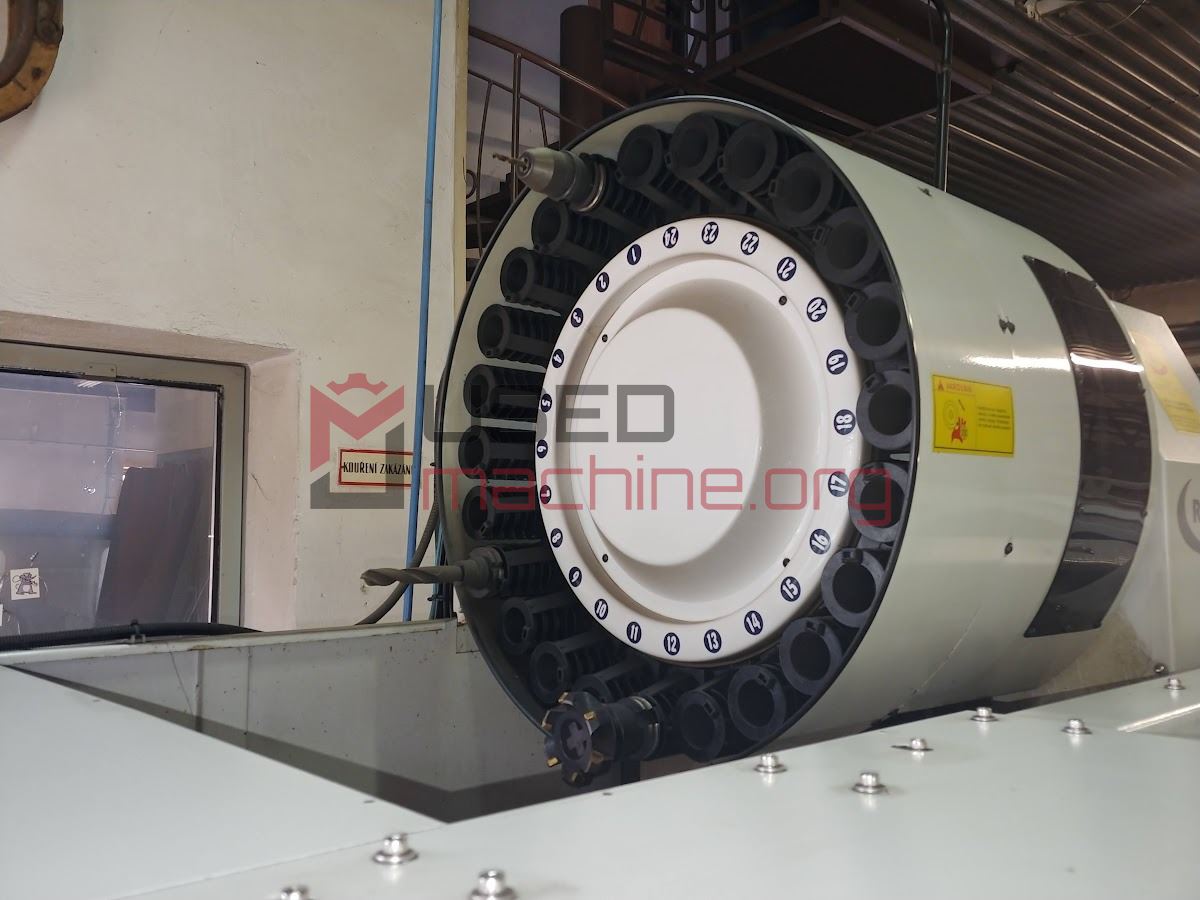

VMC 1020 S / machining centres vertical

Year: 2013 Control system Heidenhain TNC 620 Dimensions of table working surface 908x480 mm Travel X-axis 500 mm Travel Y-axis 400 mm Travel Z-axis 400 mm Spindle speed 50 - 12000 /min. Spindle taper SK 30 . Tool magazine YES Number of positions in magazine 20 Main motor power 9,5 kW Machine weight 3000 kg Cooling through spindle NO Machine dimensions l x w x h 1700x1900x2500 mm The machine is in a good technical condition. Not under power.
