Vertical Lathes - Double Column

Control system Siemens Sinumerik 840 D Max. diameter of workpiece 2500 mm Clamping diameter of rotary table 2240 mm Max. load of table kg Max. workpiece height 1250 mm Ram travel (Z) 1000 mm Ram size mm Driven Tools NO Tool magazine NO Max. weight of workpiece 10000 kg Main motor power 55 kW Space of machine dxšxv 7000x4400x5500 mm Machine weight 37900 kg

Control system Siemens Sinumerik 840 D Max. diameter of workpiece 3200 mm Clamping diameter of rotary table 3000 mm Max. load of table 14000 kg Max. workpiece height 2200 mm Ram travel (Z) 1155 mm Ram size mm Driven Tools NO Tool magazine NO Max. weight of workpiece 14000 kg Main motor power 81 kW Space of machine dxšxv 7200x6400x6600 mm

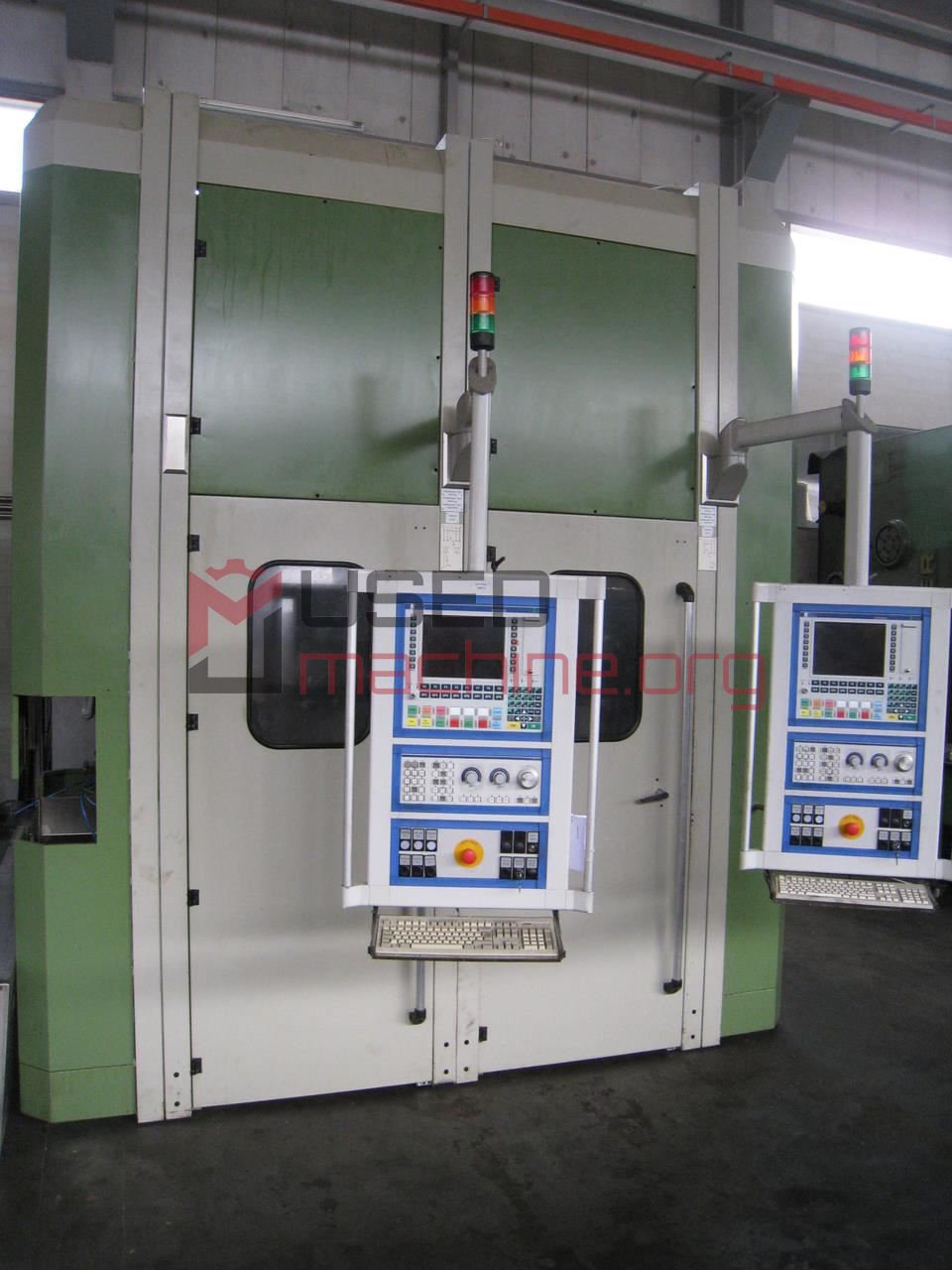

stock no. :15000Machine's group :Double vertical turning latheType :SCHUSTER VTM 350Controller :REXROTH INDRAMAT System 200 BTV 20Year :2000 LINK
