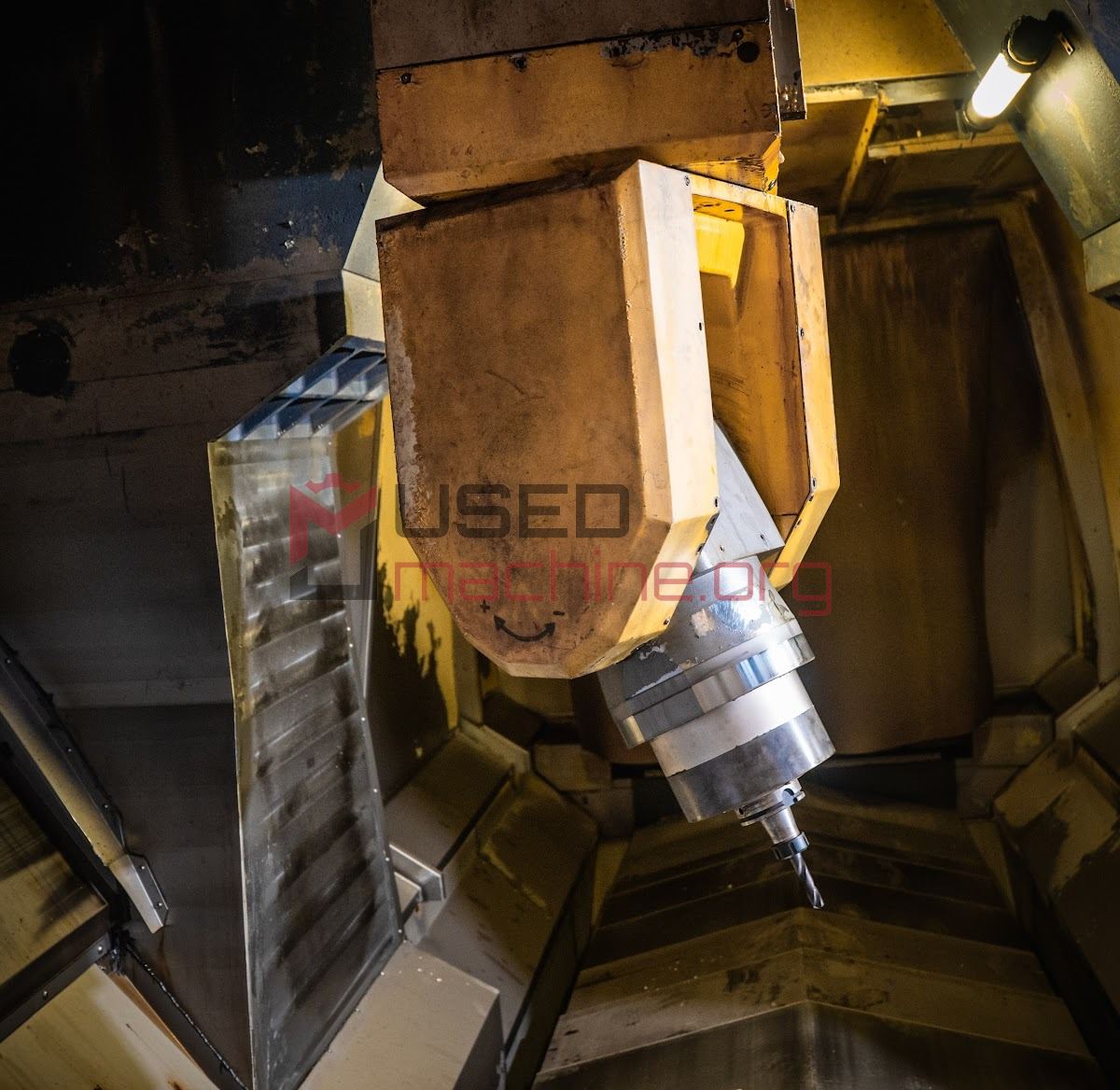

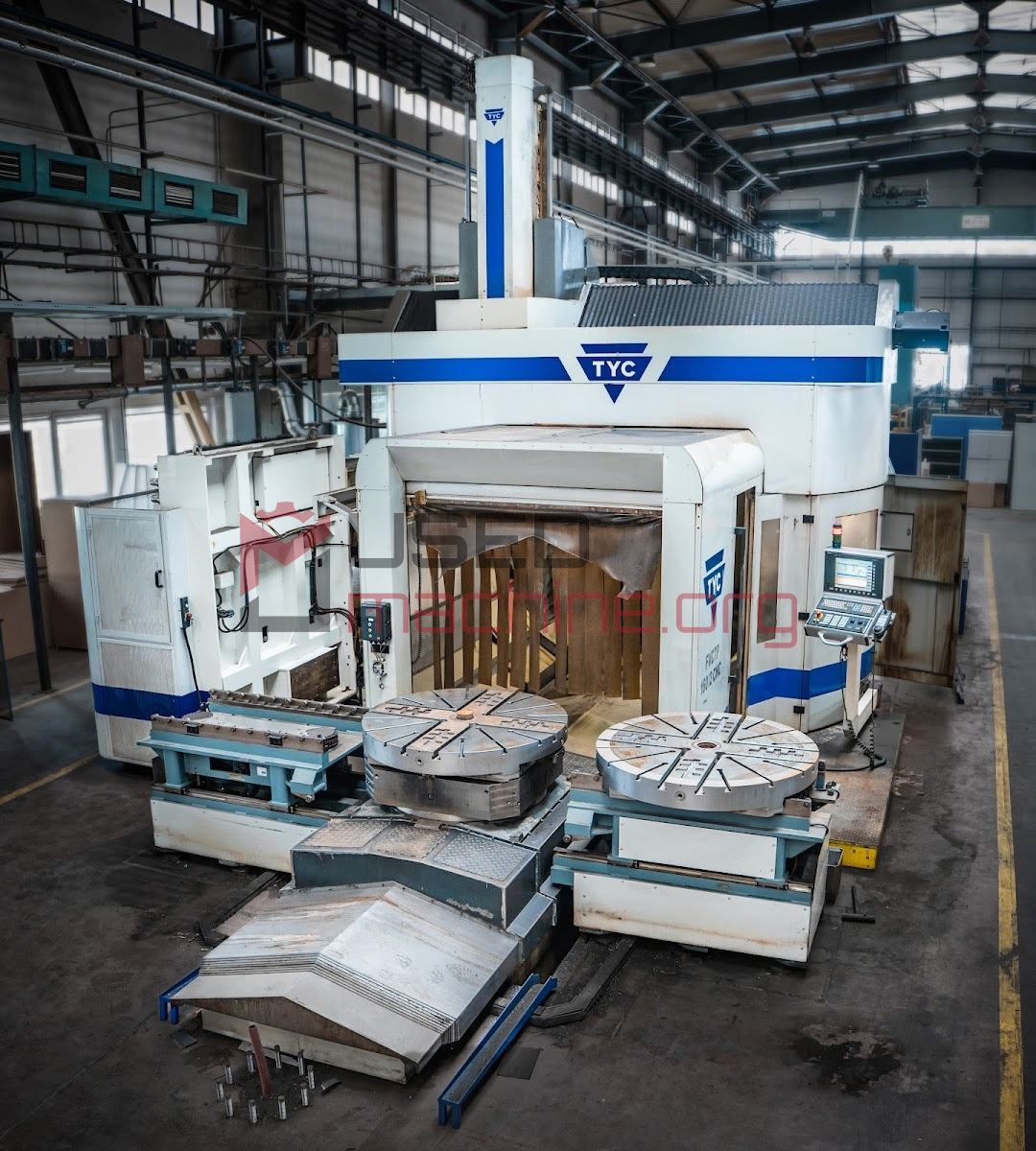

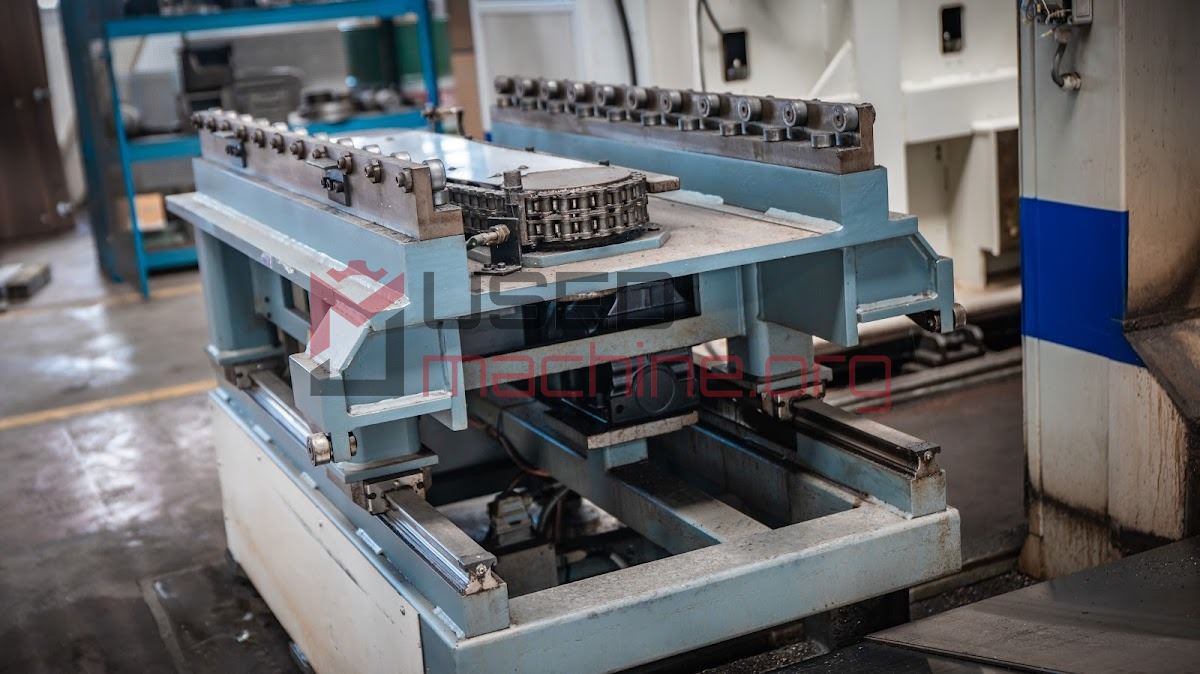

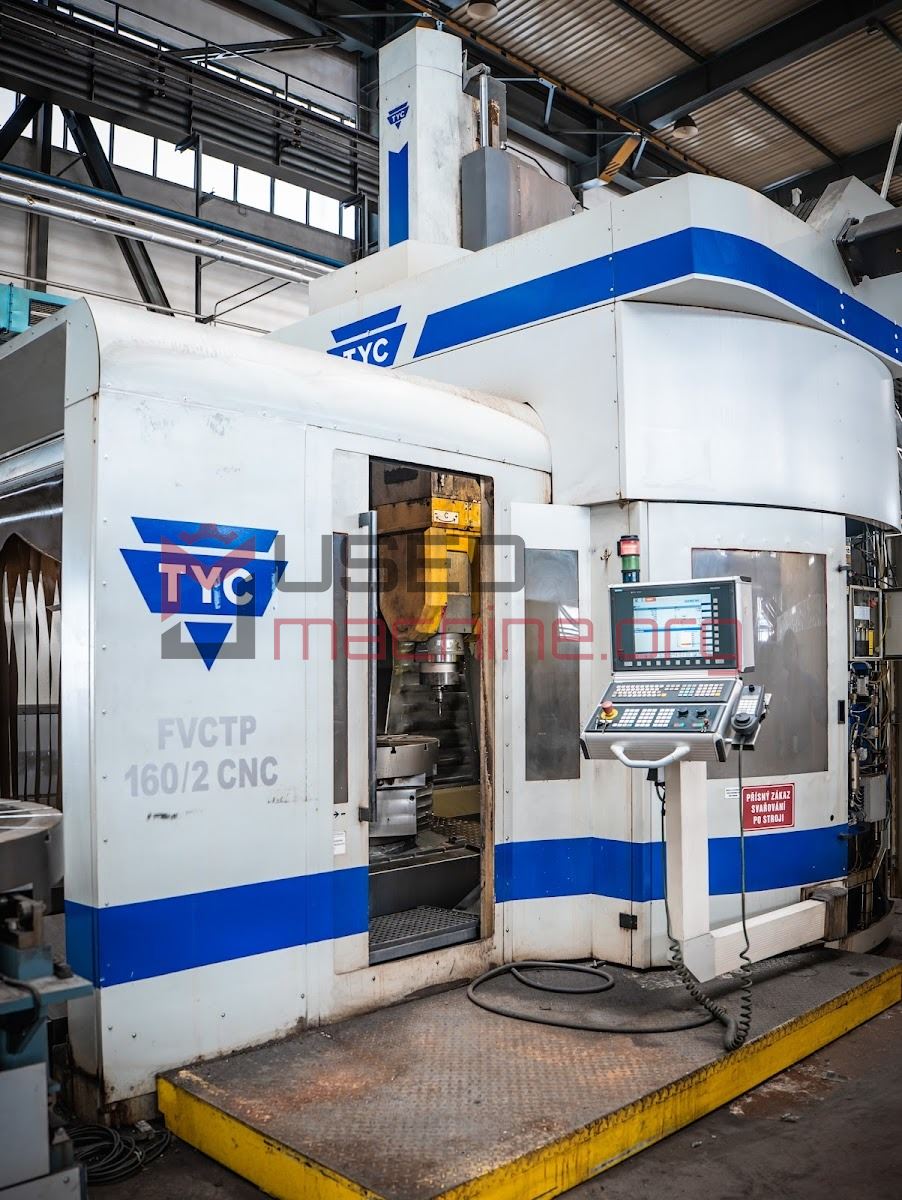

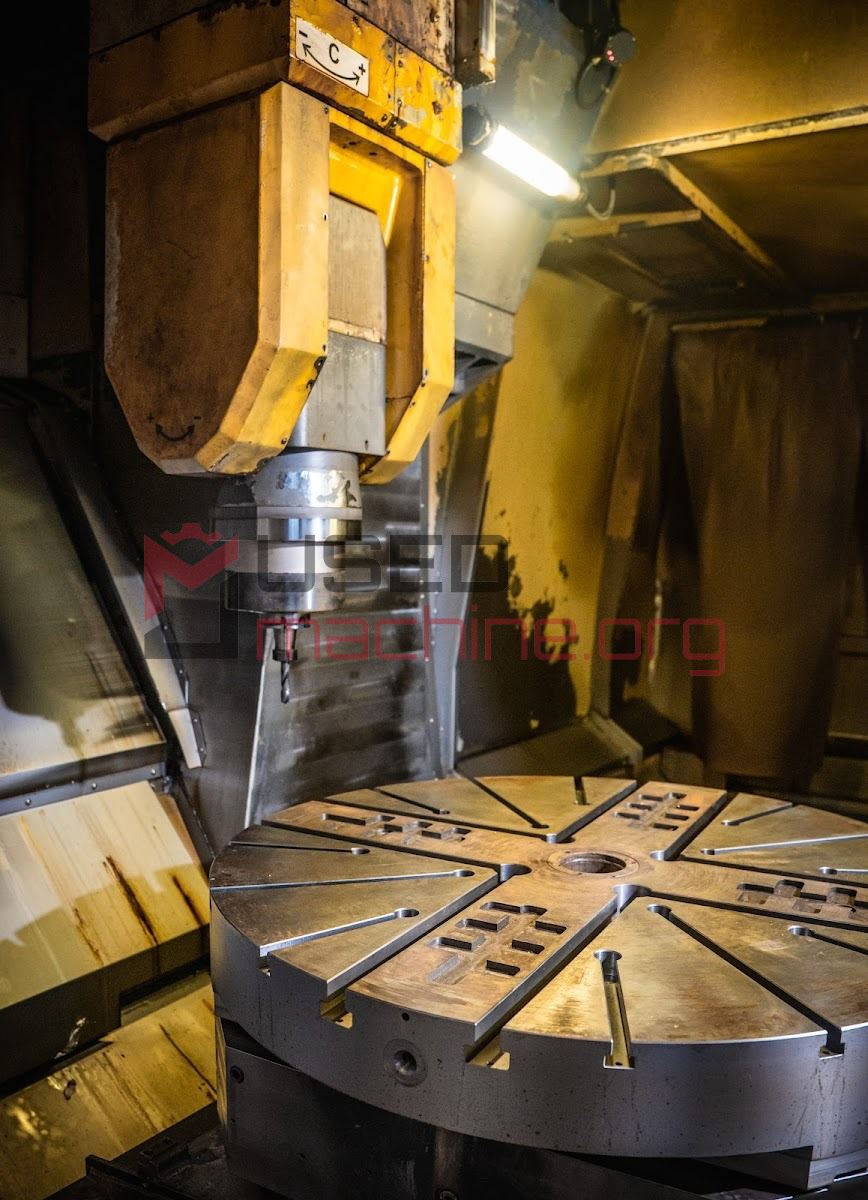

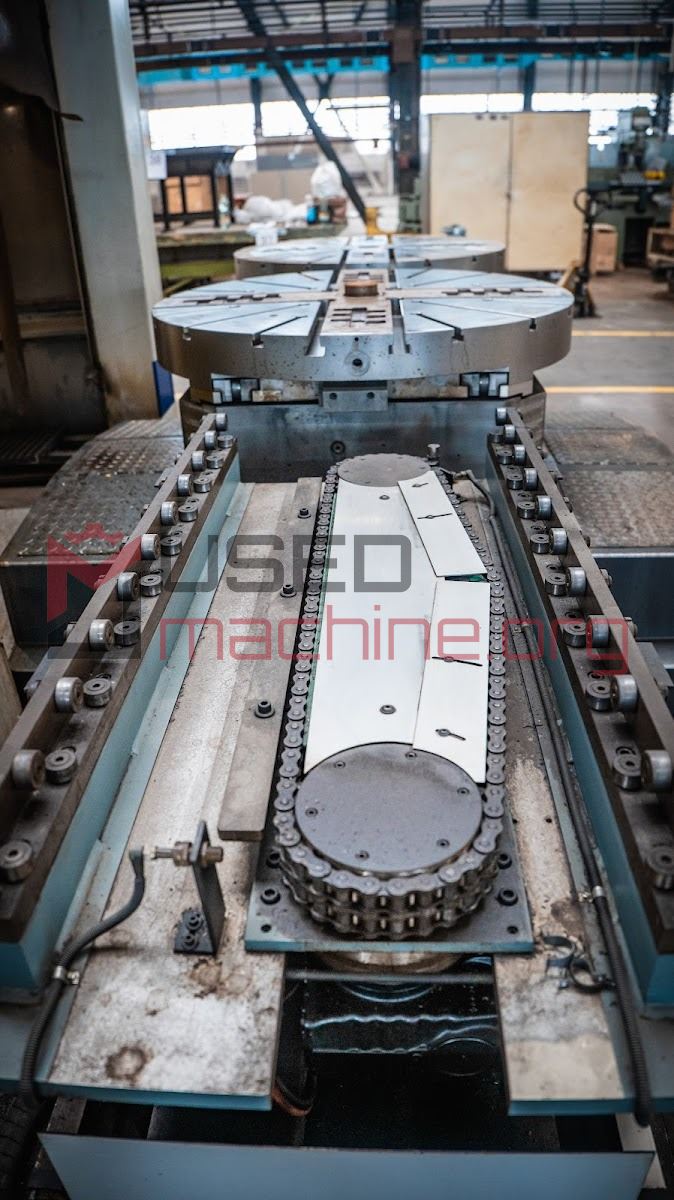

STROJÍRNA TYC FVCTP 160/2 CNC - Plano Milling machine

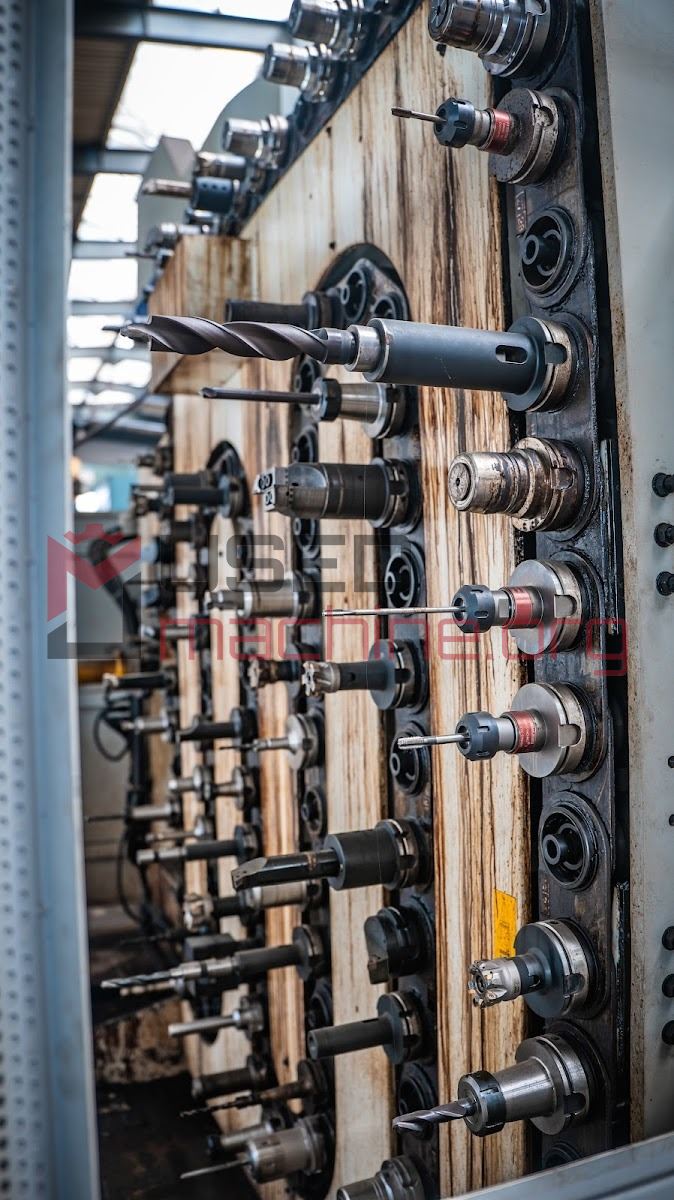

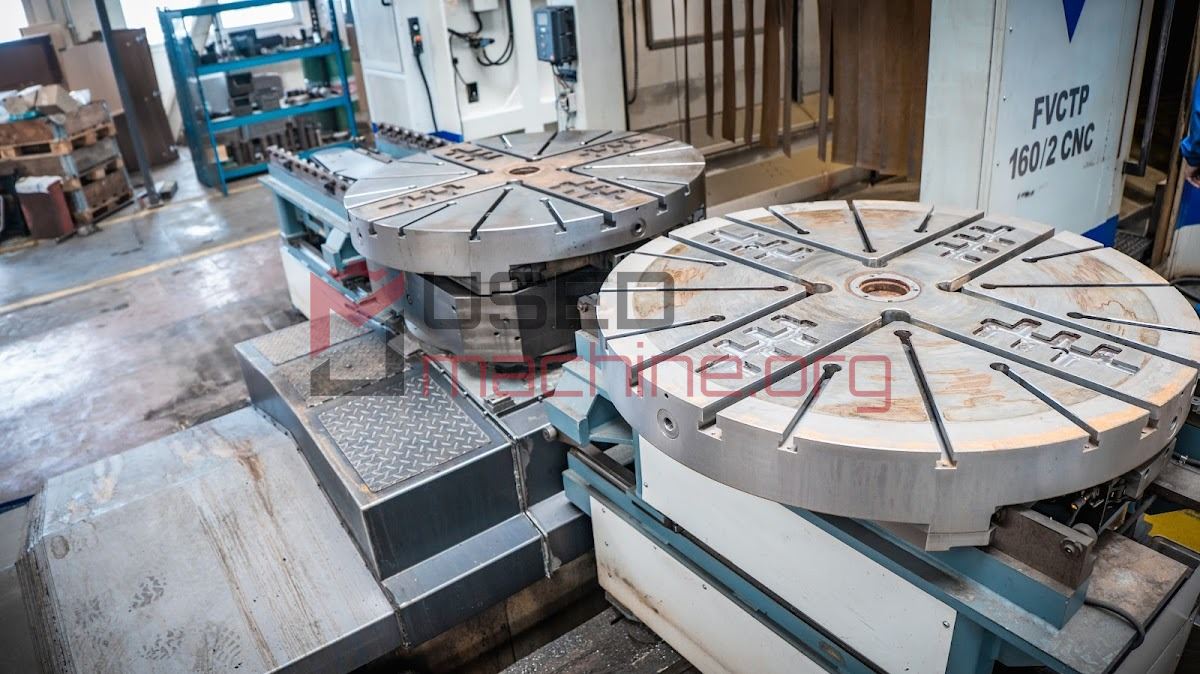

Control system Heidenhain TNC 640 Diameter of working spindle 110 mm Travel X-axis 3000 mm Travel Y-axis 2000 mm Spindle speed 10 - 4000 /min. Cooling through spindle YES Pressure of cooling 70 bar Spindle travel - W axis 730 mm Travel Z-axis 1250 mm Tool magazine YES Number of positions in magazine 40 Spindle taper ISO 50 . Table dimensions 1400x1800 mm Max. load of table 8000 kg Main motor power 31 kW Machine weight 20800 kg Machine dimensions l x w x h 6250 x 5600 x 4450 mm CNC on: 3,158 hrs spindle: 1,095 hrs Zeropoint at rotary table Hexagon workpiece probe

Year: 1968 Max. length of grinding 1000 mm Max. width of grinding 300 mm Max. workpiece height 450 mm Spindle bearing grinders Vertikální Clamping area of table 300x1000 mm Main motor power 15 kW Machine dimensions l x w x h 3825x1515 mm Machine weight 3500 kg

Rok. :2006 Rídící systém Heidenhain TNC 530 Upínací plocha stolu 800x500mm Pojezd osy X 500mm Pojezd osy Y 500mm Pojezd osy Z 500mm Otácky vretene 0-10000/min. Pocet rízenych os 3 Upínací kuzel vretena ISO40. Rozmery d x š x v 2085x1900x2550mm Hmotnost stroje 3800kg Pocet pozic v zásobníku nástroju 20 Vykon hlavního elektromotoru 5kW Stroj je ve velmi dobrém technickém stavu, pripojeny pod proudem, moznost odzkoušet. Príslušenství: obrobková a nástrojová sonda.

Year: 2010 Control system Siemens Sinumerik 840 D Max. diameter of workpiece 1500 mm Clamping diameter of rotary table 1250 mm Max. load of table 12000 kg Max. workpiece height 1570 mm Ram travel (Z) 1000 mm Ram size 800 mm Driven Tools NO Tool magazine YES Number of positions in magazine 15 Face plate diameter 1250 mm Max. ram stroke 1000 mm Max. weight of workpiece 8000 kg Rapid feed 8000 m/min Total input 63 kVA Main motor power 40 kW Machine weight 22000 kg

Control system Siemens Sinumerik 840 D Max. diameter of workpiece 1400 mm Clamping diameter of rotary table 1250 mm Max. load of table 8000 kg Max. workpiece height 1250 mm Ram travel (Z) 700 mm Ram size 1000 mm Driven Tools YES Tool magazine YES Number of positions in magazine 15 Spindle speed 2 - 250 /min. Main motor power 40 kW Speed driven tools 8 - 3312 /min

Control system Heidenhain TNC7 Dimensions of table working surface 6000x2900 mm Travel X-axis 7200 mm Clearance between columns 3200 mm Distance between table and cross-rail mm Travel Y-axis 4100 mm Travel Z-axis 1250 mm Spindle speed 0 - 3000 /min. Max. load of table 20 000 kg Scope of the modernization in 2026: Installation of the new FERMAT headstock • New UHAmi30 universal head from FERMAT • Crossbeam in a sliding design • Workplace safety measures in CE compliance • New electrical and hydraulic systems Price 1.100.000,- EUR • New Heidenhain TNC 7 control system • New Heidenhain measuring systems • New linear guides • New feed screws • New spindle-center cooling • New tool changer

Control system Heidenhain TNC 640 Dimensions of table working surface 4000x2000 mm Travel X-axis 4000 mm Clearance between columns 2500 mm Distance between table and cross-rail 1890 mm Travel Y-axis 2700 mm Travel Z-axis 1250 mm Spindle speed 0 - 5500 /min. Max. load of table 15 000 kg Scope of the modernization in 2026 • Installation of the new FERMAT headstock • New electrical and hydraulic systems • New Heidenhain iTNC 640 control system • New Heidenhain measuring systems • New linear guides • New feed screws • New spindle-center cooling • Workplace safety measures in CE compliance • New angle heads as an option • New tool changer as an option

Control system Heidenhain TNC 430 Dimensions of table working surface 800 x 400 mm Travel X-axis 500 mm Travel Y-axis 400 mm Travel Z-axis 400 mm Spindle taper ISO 40 . Spindle speed 0 - 4000 /min. Max. weight of workpiece 300 kg Machine dimensions l x w x h 2800x2700x1980 mm Machine weight 2600 kg Main motor power 5,5 kW The machine is in good technical condition, with the possibility of testing under power. Video: youtube.com/watch?v=-0zq1eG3iZ0&time_continue=8&source_ve_path=NzY3NTg&embeds_referring_euri=https%3A%2F%2Fwww.fermatmachinery.com%2F

Year: 2011 Control system Haas Clamping area of table 1321 x 584 mm Travel X-axis 1016 mm Travel Y-axis 660 mm Travel Z-axis 635 mm Spindle speed 0 - 7500 /min. Number of driven axes 4 Cooling through spindle YES Pressure of cooling 20 bar Spindle taper ISO 50 . Tool magazine YES Number of positions in magazine 30 Max. torque of spindle 610 Nm Machine dimensions l x w x h 4322 x 2495 x 3302 mm The machine is in good technical condition, testing is possible. Max. power 22.4 kW, spindle drive via an automatic 2-speed gearbox. Accessories: 4th axis HAAS HRT 310, Renishaw workpiece and tool probes, tool holders. The Haas VF-3YT/50 vertical machining center represents a high-performance solution for demanding milling operations requiring stability and power. Thanks to its robust design and integrated Haas control system, the machine is ideal for precise heavy-duty machining of medium-sized workpieces and complex molds. The main benefit is the effective through-spindle coolant system,

Year: 1978/2024 Swing over bed 710 mm Max. length of workpiece 4000 mm Swing over cross slide 420 mm Spindle speed 90 - 1000 /min. Machine dimensions l x w x h 6000x1440x1560 mm Machine weight 3500 kg The machine is after a complete overhaul and modernisation. Stored in Brno warehouse. Can be tested after agreement. Overhaul details available on request. 1x steady rest
