Karusselldrehmaschinen, Einständer

Year: 1978 Max. diameter of workpiece 8000 mm Clamping diameter of rotary table 6300 mm Max. load of table 300000 kg Max. workpiece height 5000 mm Ram travel (Z) 2800 mm Ram size mm Driven Tools NO Tool magazine NO The machine is in good technical condition, under power, after agreement it is possible to test it. Maximum deviation of the slider from the vertical ± 30 Cone turning without interchangeable wheels - range ± 30 Feed rate continuously variable: -working feeds 0.6 - 120mm.min-1 -fast feed 6 - 1200mm.min-1 Rapid traverse of slides and sliders 1 200mm.min-1 Cross member adjustment speed 500mm.min-1 Largest cutter diameter 400mm Board speed continuously variable: 1st stage 0.218 - 5.99 rpm 2nd stage 0.731 - 20.06 rpm Milling: 1st stage 0.0008 - 0.158 rpm 2nd stage 0.0027 - 0.53 rpm Realized repairs in 2015: - complete replacement of electrical installation - replacement of slide and slide measuring - repair of hydrostatics and storage of the table

Year: 2017 Control system Siemens Sinumerik 840D Sl Max. diameter of workpiece 1100 mm Clamping diameter of rotary table 800 mm Max. load of table 4000 kg Max. workpiece height 690 mm Ram travel (Z) 630 mm Ram size 180x200 mm Driven Tools NO Tool magazine YES Number of positions in magazine 15 Table rotation 2 - 400 /min Main motor power 58 kW The machine is in very good technical condition, under power, after agreement is possible to test it.

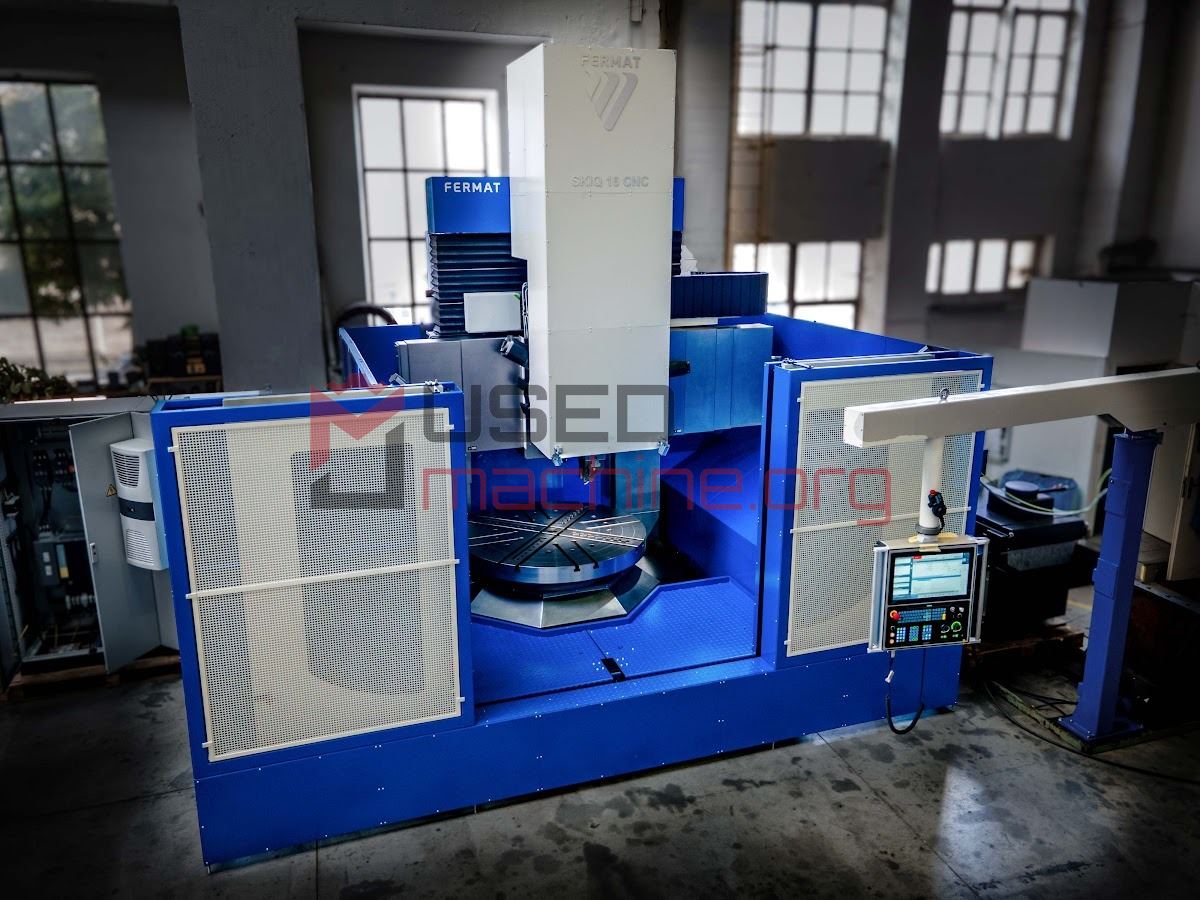

Control system Siemens Sinumerik ONE Max. diameter of workpiece 1800 mm Clamping diameter of rotary table 1600 mm Max. load of table 12000 kg Max. workpiece height 1275 mm Ram travel (Z) 1000 mm Ram size 180x220 mm Driven Tools YES Number of tool positions (driven) 15 Tool magazine YES Number of positions in magazine 15 Axis C 360 ° Cooling through spindle YES Pressure of cooling 20 bar Working feed 4000 mm/min Rapid feed 10000 m/min Main motor power 60 kW Rotations of clamping plate 2 - 200 /min Speed driven tools 8 - 3300 /min Power of driven tools 19,5 kW Machine weight 27200 kg Machine dimensions l x w x h 5700 x 7000 x 5900 mm Machine completely overhauled 2025. Under the power on Fermat stock. Full - way positioning C axis (boring, milling with continuous controllable worktop and driving tools). Full machine covering with CE declaration. 12 months warranty. Full machine documentation. Chip conveyor. Cooling device. Price does not includes tools (option).

Year: 2008 Control system Siemens Sinumerik 840 D Max. diameter of workpiece 3000 mm Clamping diameter of rotary table 2800 mm Max. load of table 18000 kg Max. workpiece height 1800 mm Ram travel (Z) 1400 mm Ram size 320 mm Driven Tools NO Tool magazine YES Number of positions in magazine 12 Main motor power 50 kW Machine weight 40000 kg under power in very good condition

Year:: 2025 Control system Siemens Sinumerik ONE Max. diameter of workpiece 2200 mm Clamping diameter of rotary table 2000 mm Max. load of table 20000 kg Max. workpiece height 1710 mm Ram travel (Z) 1000 mm Ram size 180 x 200 mm Driven Tools YES Number of tool positions (driven) 15 Tool magazine YES Number of positions in magazine 15 Main motor power 58 kW Machine dimensions l x w x h 6700x10400x6400 mm Power of driven tools 19,5 kW Speed driven tools 8 - 3300 /min Working feed 4000 mm/min Rapid feed 10000 m/min Axis C 360 ° Cooling through spindle YES Pressure of cooling 20 bar Rotations of clamping plate 2 - 160 /min Machine weight 32000 kg Machine completely overhauled 2025. Under the power on Fermat stock. Full - way positioning C axis (boring, milling with continuous controllable worktop and driving tools). Full machine covering with CE declaration. 12 months warranty. Full machine documentation. Chip conveyor. Cooling device. Price does not includes tools (option).

Catalog No. : 8010Type: SKJ 20 A CNCProducer: TOSMade in: 1972, GO 2006Characteristic: Control system: OS MEFI 859 CNC Diameter of the table: 2000 mm Clamping plate speed: 200 1/min Max. turning diameter: 2300 mm Slider stroke: 1000 mm Max. diameter of workpiece: 2300 mm Max. workpiece height: 1500 mm Max. workpiece weight: 15000 kg Length: 5800 mm Width: 3500 mm Height: 5100 mm Weight: 42000 kg Equipment: Side support Clamping plate vises Technical books

stock no. :21903Machine's group :CNC turning, milling and grinding centreType :CARNAGHI PIETRO AFT 16 TM/SHController :SIEMENS SINUMERIK 840 CLINK
