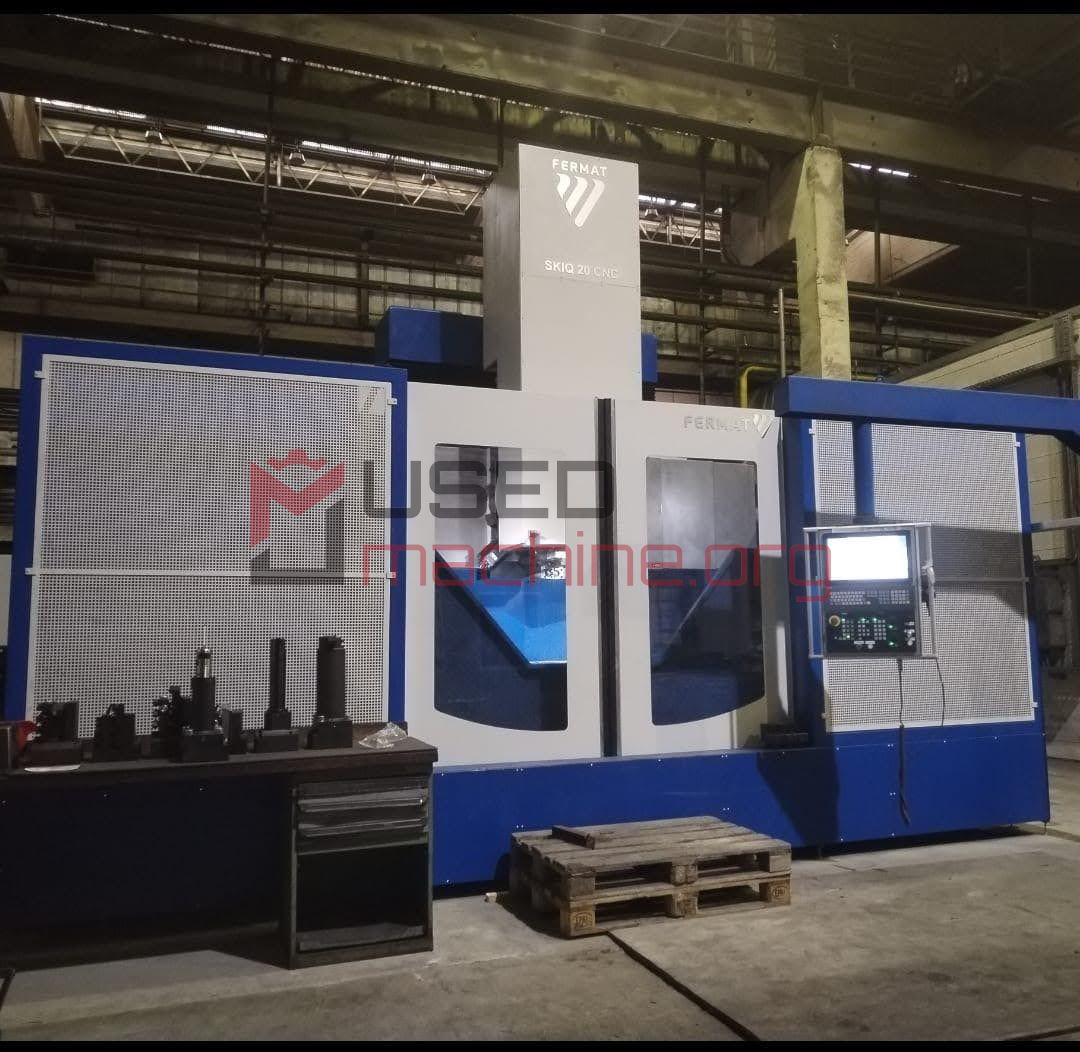

SKIQ 20 CNC - vertical lathes - single column

Year:: 2025

Control system Siemens Sinumerik ONE

Max. diameter of workpiece 2200 mm

Clamping diameter of rotary table 2000 mm

Max. load of table 20000 kg

Max. workpiece height 1710 mm

Ram travel (Z) 1000 mm

Ram size 180 x 200 mm

Driven Tools YES

Number of tool positions (driven) 15

Tool magazine YES

Number of positions in magazine 15

Main motor power 58 kW

Machine dimensions l x w x h 6700x10400x6400 mm

Power of driven tools 19,5 kW

Speed driven tools 8 - 3300 /min

Working feed 4000 mm/min

Rapid feed 10000 m/min

Axis C 360 °

Cooling through spindle YES

Pressure of cooling 20 bar

Rotations of clamping plate 2 - 160 /min

Machine weight 32000 kg

Machine completely overhauled 2025.

Under the power on Fermat stock.

Full - way positioning C axis (boring, milling with continuous controllable worktop and driving tools).

Full machine covering with CE declaration.

12 months warranty.

Full machine documentation.

Chip conveyor.

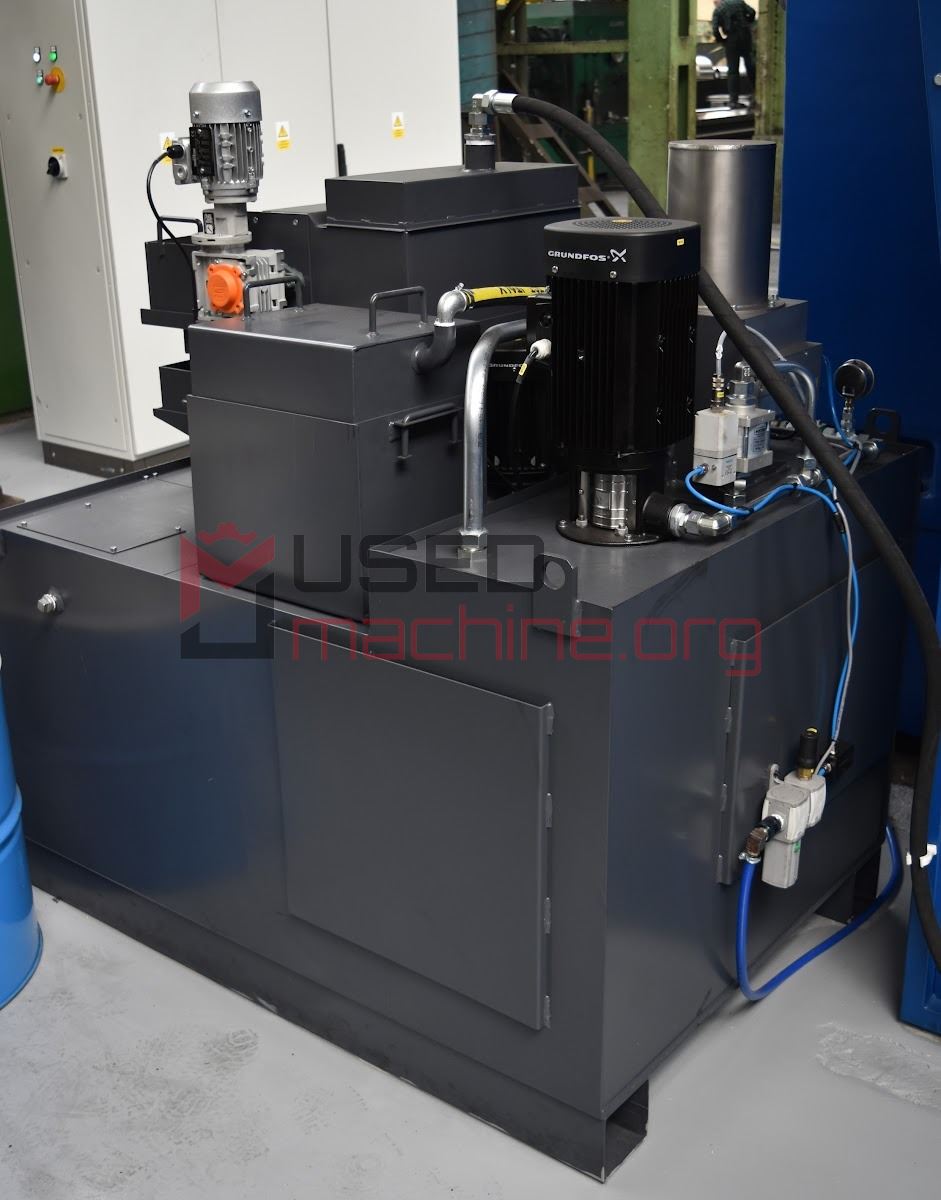

Cooling device.

Price does not includes tools (option).
