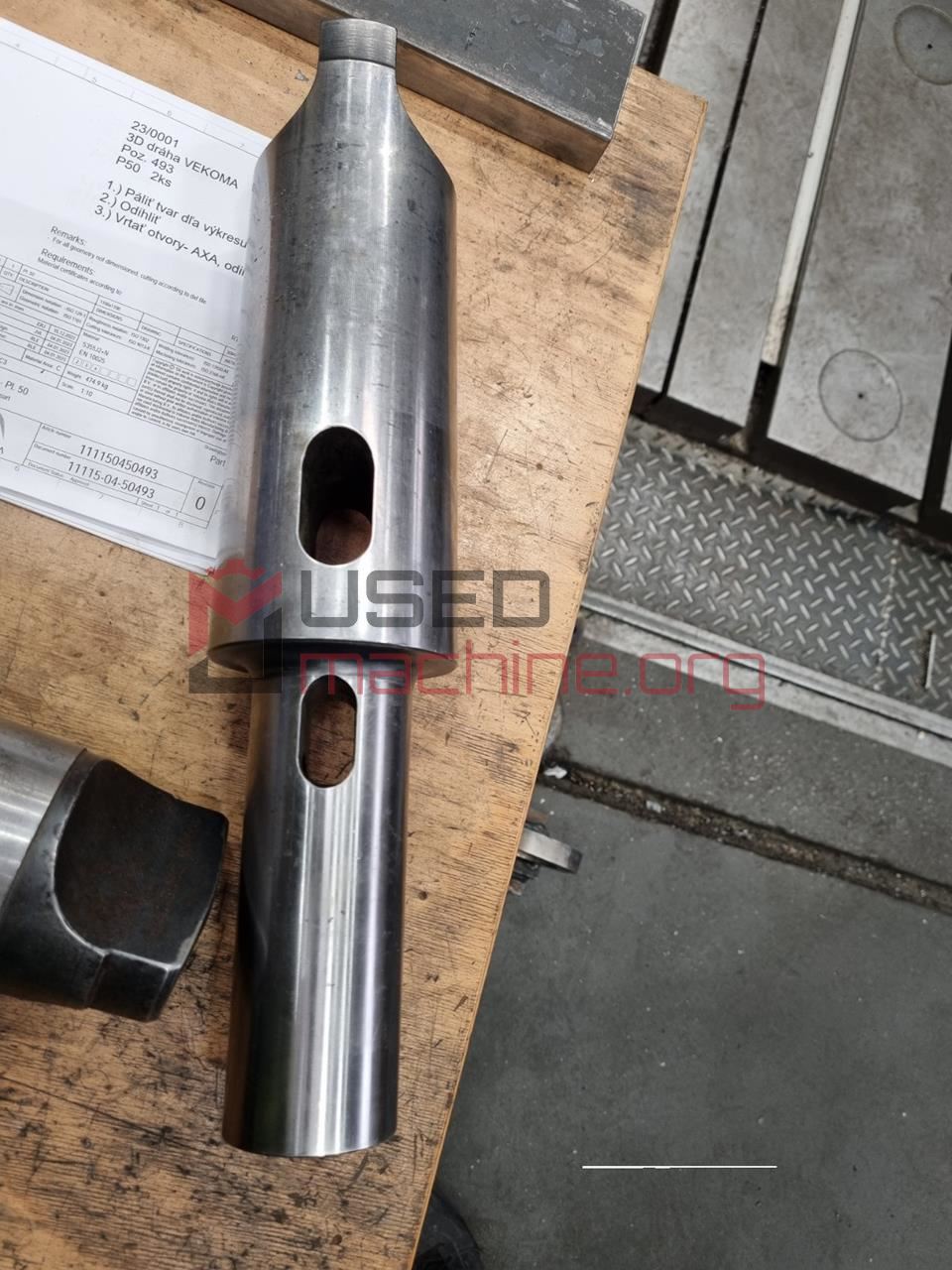

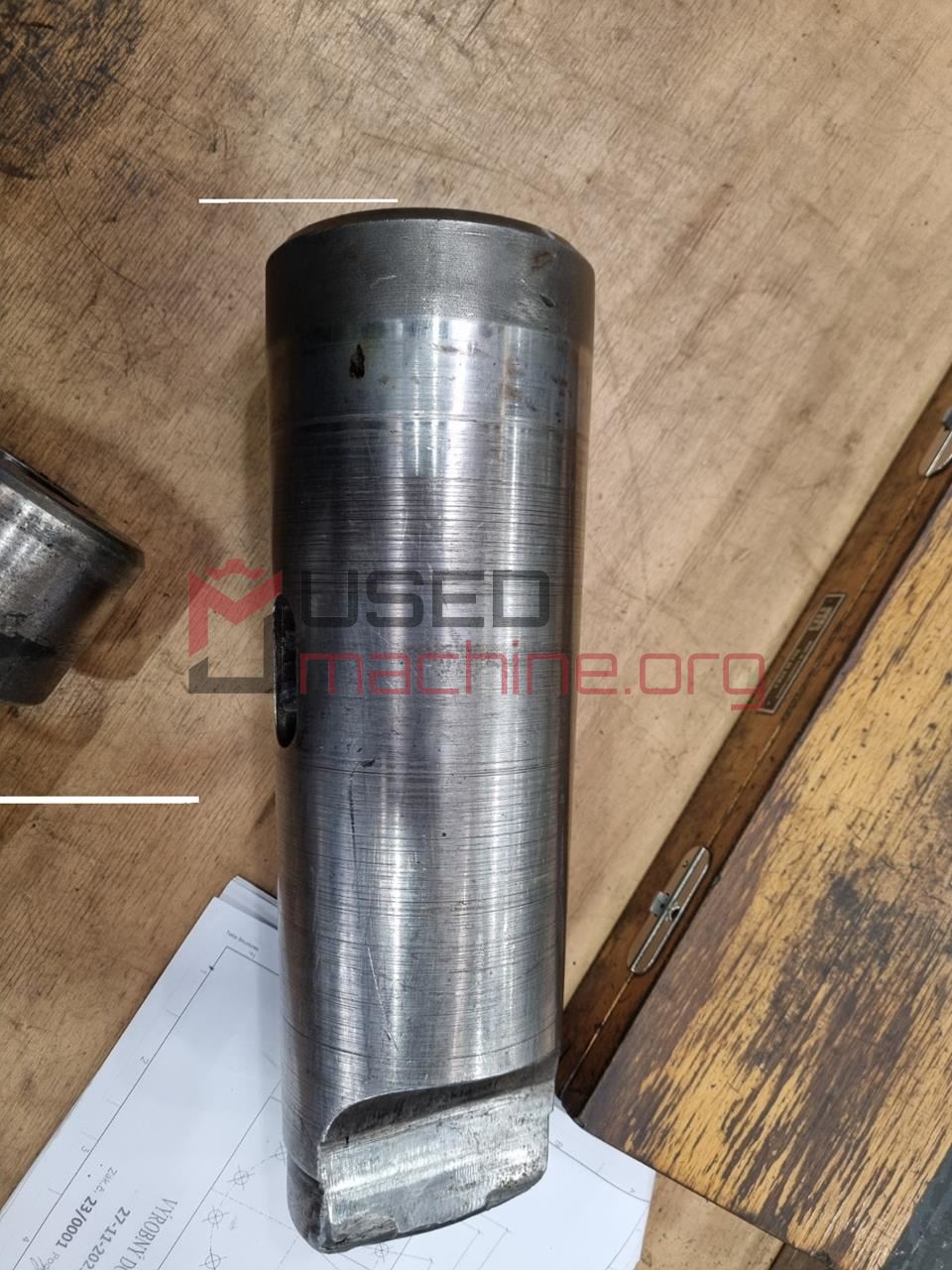

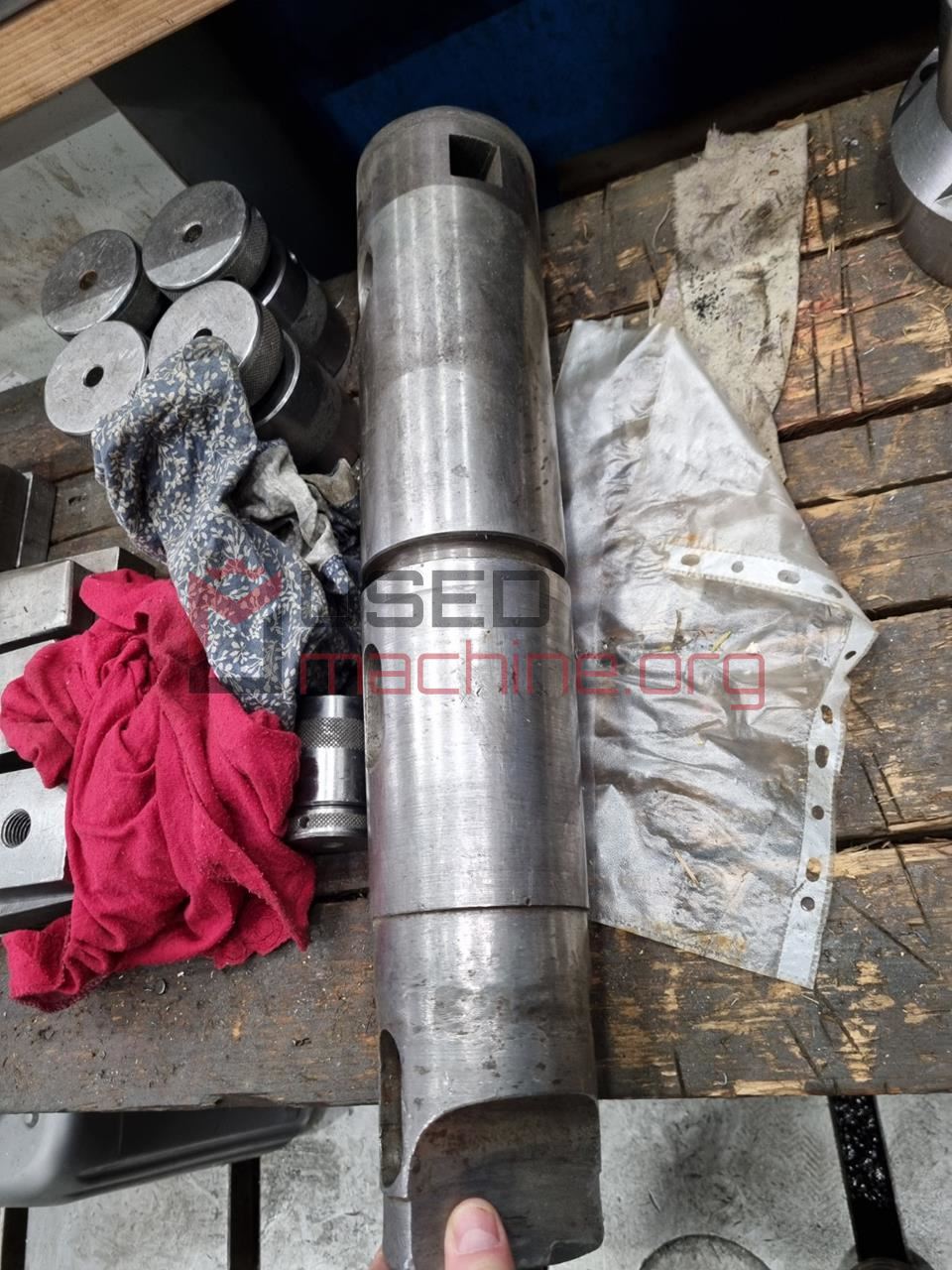

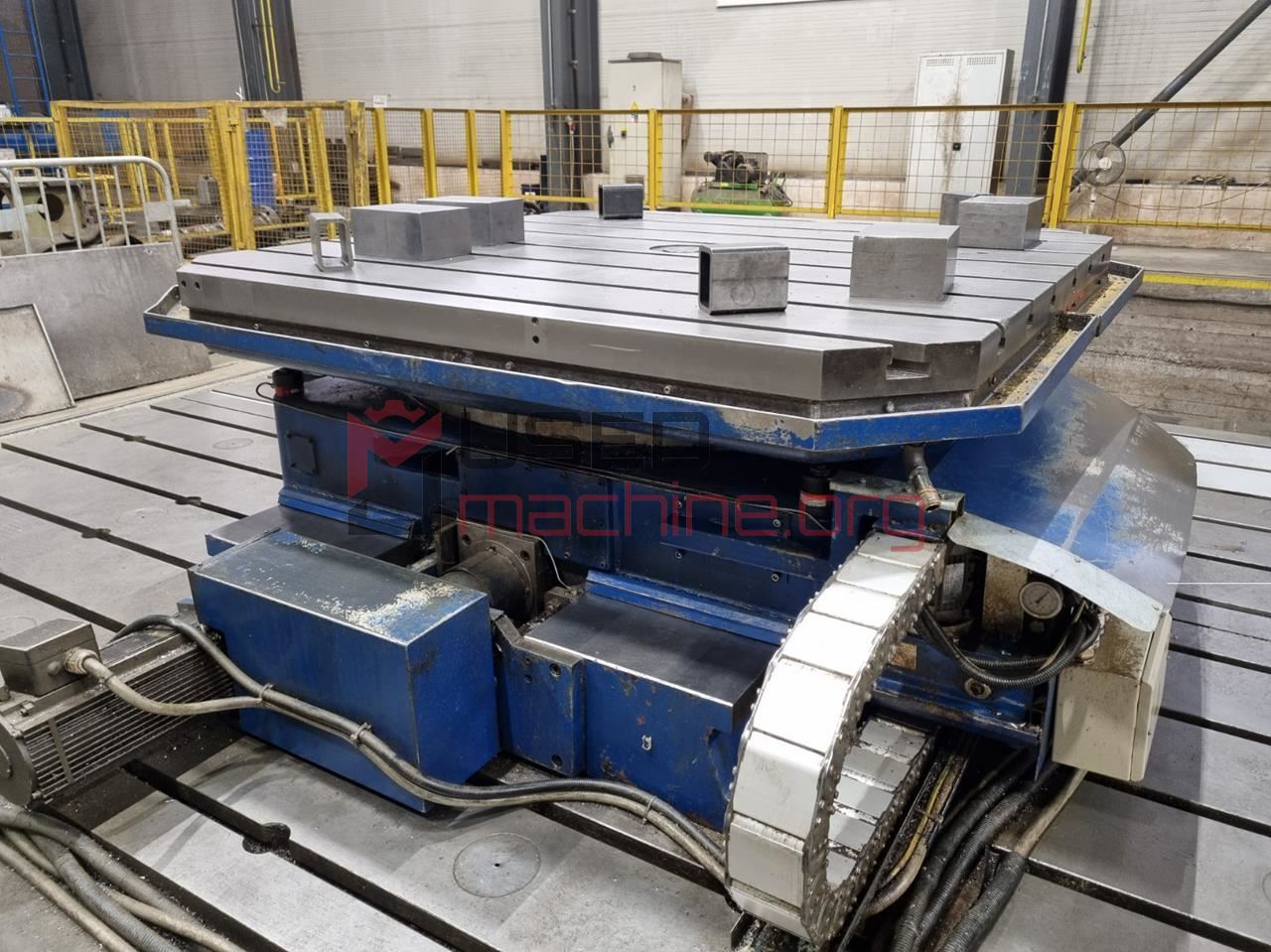

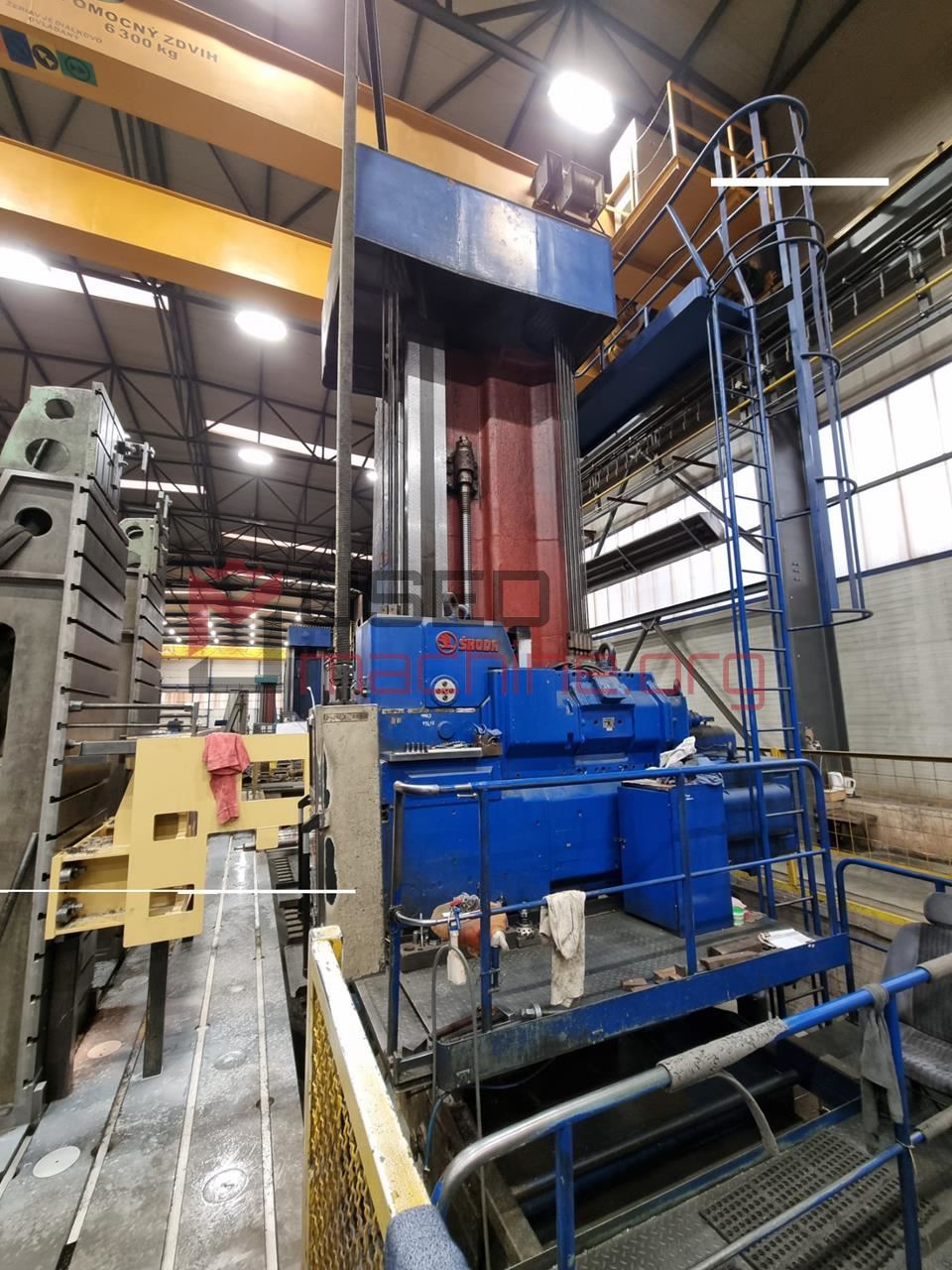

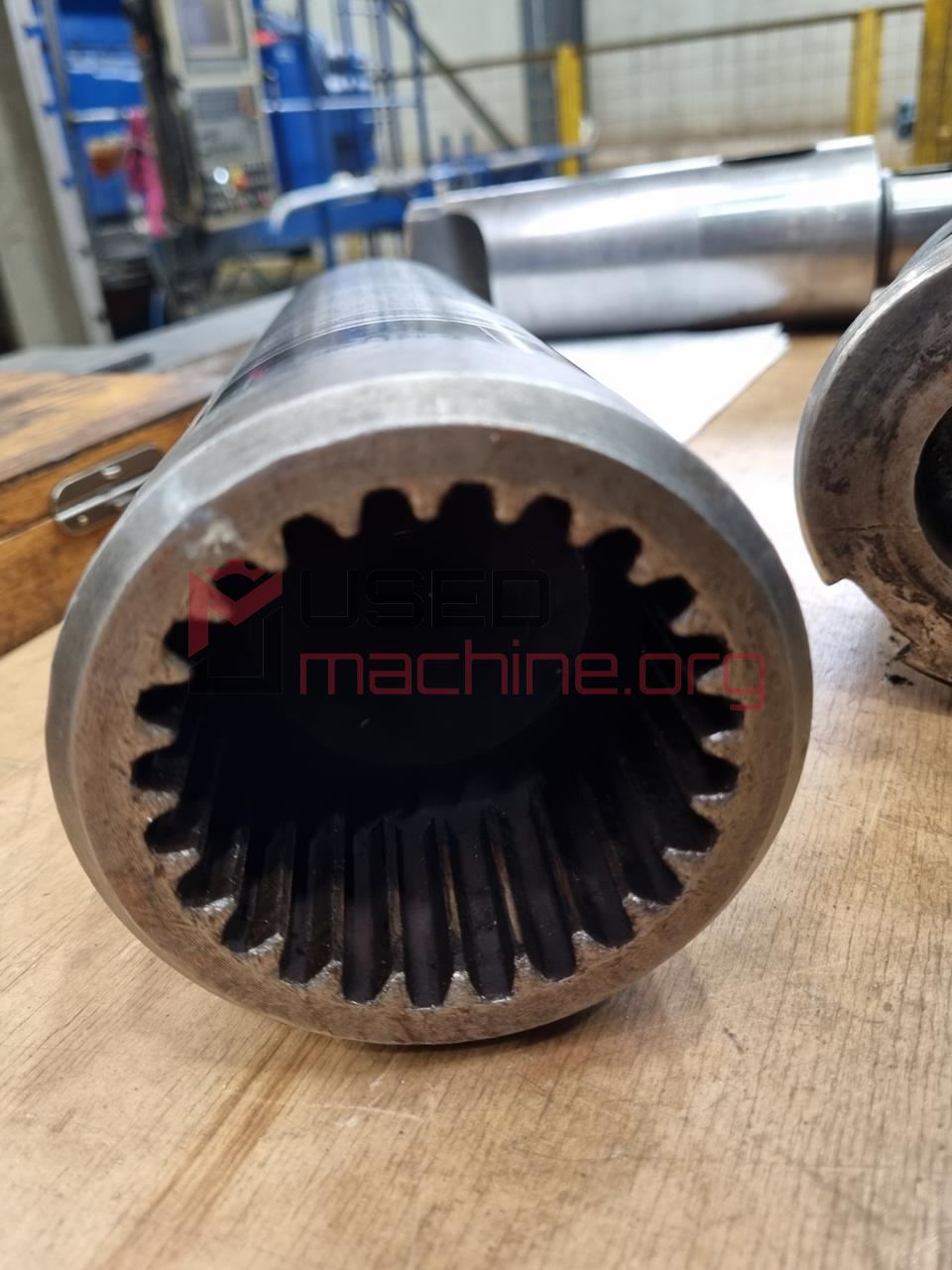

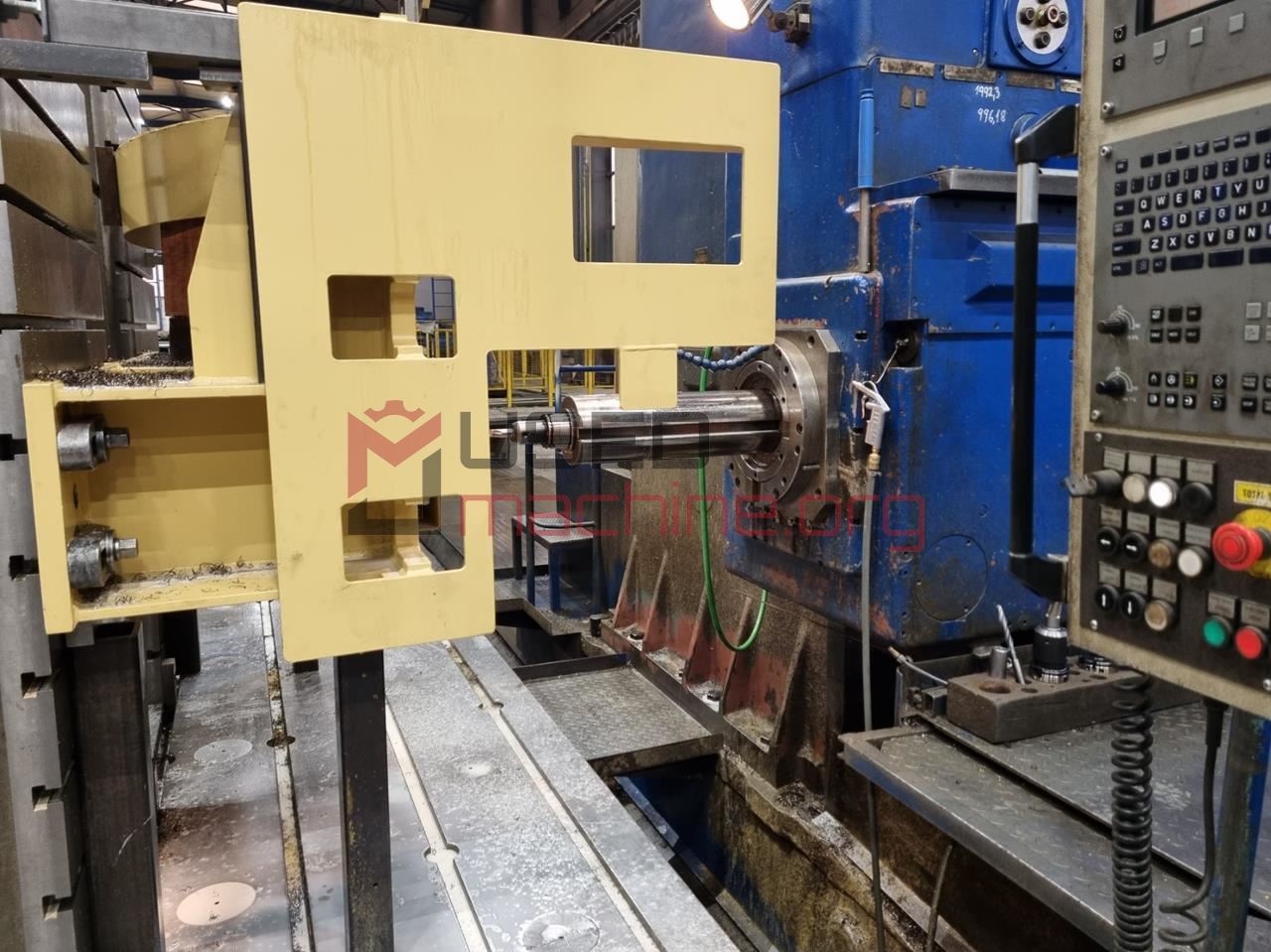

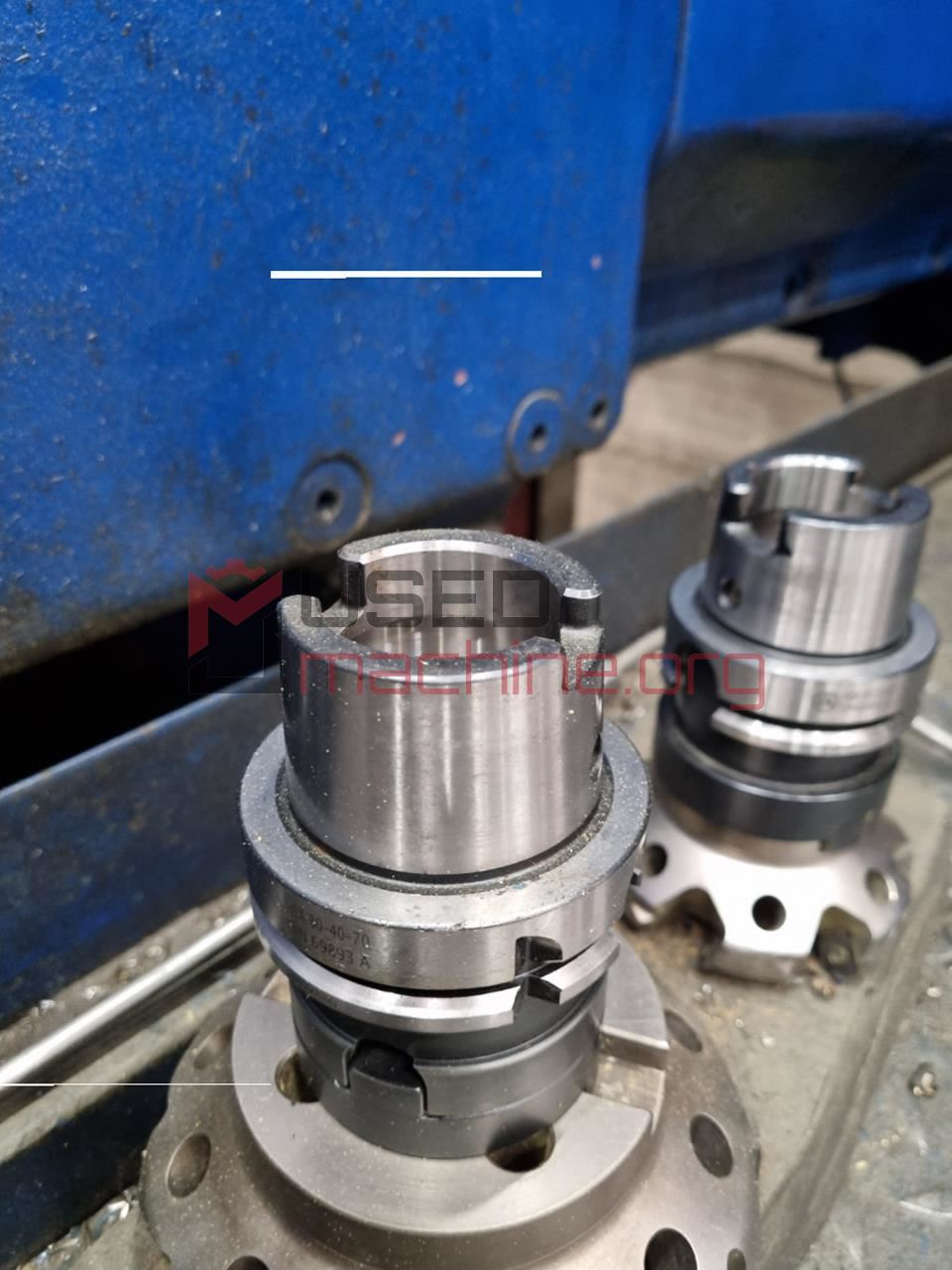

Table Boring Machine Škoda W 160 H

Year: 2022 Control system Siemens Sinumerik 840D Sl Max. diameter of grinding 500 mm Max. length of grinding 2000 mm Max. weight of workpiece 500 kg Main motor power 11 kW Machine dimensions l x w x h 7700 x 3100 x 2200 mm Machine weight 6800 kg Machine under the power, possible to be tested. Machine as a new one in great condition. Contact me for price and more information.

Year: 2022 Control system Siemens Sinumerik 840D Sl Max. diameter of grinding 500 mm Max. length of grinding 1000 mm Max. weight of workpiece 500 kg Device for internal grinding YES Main motor power 11 kW Machine dimensions l x w x h 4900 x 3100 x 2200 mm Machine weight 5800 kg Machine under the power, possible to be tested. Machine as a new one in great condition.

Year: 2013 Control system Heidenhain TNC 620 Dimensions of table working surface 908x480 mm Travel X-axis 500 mm Travel Y-axis 400 mm Travel Z-axis 400 mm Spindle speed 50 - 12000 /min. Spindle taper SK 30 . Tool magazine YES Number of positions in magazine 20 Main motor power 9,5 kW Machine weight 3000 kg Cooling through spindle NO Machine dimensions l x w x h 1700x1900x2500 mm The machine is in a good technical condition. Not under power.

Year: 2016 Control system Heidenhain TNC 530 Dimensions of table working surface 3000x1000 mm Travel X-axis 3000 mm Travel Y-axis 1250 mm Travel Z-axis 1500 mm Spindle taper ISO 50 . Spindle speed 20 - 6000 /min. Max. torque of spindle 1250 Nm Main motor power 30 kW Max. load of table 7500 kg Rapid feed 30 m/min Cooling through spindle YES Pressure of cooling 20 bar Tool magazine YES Number of positions in magazine 60 Machine weight 29300 kg Machine dimensions l x w x h 8780x6100x4600 mm The machine is in a very good technical condition, under power, possible to be tested.

Year: 2002 Control system Acramatic 2100 CNC Dimensions of table working surface 3700x800 mm Travel X-axis 3700 mm Spindle speed 0 - 5000 /min. Spindle taper SK 50 . The machine is in very good condition. Possible to test under power. Documentation is available. Holders.

Year: 2012 Control system Fanuc 32i - B Turn table diameter 20 mm Turning lenght 250 mm Sloping bed NO Y axis YES Counterspindle NO Spindle bore mm Milling head NO Driven Tools YES Number of tool positions (driven) 39/15 Bar loader YES Spindle speed 0 - 12000 /min. Machine weight 3300 kg Machine dimensions l x w x h 2100,0 × 1200,0 × 1900,0 mm number of axes: 6 linear + 2x C-axis Range of cylindrical rod diameters (min./max.) - 3-20 Work piece length: - fixed guide sleeve - 250 mm - motorized guide sleeve - 210 mm - without guide sleeve - 45 mm Power of the main spindle drive - 2.2 / 3.7 kW Spindle speed - 12,000 rpm. Counterspindle drive power - 1.5 / 2.2 kW Cross-section of the shank of turning tools - 16x16 mm Rotational speed of driven tools - 8,000 rpm. Drive power for tools driven on the front support - 0.75 kW Drive power for tools driven on the rear support - 1 kW Drive power of driven tools for processing the other side - 0.75 kW Oil pan capacity - 165 liters Oil pump powe

Year: 2015 Control system Mitsubishi M 70 V Turn table diameter 600 mm Turning lenght 3000 mm Sloping bed NO Y axis NO Counterspindle NO Spindle bore 104 mm Milling head NO Driven Tools YES Bar loader NO Swing over bed 600 mm Swing over cross slide 310 mm Travel Z-axis 2800 mm Axis C 0,001 ° Spindle speed 10 - 2500 /min. Turret head YES Machine weight 5150 kg Machine dimensions l x w x h 5840x1888x2050 mm The machine is in excelent condition. Possible to test under power.

Year: 2008 Control system Siemens Sinumerik 840 D Turn table diameter 400 mm Turning lenght 600 mm Sloping bed YES Y axis YES Travel Y-axis 64mm (+/- 32mm) mm Counterspindle YES Spindle bore 50 mm Milling head NO Driven Tools YES Number of tool positions (driven) 12 Bar loader YES Travel X-axis 160 mm X-axis rapid feed 60 m/min Swing over bed 400 mm Distance between centres 615 mm Spindle speed 0 - 6000 /min. Main motor power 16 kW Spindle taper VDI 30 . Machine weight 3 700 kg Very good technical condition. Possible to test it.

Year: 2013 Control system Fanuc 31i - B5 Turn table diameter 10 mm Turning lenght 100 mm Sloping bed YES Y axis YES Counterspindle YES Spindle bore 10 mm Milling head NO Driven Tools YES Bar loader YES Spindle speed 0 - 14000 /min. The machine is in excelent condition. Possible to test under power. Bar feeder LNS Tryton.

Year: 2015 Control system Mazatrol MATRIX 2 Turn table diameter 320 mm Turning lenght 180 mm Sloping bed NO Y axis NO Counterspindle YES Spindle bore 51 mm Milling head NO Driven Tools NO Bar loader NO Machine weight 7900 kg Machine dimensions l x w x h 3570x1795x2090 mm Swing over bed 320 mm Spindle speed 1 - 5000 /min. The machine is in a good technical condition. Under power. It can be tested.
