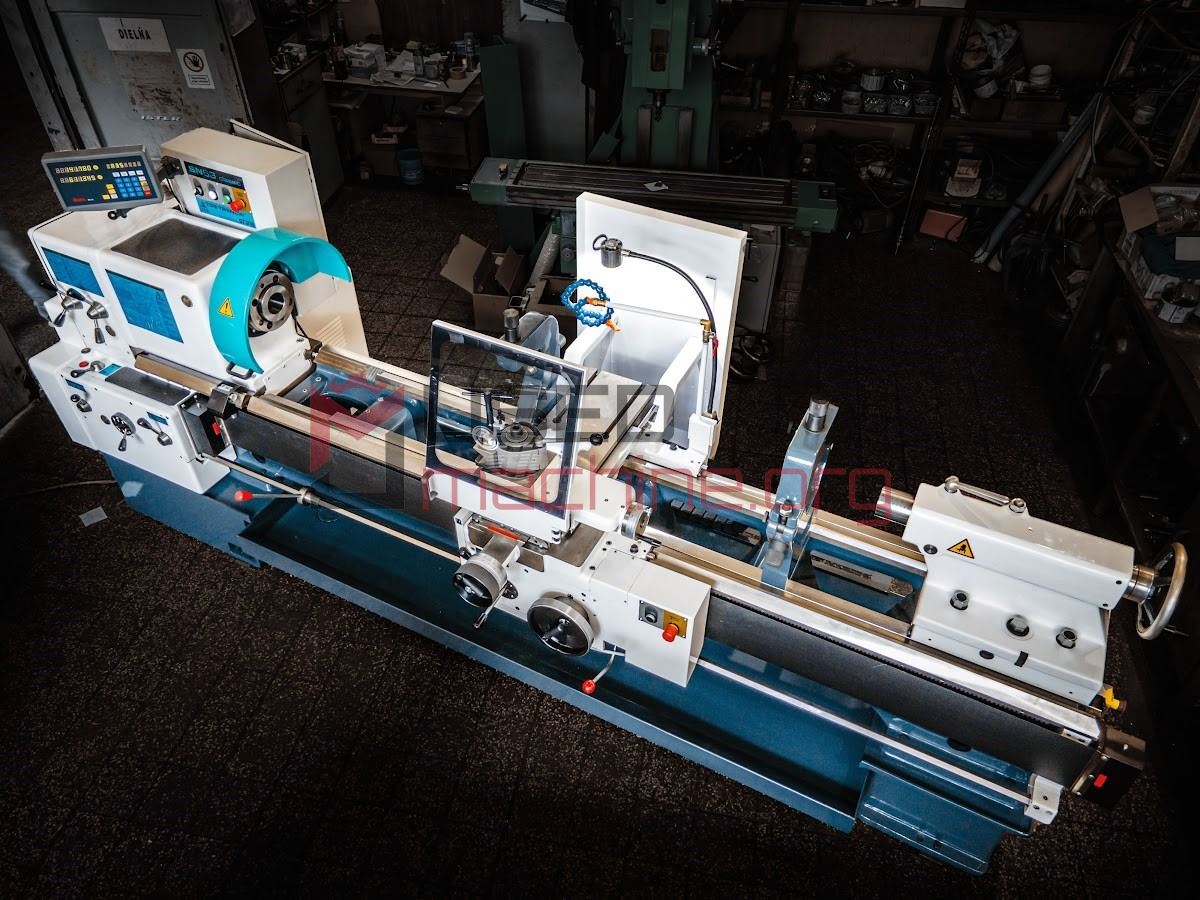

SN 71 B/2000 - lathes

Diameter of working spindle 100 mm Travel X-axis 1600 mm Travel Y-axis 1120 mm Spindle speed 0 - 1200 /min. Cooling through spindle NO Spindle travel - W axis 900 mm Travel Z-axis 1250 mm Tool magazine NO Spindle taper SK 50 . The machine is in very good condition, after part-overhaul. More information on request.

· Axis travels: X 1626 mm; Y 1270 mm; Z 813 mm · Rated power: 22.4 kW · 2-speed Gamma gearbox · Spindle taper: ISO 50 · Integrated 4th axis: diameter 762 mm · High-pressure pump for through-spindle coolant system · Chip conveyor with auger · Serial number: 2052693

Control system B & R PPC 900 Max. diameter of grinding 320 mm Max. length of grinding 2000 mm Max. weight of workpiece 500 kg Device for internal grinding NO Machine dimensions l x w x h 7700 x 2500 x 2500 mm Machine weight 8900 kg The machine is in perfect technical condition, plugged, and can be tested after agreement. Full covering, FX 7002 extraction, 2-jaw open lunette 110-175.

Control system Heidenhain TNC 530 Clamping area of table 2200x780 mm Travel X-axis 2030 mm Travel Y-axis 810 mm Travel Z-axis 810 mm Spindle speed 10 - 8000 /min. Number of driven axes 3 Cooling through spindle YES Pressure of cooling 70 bar Spindle taper HSK 100 . Main motor power 17/25 kW Max. torque of spindle 519/764 Nm Tool magazine YES Number of positions in magazine 24 Rapid feed 30 m/min Machine weight 14600 kg Machine dimensions l x w x h 4820x2440x3460 mm Video: https://www.youtube.com/watch?v=LR5h08lnmKs

Max. diameter of the cut material 200 mm Main motor power 2,2 kW Machine weight 170 kg The machine is in good technical condition, under power.

Max. drilling diameter 35 mm Spindle taper MK 4 . Spindle speed 75 - 2020 /min. Main motor power 2,2 kW Spindle travel - W axis 340 mm Table dimensions 540x440 mm Machine dimensions l x w x h 660x900x2230 mm Machine weight 615 kg The machine is in good technical condition, under power.

Max. diameter of grinding 60 mm Max. length of grinding 75 mm Machine weight 1445 kg The machine is in good technical condition, under power.

Turn table diameter 400 mm Turning lenght 760 mm Sloping bed NO Spindle bore 54 mm Turret head NO Swing over cross slide 215 mm Spindle speed 150 - 2500 /min. Machine dimensions l x w x h 2080x1000x1800 mm Machine weight 1250 kg The machine is in good technical condition, under power.

Year: 1994 Swing over bed 630 mm Distance between centres 2000 mm Max. weight of workpiece kg Swing over cross slide 340 mm Main motor power 7.5 kW Machine dimensions l x w x h 4000 x 1400 x 1520 mm Machine weight 2960 kg

Year: 1997 Control system Heidenhain TNC 426 Diameter of working spindle 130 mm Travel X-axis 3500 mm Travel Y-axis 2000 mm Spindle speed 0 - 1500 /min. Cooling through spindle NO Spindle travel - W axis 800 mm Travel Z-axis 1250 mm Tool magazine YES Number of positions in magazine 60 Spindle taper ISO 50 . Clamping area of table 1800 x 1600 mm Machine weight 35000 kg Main motor power 34 kW Max. load of table 12000 kg Machine under the power. Handwheel. Tool holders. Spindle support. Machine was running only for one shift!
