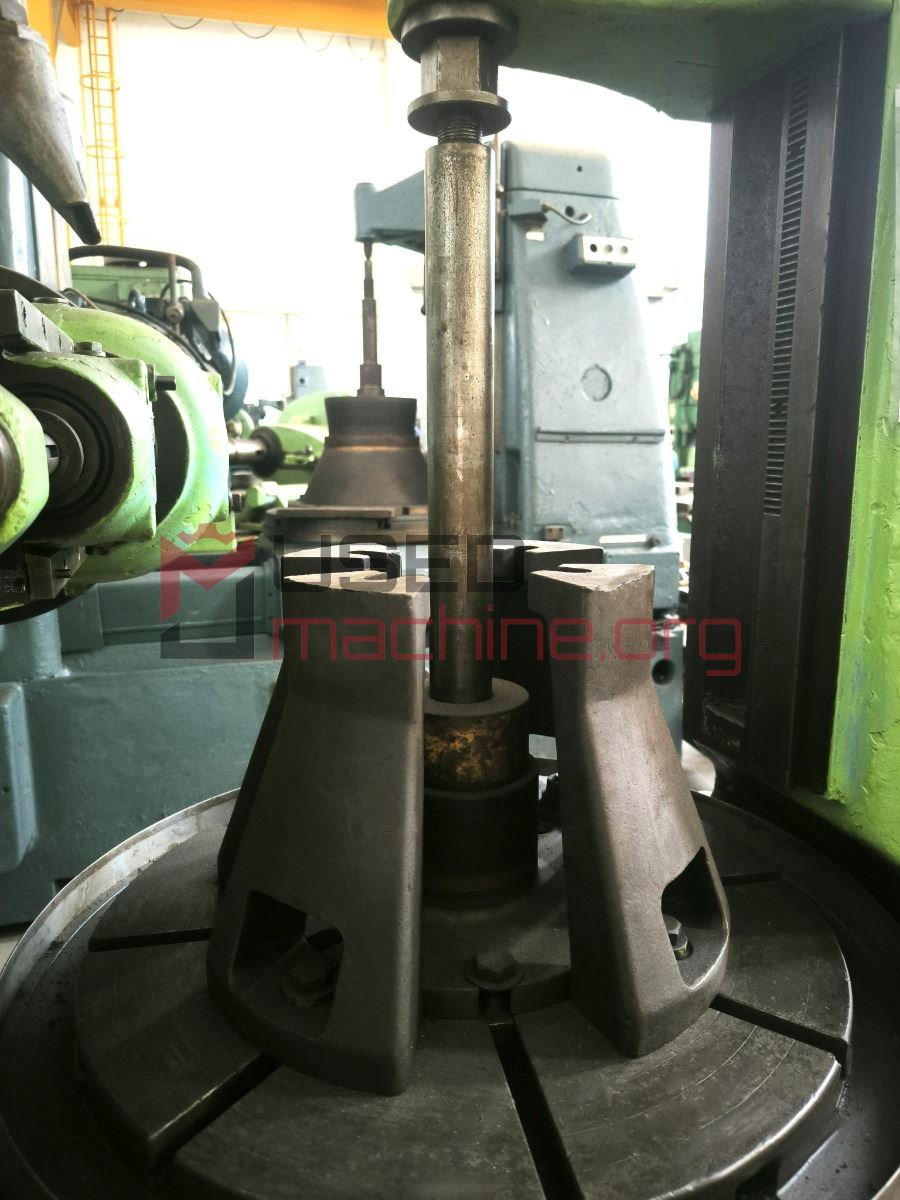

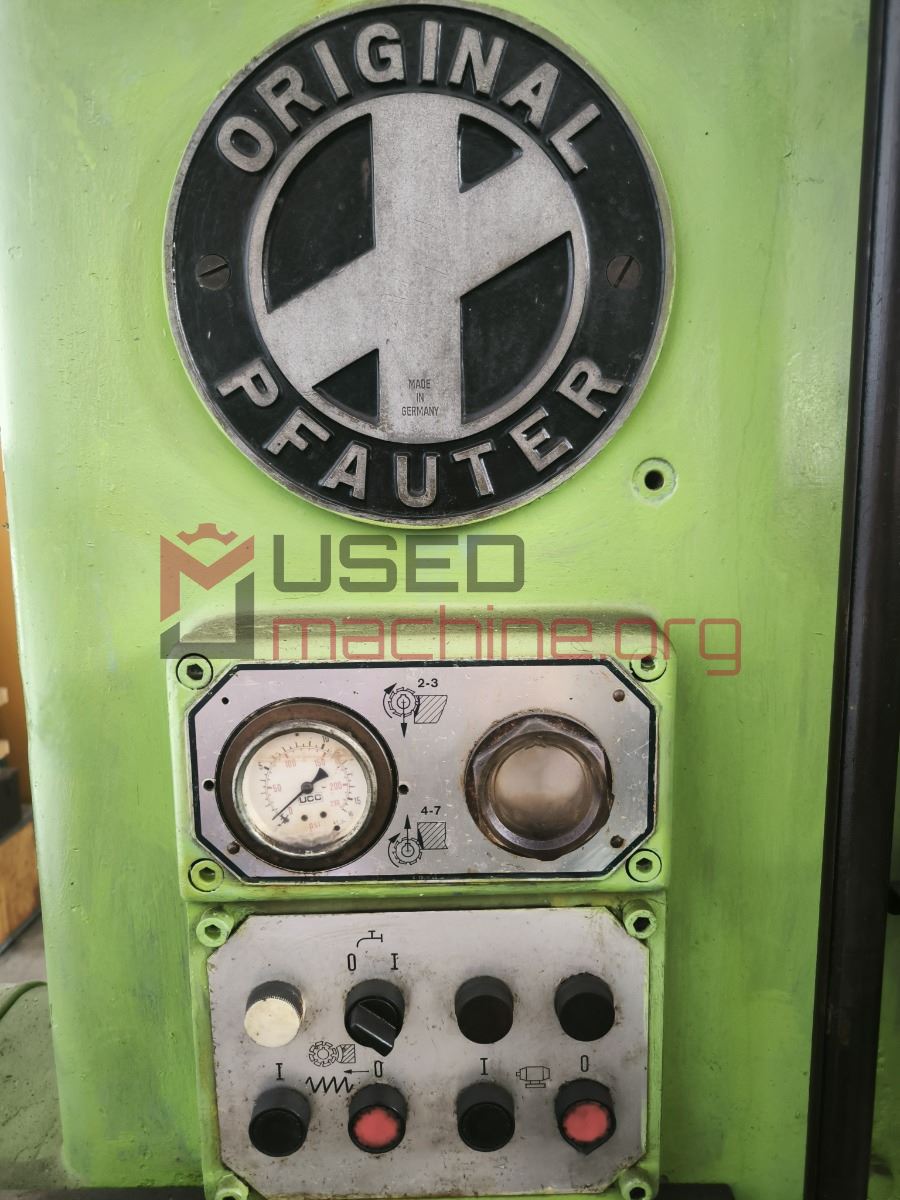

PFAUTER RS2V Vertical gear hobbing machine

Year: 1991 Diameter of working spindle 100 mm Travel X-axis 1600 mm Travel Y-axis 1120 mm Spindle speed 0 - 1200 /min. Cooling through spindle NO Spindle travel - W axis 900 mm Travel Z-axis 1250 mm Tool magazine NO Spindle taper ISO 50 . Clamping area of table 1250 x 1250 mm Max. load of table 3000 kg Main motor power 11 kW Machine dimensions l x w x h 6710 x 3450 x 3000 mm Machine weight 14 000 kg The machine is in very good technical condition, under power, and can be tested.

Year: 2010 Control system Fanuc 18i-TB Turn table diameter 20 mm Turning lenght 165 mm Sloping bed NO Y axis YES Counterspindle YES Spindle bore 31 mm Milling head NO Driven Tools YES Bar loader YES Spindle speed 0 - 8000 /min. Total input 6 kVA Machine weight 2550 kg Machine dimensions l x w x h 2200x1200x2000 mm The machine is in very good technical condition and can be tested. Accessories: LNS EXPRESS 220 feeder

Year: 2013 Control system Heidenhain TNC 530 Clamping area of table 630 mm Travel X-axis 650 mm Travel Y-axis 600 mm Travel Z-axis 500 mm Spindle speed 0 - 18000 /min. Number of driven axes 5 Cooling through spindle YES Pressure of cooling 80 bar Spindle taper HSK-A63 . Tool magazine YES Number of positions in magazine 32 Axis A +30/-115 ° Axis C 0,001 ° Machine weight 9500 kg The machine is in good technical condition, under power, after agreement is possible to test it. Accessories: tool and workpiece probe

year: 2026 Control system Siemens Sinumerik ONE Max. diameter of workpiece 1800 mm Clamping diameter of rotary table 1600 mm Max. load of table 12000 kg Max. workpiece height 1760 mm Ram travel (Z) 1000 mm Ram size 180x220 mm Driven Tools YES Number of tool positions (driven) 15 Tool magazine YES Number of positions in magazine 15 Axis C 360 ° Cooling through spindle YES Pressure of cooling 20 bar Main motor power 60 kW Rotations of clamping plate 2 - 200 /min Speed driven tools 8 - 3300 /min Power of driven tools 19,5 kW Machine weight 27200 kg Machine dimensions l x w x h 5700x7000x5900 mm Machine completely overhauled 2026. It can be tested under the power on Fermat stock. Full - way positioning C axis (boring, milling with continuous controllable worktop and driving tools). Full machine covering with CE declaration. 12 months warranty. Full machine documentation. Chip conveyor. Price does not include tools and cooling (option).

Diameter of working spindle 100 mm Travel X-axis 1600 mm Travel Y-axis 1120 mm Spindle speed 0 - 1120 /min. Cooling through spindle NO Spindle travel - W axis 900 mm Travel Z-axis 1250 mm Tool magazine NO Spindle taper ISO 50 . Clamping area of table 1250 x 1250 mm Main motor power 11 kW Max. weight of workpiece 3000 kg Total input 15 kVA Machine dimensions l x w x h 6710 x 3450 x 3000 mm Machine weight 14000 kg

Maximum Diameter of Gear Milling: 400mm Maximum Module can cut: 10MOD Speed Cutter: 2 The rounding of each tooth can be obtained in one or more cuts Minimum and Maximum speed: 1800-2100 Feed strokes of the worktable: 2 Minimum and Maximum stroke, per min: 15-20 Electric motor power: 1.5HP Weight of machine: 800k

Year: 2017 Control system OKUMA OSP-P300LA Turn table diameter 580 mm Turning lenght 950 mm Sloping bed YES Y axis NO Counterspindle NO Spindle bore 91 mm Milling head NO Driven Tools YES Number of tool positions (driven) 12/12 Bar loader NO Travel X-axis 260 mm Travel Z-axis 510 mm Spindle speed 0 - 5000 /min. Speed driven tools 45 - 6000 /min X-axis rapid feed 25 m/min Z-axis rapid feed 30 m/min Y-axis rapid feed 12,5 m/min Axis C 360 ° Main motor power 22 kW Machine dimensions l x w x h 3420 x 2041x 2444 mm Machine weight 6600 kg

Maximum diameter: 900 mmMax gear width: 500mmModule: 8/10Table diameter: 700 mmBore on table: 160 mmShifting: 200 mmHob turning speed: 60- 300 rpmSwivel head Dimensions: 5980 x 2915Weight: 8500 kg2 cut cyclesWith Crowning

Control system Fanuc 0i - TD Turn table diameter 500 mm Turning lenght 1090 mm Sloping bed YES Y axis NO Counterspindle NO Spindle bore 86 mm Milling head NO Driven Tools YES Number of tool positions (driven) 12/12 Bar loader NO Travel X-axis 300 mm Travel Z-axis 1200 mm Spindle speed 10 - 3500 /min. Axis C 0,001 ° Main motor power 15/18.5 kW Machine weight 6000 kg Machine dimensions l x w x h 4483x1800x1830 mm The machine is in very good technical condition and can be tested.

Year: 1995 Diameter of working spindle 100 mm Travel X-axis 1600 mm Travel Y-axis 1120 mm Spindle speed 0 - 1120 /min. Cooling through spindle NO Spindle travel - W axis 900 mm Travel Z-axis 1250 mm Tool magazine NO Spindle taper ISO 50 . Clamping area of table 1250 x 1250 mm Main motor power 11 kW Max. weight of workpiece 3000 kg Total input 15 kVA Machine dimensions l x w x h 6710 x 3450 x 3000 mm Machine weight 14000 kg
